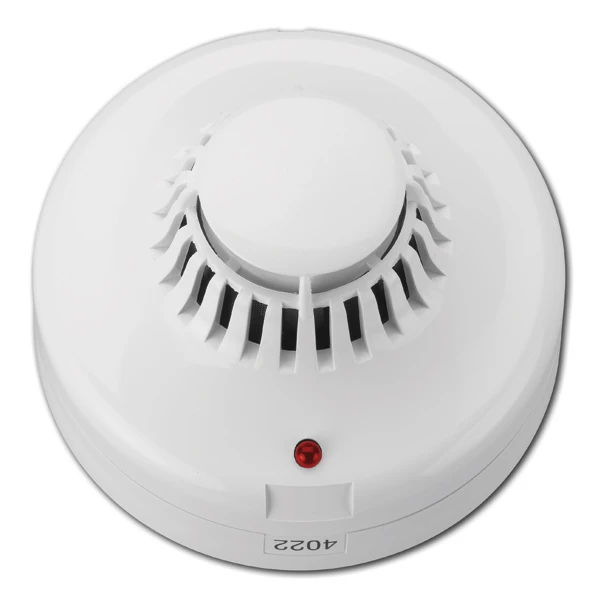

Ziton ZX832-3P Addressable Intelligent Multisensor | Polar White

The ZX832 is an addressable optical/heat multi criteria detector for Ziton ZP compatible fire alarm systems. The ZX832 multisensor represents the next generation of fire detectors giving an earlier warning of fire or smoke with the ability to discriminate against false alarms. Fuzzy logic software using multi-criteria sensing form the basis of this advanced optical and heat detector.

The detector consists of integrated high sensitivity smoke and thermal sensors. The system combines the dynamic results of rates of change patterns and absolute levels of smoke and heat, to identify real fire criteria. Selectable software algorithms allow the response to be matched to each particular hazard. Algorithms can change for day/night operation.

• Multi-criteria fire sensing

• Enhanced detection certainty

• Addressable - system knows the status and location of every sensor

• False alarm discrimination

• Fuzzy logic algorithms

• Miroprocessor based

• Smoke element complies with EN54 Part 7

• Heat element complies with EN54 Part 5 Class A1

• Requires a compatible ZP700 detector base for installation
