Apollo 55000-885APO | XP95 Addressable Optical/Heat Multisensor Detector

Name: Apollo 55000-885APO | XP95 Addressable Optical/Heat Multisensor Detector
Brand: Apollo
Price: 37.739999999999995 GBP
Availability: InStock

£37.74

INC VAT

Code: FDS400/001

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo XP95 range of devices can be used with any addressable system using Apollo protocol. The 55000-885APO multi-sensor detector contains an optical smoke sensor and a thermistor temperature sensor whose outputs are combined to give the final analogue value.

The XP95 Multisensor Detector combines optical smoke and temperature sensing for enhanced fire detection. By processing both signals, it improves accuracy, reducing false alarms while ensuring reliable early warning.

Ideal for environments like hotel bedrooms, it detects a wide range of fires and remains unaffected by wind or atmospheric pressure. Its dual-sensor design offers precise and intelligent fire monitoring in various conditions.

Apollo 55000-885APO
Sensitive to a wide range of fires
Well suited for environments such as hotel bedrooms
Unaffected by wind or atmospheric pressure
Base supplied separately

Warranty	10 years
Applications	Bedrooms, Hotels, Offices, Retail, Restaurants, Medium to Large Buildings
Fire Type	Fast and slow-burning fires
Heat Classification	A1R
Analogue Value (Nominal)	23
Analogue Value (- Tolerance)	0
Analogue Value (+ Tolerance)	4
Analogue Value Range	23 +4/-0
Chamber Type	Chevron
Colour	White
Sensor Configuration	Horizontal optical bench housing infrared emitter and sensor, arranged radially to detect forward-scattered light.
Weight	105g
Housing Material	Polycarbonate
Terminal Material	Nickel-plated stainless steel
Dimensions (Diameter x Height)	100mm x 50mm (3.94in x 1.97in)
Detection Principle	Photoelectric light scattering
Standards	EN 54-7
Approvals	BOSEC, KRS, SBSC, VdS, LPCB, CPR, UL
Protocol Voltage	5 to 9V peak-to-peak
Protocol Voltage (Max)	9V
Protocol Voltage (Min)	5V
Power-up Surge Current	1mA
Maximum Power-up Time	10 seconds
Quiescent Current	500μA
Supply Voltage Range	17 to 28V DC
Terminal Functions (+R)	Remote indicator positive connection
Terminal Functions (-R)	Remote indicator negative connection
Polarity	L1 & L2 are polarity insensitive
Humidity Range	0% to 95% RH (no condensation or icing)
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
IP Rating	IP44
Storage Temperature	-30°C to 80°C (-22°F to 176°F)

Apollo 55000-885APO | XP95 Addressable Optical/Heat Multisensor Detector Data Sheet

Click here to download

Overview

Features

Technical Data

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Manufacturer's Training

Book your manufacturer training with Fire Detection Shop today

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Apollo 55000-885APO | XP95 Addressable Optical/Heat Multisensor Detector

£37.74

Apollo 55000-600APO | XP95 Addressable Optical Smoke Detector

£26.30

Apollo 45681-284APO | XP95 Addressable Isolator Base with XPERT Card

£7.60

Apollo 45681-210APO | XP95/Discovery Addressable Detector Base with XPERT Card

£1.95

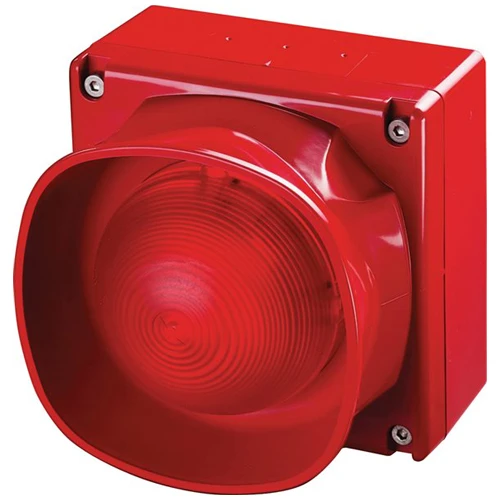

Apollo 55000-298APO | XP95 Addressable Multi-Tone IP66 Open-Area Sounder Beacon | Red Flash

£131.90

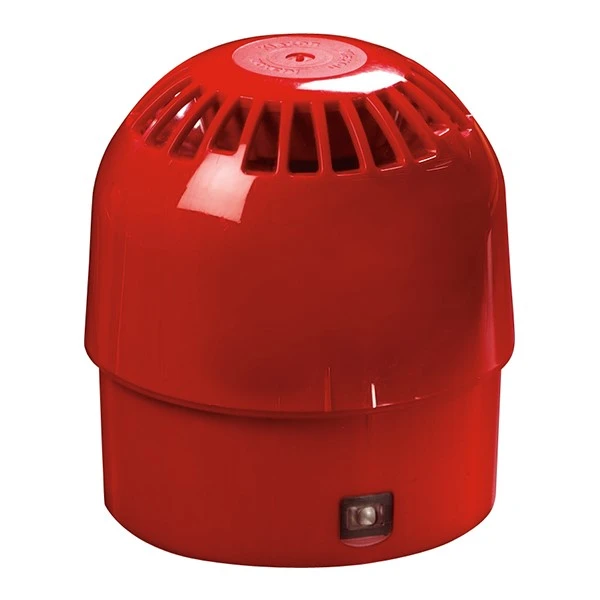

Apollo 55000-001APO | XP95 Addressable Intelligent Open Area Sounder
