Gent Vigilon Plus Addressable Fire Panel

Name: Gent Vigilon Plus Addressable Fire Panel
Brand: Gent
SKU: FDS600/083
Price: 2523.06 GBP
Availability: InStock

Code: FDS600/083

£2,523.06

INC VAT

Code: FDS600/083

Model

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

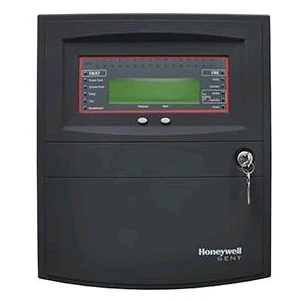

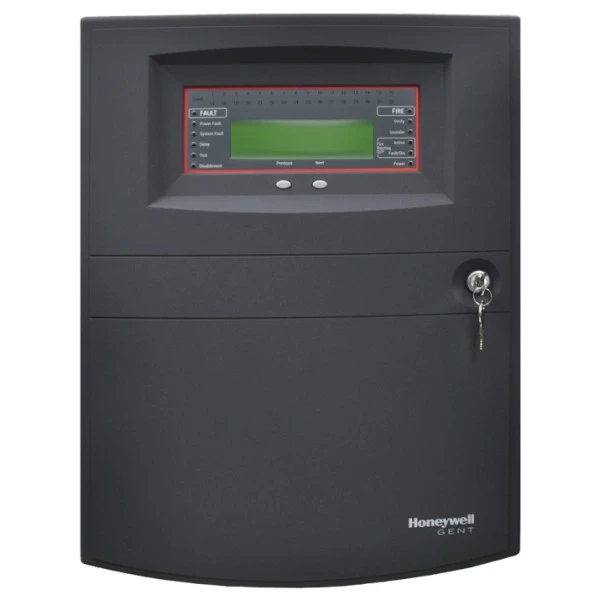

The Gent Vigilon Plus addressable fire panel is available in 4-loop and 6-loop variants, fully complying with EN54 parts 2 and 4. It can be specified with 1 to 6 detection loops, providing scalable fire detection for a wide range of commercial applications.

Gent Vigilon Plus offers the familiar advantages of combined sensor-sounders and loop-powered beam detection, with integral short-circuit isolators fitted into every loop device. The panel is fully compatible with Gent's innovative S-Quad multi-sensor technology, which combines speech, sounder, and strobe in one device.

Designed to work seamlessly with Gent's S-Cubed alarm devices, the system delivers loop-powered sound, speech, and strobe effects in combination, ensuring rapid and effective fire alarm signalling.

4-Loop Panel (VIGPLUS-24) – Supplied with 1 loop card, expandable up to 4 loops
6-Loop Panel (VIGPLUS-26) – Supplied with 2 loop cards, expandable up to 6 loops
Integral EN54-4 power supply unit (PSU) with 24-hour battery standby (upgradable to 72-hour standby)
Batteries not included
200 device loop capacity per loop
800mA loop current
Dimensions: 406mm x 403mm x 101mm
Weight: 22kg (including batteries)

Specification	Vigilon Plus 4 Loop Panel	Vigilon Plus 6 Loop Panel
Max. no. of loops	4	6
Loop capacity	200 devices per loop with an alarm current of up to 800mA (equivalent to 100 sensor sounders/VADs)	200 devices per loop with an alarm current of up to 800mA (equivalent to 100 sensor sounders/VADs)
Batteries	2 x 21Ah	4 or 8 x 21Ah
Battery standby	24 hours + 30 minutes in alarm (upgradeable to 72 hours)	72 hours + 30 minutes in alarm
Approx. weight	22 kg (inc batteries)	10.2 kg (panel only) / 31 kg (battery enclosure inc four batteries)
Operating temp.	0 - 45ºC	0 - 45ºC
Cable entry	top and rear knock-ins	top and rear knock-ins
Approvals	EN54 parts 2 & 4	EN54 parts 2 & 4

Gent Vigilon Plus Addressable Fire Panel Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Vigilon Plus 4 Loop Panel	Vigilon Plus 6 Loop Panel
Max. no. of loops	4	6
Loop capacity	200 devices per loop with an alarm current of up to 800mA (equivalent to 100 sensor sounders/VADs)	200 devices per loop with an alarm current of up to 800mA (equivalent to 100 sensor sounders/VADs)
Batteries	2 x 21Ah	4 or 8 x 21Ah
Battery standby	24 hours + 30 minutes in alarm (upgradeable to 72 hours)	72 hours + 30 minutes in alarm
Approx. weight	22 kg (inc batteries)	10.2 kg (panel only) / 31 kg (battery enclosure inc four batteries)
Operating temp.	0 - 45ºC	0 - 45ºC
Cable entry	top and rear knock-ins	top and rear knock-ins
Approvals	EN54 parts 2 & 4	EN54 parts 2 & 4
