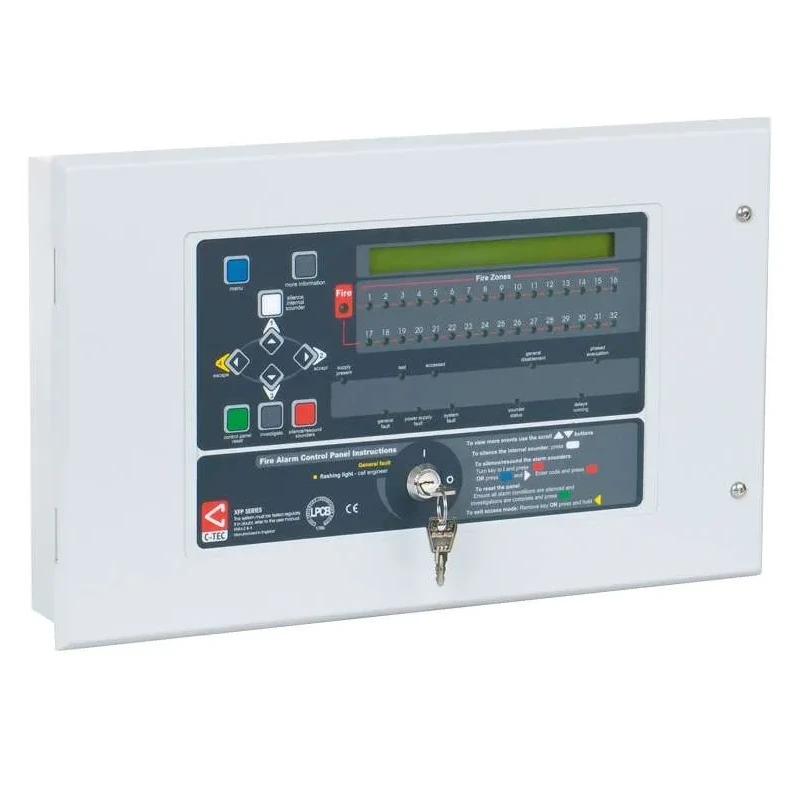

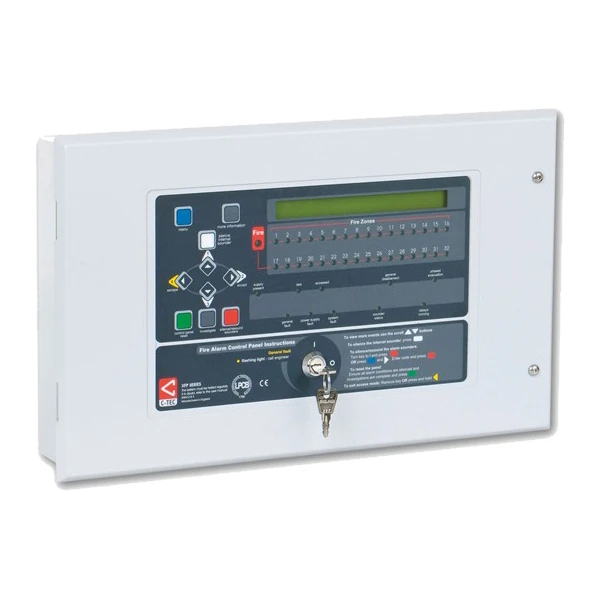

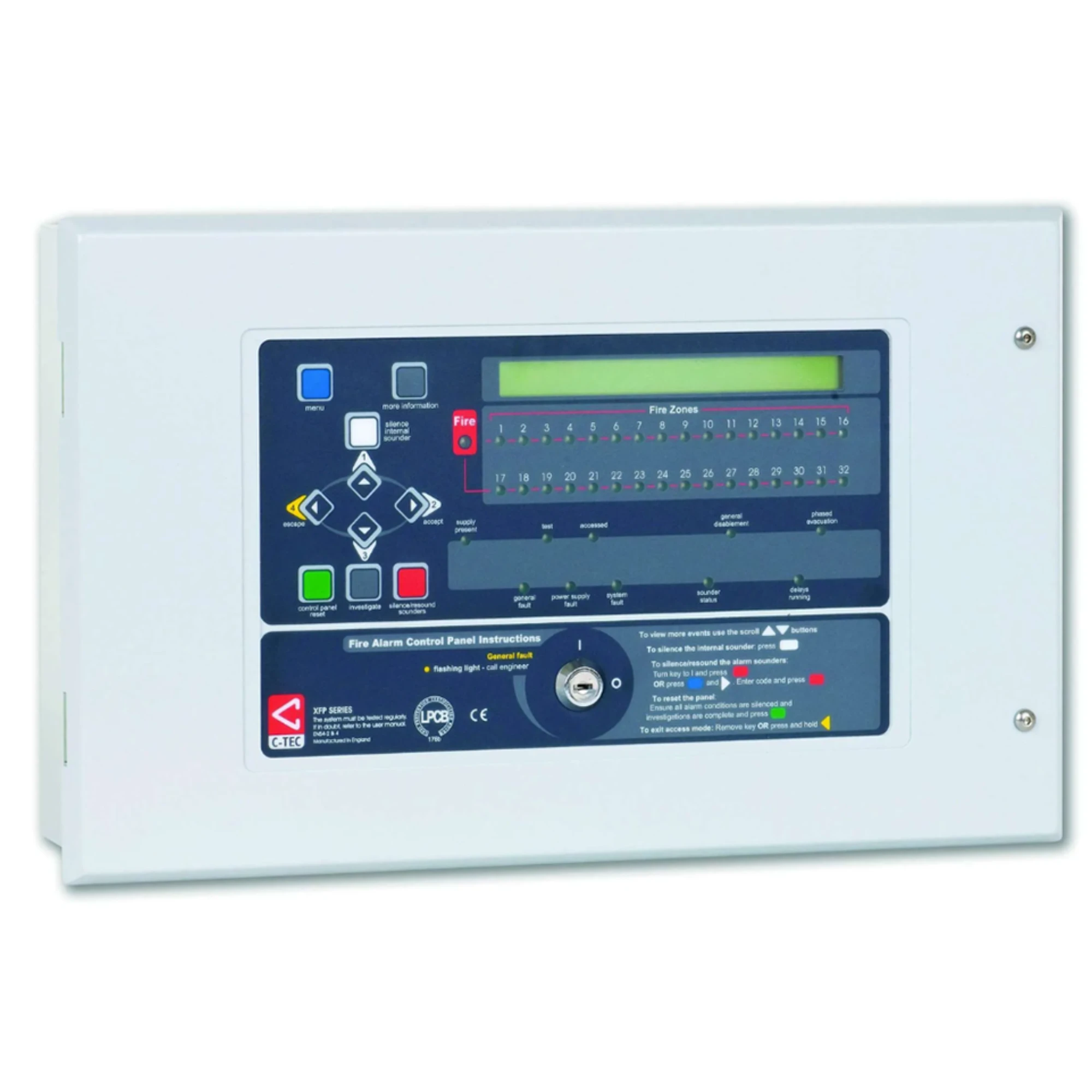

C-TEC XFP501 | 32 Zone Single Loop Addressable Fire Alarm Panel

Name: C-TEC XFP501 | 32 Zone Single Loop Addressable Fire Alarm Panel
Brand: C-tec
SKU: FDS900/067
Price: 583.32 GBP
Availability: InStock

£583.32

INC VAT

Code: FDS900/067

Protocol

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC XFP501/X and XFP501/H range of 32 zone single loop addressable fire alarm panels offer high performance at a competitive price.

Simple to configure using the free to download software, each XFP panel is network connectable up to 8 panels or repeaters, making the range ideal for use in larger applications such as office blocks, shopping complexes and industrial sites as well as the traditional smaller, stand-alone applications.

Combined keypad / key switch entry to Access Levels 2 and 3
Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB)
Two programmable conventional sounder circuits
Two programmable inputs
Fault output relay and three programmable relay outputs with voltage free changeover contacts

Choose the correct protocol from the selection box above or see our complete system builder tools

Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB)
Full compatibility with Hochiki ESP and Apollos XP95/Discovery protocols (dependent on model purchased).
Two independently programmable conventional sounder circuits
Two programmable inputs
Fault output relay and three programmable relay outputs with voltage free changeover contacts
Selection of zone dependency/coincidence functions
Day/night (building occupied/unoccupied) function
Investigation delay period function
Phased evacuation facility
Alarm counter that records how many times the panel has been in alarm state
Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10ma Sounders per loop
Integral EN54-4/A2 switch mode psu
two-wire RS485 network
Adjustable contamination levels
Earth fault monitoring Combined keypad / key switch entry to Access Levels 2 and 3
999 event log
An intuitive Windows based upload-download PC program
Optional flush-mounting stainless steel enclosures

Feature	Details
Approvals/Certifications	Certified to EN54-2 & 4 by the LPCB.
Protocol/Compatibility	Apollo XP95/Discovery. Hochiki ESP
Mains Supply	230V 50/60Hz.
Mains Rated Current	680mA maximum.
Internal Power Supply	27Vdc nominal.
Total Output Current	Limited to 3A @ 230Vac (Imax.A 250mA; Imin. 70mA).
Quiescent Current	80mA (loop unloaded).
Max Battery Size and Type	2 x 12V 7Ah VRLA connected in series.
No. of Loop Drivers	1
Max. Loop Output Current	500mA (25V min; 34V max).
Max. Loop Length	1KM.
Max. Addressable Devices	126 per loop
Conventional Sounder Circuits	2 (Max. length per circuit is 500m).
EOL Resistor Value	6800Ω 5% Tol. 0/25W (blue, grey, red, gold).
Max. Sounder Output Current	400mA.
Auxiliary Relays	3 x Programmable Relays (programmable from C&Es). 1 x Fault Relay (active when no faults are present). Volt-free single pole changeover. Max. switch current 1A; Max. switch voltage 30Vdc.
Other Outputs	24V Aux. Power (19.5V min, 28V max). Protected by a resettable fuse. Max. current 100mA.
Auxiliary Inputs	2 x Programmable Inputs (programmable from C&Es). Connect to 0V to trigger, Max. input voltage 27V (non-latching).
PC Connection	PC connection via RS232 molex connector (supplied in XFP507 upload/download software kit); No printer connection available.
Indicators	2 line x 40 character backlit display; 32 Zonal LEDs, General Fire; Energised; Pre-Alarm; Remote Output Activated; Remote Output Disabled; Accessed; Disablement; Test; Silenced; General Fault; System
Connections	Fixed, largest acceptable conductor size 1mm².
Expansion Connections	2-wire RS485 non-redundant network/repeater connection available via optional AFP711 network card. Max. 8 mains per network or 8 repeaters per non-networked main. Limit 1KM (main panel network) or repeater connection.
Product Dimensions (mm)	410 W x 250 H x 80 D mm (base); 439 W x 274 H x 7 D mm (lid).
Construction & Finish	Metal.
IP Rating	IP30.
Weight	4.5kg (no batteries).
Operating Conditions/Temperature	-5ºC to +40ºC. Max relative humidity: 95%.

C-TEC XFP501 - 32 Zone Single Loop Addressable Fire Alarm Panel Data Sheet	Click here to download
C-TEC XFP501 - 32 Zone Single Loop Addressable Fire Alarm Panel Quick Start Guide	Click here to download
C-TEC XFP501 - 32 Zone Single Loop Addressable Fire Alarm Panel Engineer Manual	Click here to download
C-TEC XFP501 - 32 Zone Single Loop Addressable Fire Alarm Panel User Guide	Click here to download
