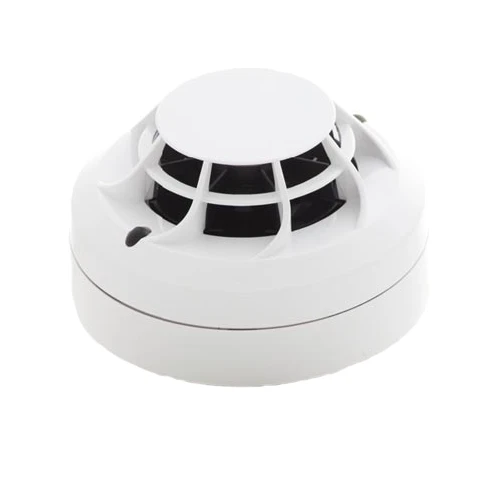

FireSmart Addressable Multi-Sensor Detector & Base

The FireSmart Addressable Multi-Sensor Detector is a dual-sensor, multi-criteria fire detector that combines photoelectric smoke detection with thermal sensing to deliver enhanced fire detection performance and superior false alarm immunity.

By using thermal assistance to support the core photoelectric detection, this device offers a faster response to a wide range of fire types, including slow-smouldering and fast-flaming fires. Both sensing elements are monitored and processed by embedded software, allowing them to operate together seamlessly as a single intelligent unit.

Fitted with two integral tri-colour LEDs, the detector provides a 360° local visual status indication, which can be programmed to show static or blinking red, amber, or green signals, offering clear and immediate feedback for installers and building occupants.

This detector meets WEEE and RoHS compliance, helping to reduce end-of-life disposal costs and supporting environmentally responsible system design. It’s an ideal choice for addressable systems where reliability, performance, and ease of maintenance are essential.

• Compatible with FireSmart Addressable Plus control panels

• Two sensor multi-criteria fire detector incorperating photoelectric and thermal sensing elements

• Improved detection across multiple fire types

• Conforms to EN54-5 (heat/rate of rise) and EN54-7 (smoke detection)

• Tri-colour LED

• Modern pure white colour

• Base included

• Width: 102mm Depth: 52mm
