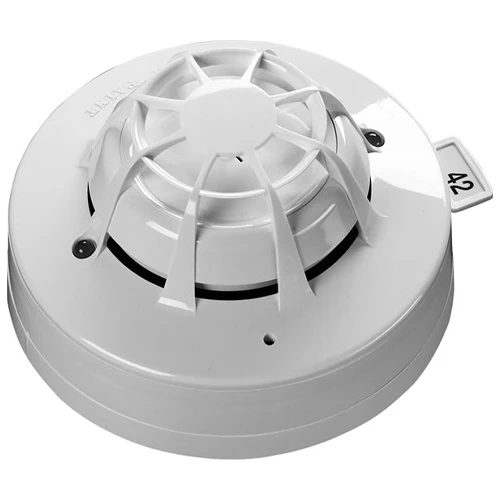

The Apollo Discovery Multisensor Detector (58000-700APO) comprises optical smoke and thermistor temperature sensors which give both a combined signal as well as a separate heat signal for improved false alarm management.
The Discovery Optical/Heat Multisensor Detector combines heat and smoke detection with five selectable response modes, offering flexibility for various applications.
Mode 1: High sensitivity to both smoke and heat, ideal for flaming and smouldering fires.
Mode 2: Similar to a standard optical smoke detector, suitable for environments with normal temperature changes.
Mode 3: Moderate sensitivity to both smoke and heat, optimal for general applications.
Mode 4: Lower smoke sensitivity combined with high heat sensitivity, suitable for environments with expected fumes or smoke.
Mode 5: No smoke sensitivity, pure heat detection with a fixed temperature alarm threshold of 58°C, meeting Class A1R detector requirements.
The detector processes heat and smoke signals independently, with modes 1, 3, and 4 combining both. In modes 2 and 5, it focuses on smoke or heat detection. In modes 1, 3, and 4, temperature signal processing detects only rate-of-rise information, ignoring slow temperature increases.
The detector is connected to a two-wire loop circuit with a 17V to 28V DC supply, and a remote LED indicator can be added.
Apollo 58000-700APO
Ideal for a wide range of applications
Enhanced false alarm management
Recommended, in specific modes, for hotel bedrooms and hospital wards
Unaffected by wind or atmospheric pressure
Well suited for sensitive environments
Five response models
Heat only and optical only options
Remote test feature
Please note that all bases sold separately
Category | Specification |
---|---|
Model | Apollo 58000-700APO |
Warranty | 10 year |
Applications | Accommodation decks, passages, escape routes |
Fire Type | Slow burning, smouldering fires |
Mechanical | |
Colour | White |
Sensor Configuration | Exposed heat sensing thermistor |
Weight | 105g |
Materials Housing | Polycarbonate |
Materials Terminals | Nickel plated stainless steel |
Product Length | 42mm (1.65in) |
Product Diameter | 100mm (3.94in) |
Detection Principle | Photo-electric light scattering, Temperature-sensitive resistance |
Chamber Configuration | Horizontal optical bench housing infra-red emitter and sensor |
Sensor | Silicon PIN photo-diode |
Emitter | GaAIAs infra-red light emitting diode |
Electrical | |
Supply Voltage | 17 - 28 V dc |
Modulation Voltage | 5 – 9 V peak to peak |
Protocol | Discovery (XP95 and CoreProtocol compatible) |
Quiescent Current | 400 µA |
Power-up Surge Current | 1 mA |
Maximum Power-up Time | 10 seconds |
Alarm Current (LED illuminated) | 3.5 mA |
Remote Output Characteristics | Connects to a positive line through 4.5 kΩ (5 mA maximum) |
Remote Indicator | +R (Remote positive connection), -R (Remote negative connection) |
Alarm Indicator | Two white diffused LEDs (illuminated red in alarm), optional remote LED |
Environmental | |
Operating Temperature | -40°C to +70°C |
Storage Temperature | -40°C to +80°C |
Humidity | 0% to 95% RH (no condensation or icing) |
Effect of Temperature on Optical Sensor | Less than 15% change in sensitivity over rated change. Drift compensation automatically adjusts sensitivity. |
Effect of Wind Speed on Optical Sensor | None |
Vibration, Impact and Shock | EN 54-7 |
IP Rating | IP44 |
Standards & Approvals | |
Standards | EN 54-5, EN 54-7 |
Approvals | CPR, LPCB, VdS, BOSEC, SBSC, FG, CCMG, Kazakhstan |
Dimensions & Weight | |
Dimensions | 100 mm diameter x 50 mm height |
Weight | 105 g |
