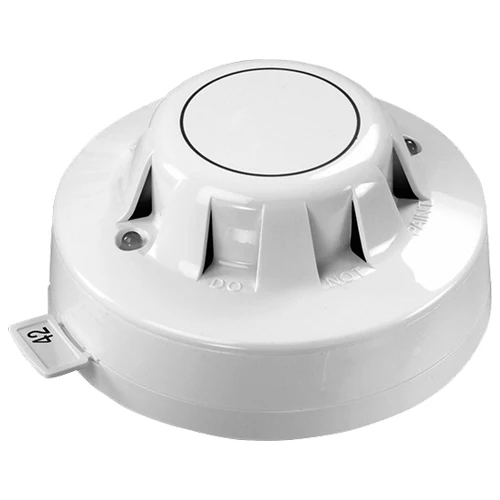

Apollo 58000-600APO | Discovery Addressable Optical Smoke Detector

Name: Apollo 58000-600APO | Discovery Addressable Optical Smoke Detector
Brand: Apollo
Price: 40.62 GBP
Availability: InStock

Code: FDS400/024

£40.62

INC VAT

Code: FDS400/024

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo Discovery Optical Smoke Detector (58000-600APO) is a high-performance device designed to provide rapid and reliable fire detection through the light scatter principle.

It is specifically engineered to manage false alarms effectively while ensuring swift response to potential fire hazards.

Apollo 58000-600APO
Responds well to slow-burning smouldering fires
Well suited for bedrooms and escape routes
Unaffected by wind or atmospheric pressure
Five response modes
Remote test feature
Please note that all bases sold separately

Category	Specification
Model	Apollo 58000-600APO
Warranty	10 year
Applications	Bedrooms, Escape routes, Hospitals, Hotels, Offices, University campuses, Medium to large buildings, Restaurants, Cafes, Care homes, HMOs, Listed buildings, Retail, Small to medium buildings, Warehouses
Fire Type	Slow burning, smouldering fires
Mechanical
Colour	White
Sensor configuration	Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light
Weight	105g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	42mm (1.65in)
Product diameter	100mm (3.94in)
Detection principle	Photo-electric light scattering
Conformance
Standards	EN 54-7
Approvals	SBSC, BOSEC, FG, VdS, LPCB, CPR
Performance
Analogue value nominal	23
Analogue value (- tolerance)	0
Analogue value (+ tolerance)	4
Analogue value	23 +4/-0
Alarm level analogue value	55
Chamber type	Chevron
Electrical
Protocol voltage	5 to 9V peak to peak
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Power-up surge current	1mA
Status indicator - Alarm	Red
Quiescent current	440μA
Quiescent current tested at	24V dc
Supply voltage (max)	28V dc
Supply voltage (min)	17V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity insensitive
Sampling frequency	Once per second
Environmental
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Operating Temperature
Operating temperature	-40 to 70°C (-40 to 158°F)
Operating temperature (max)	70°C (158°F)
Operating temperature (min)	-40°C (-40°F)

Apollo 58000-600APO | Discovery Addressable Optical Smoke Detector Data Sheet

Click here to download

Overview

Features

Technical Data

Category	Specification
Model	Apollo 58000-600APO
Warranty	10 year
Applications	Bedrooms, Escape routes, Hospitals, Hotels, Offices, University campuses, Medium to large buildings, Restaurants, Cafes, Care homes, HMOs, Listed buildings, Retail, Small to medium buildings, Warehouses
Fire Type	Slow burning, smouldering fires
Mechanical
Colour	White
Sensor configuration	Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light
Weight	105g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	42mm (1.65in)
Product diameter	100mm (3.94in)
Detection principle	Photo-electric light scattering
Conformance
Standards	EN 54-7
Approvals	SBSC, BOSEC, FG, VdS, LPCB, CPR
Performance
Analogue value nominal	23
Analogue value (- tolerance)	0
Analogue value (+ tolerance)	4
Analogue value	23 +4/-0
Alarm level analogue value	55
Chamber type	Chevron
Electrical
Protocol voltage	5 to 9V peak to peak
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Power-up surge current	1mA
Status indicator - Alarm	Red
Quiescent current	440μA
Quiescent current tested at	24V dc
Supply voltage (max)	28V dc
Supply voltage (min)	17V dc
Supply voltage (Vmin-Vmax)	17 to 28V dc
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity insensitive
Sampling frequency	Once per second
Environmental
Humidity (max)	95% RH
Humidity (min)	0% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
Operating Temperature
Operating temperature	-40 to 70°C (-40 to 158°F)
Operating temperature (max)	70°C (158°F)
Operating temperature (min)	-40°C (-40°F)
