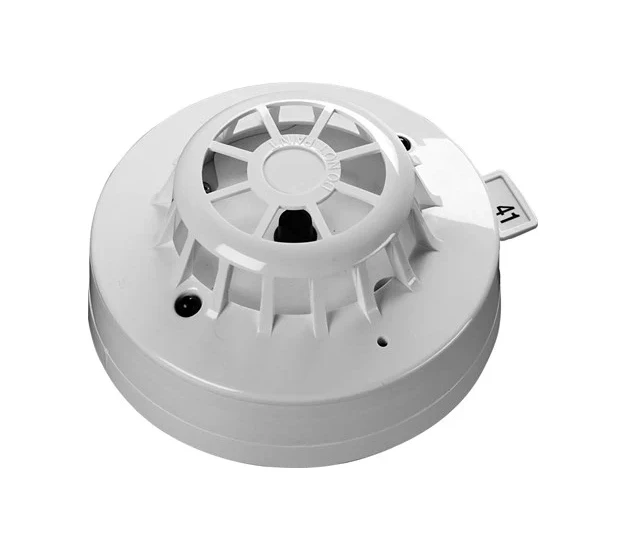

Apollo 58000-400APO | Discovery Addressable Standard 55°C Heat Detector

Name: Apollo 58000-400APO | Discovery Addressable Standard 55°C Heat Detector
Brand: Apollo
Price: 40.62 GBP
Availability: InStock

Code: FDS600/030

£40.62

INC VAT

Code: FDS600/030

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo Discovery Heat Detector (58000-400APO) uses a single thermistor to sense the air temperature around the detector.

Apollo 58000-400APO
Ideal in environments that are dirty or smoky under normal conditions
Well suited for warehouses, loading bays and car parks
Unaffected by wind or atmospheric pressure
Five response modes
Remote test feature
Please note that all bases sold separately!

Category	Specification
Model	Apollo 58000-400APO
Warranty	10 year
Applications	Car parks/loading bays, Dusty environments, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Warehouses
Fire Type	Fast burning, flaming fires
Mechanical
Colour	White
Sensor configuration	Exposed heat sensing thermistor
Weight	105g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	42mm (1.65in)
Product diameter	100mm (3.94in)
Detection principle	Temperature sensitive resistance
Conformance
Standards	EN 54-5
Approvals	SBSC, BOSEC, FG, VdS, LPCB, CPR, MED
Electrical
Protocol voltage (min)	5V
Protocol voltage (max)	9V
Protocol voltage	5 to 9V peak to peak
Power-up surge current	1mA
Maximum power-up time	10 seconds
Status indicator - Alarm	Red
Quiescent current	350μA
Quiescent current tested at	24V dc
Terminal functions L2	+L2 Loop in & out positive, double terminal
Terminal functions L1 in	+L1 in Loop in & out, double terminal
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity insensitive
Environmental
Humidity (min)	0% RH
Humidity (max)	95% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
IP Rating
IP rating Value	IP44
Storage Temperature
Storage temperature (min)	-40°C
Storage temperature (max)	80°C
Storage temperature	-40 to 80°C

Apollo 58000-400APO | Discovery Addressable Standard 55C Heat Detector Data Sheet

Click here to download

Overview

Features

Technical Data

Category	Specification
Model	Apollo 58000-400APO
Warranty	10 year
Applications	Car parks/loading bays, Dusty environments, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Warehouses
Fire Type	Fast burning, flaming fires
Mechanical
Colour	White
Sensor configuration	Exposed heat sensing thermistor
Weight	105g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	42mm (1.65in)
Product diameter	100mm (3.94in)
Detection principle	Temperature sensitive resistance
Conformance
Standards	EN 54-5
Approvals	SBSC, BOSEC, FG, VdS, LPCB, CPR, MED
Electrical
Protocol voltage (min)	5V
Protocol voltage (max)	9V
Protocol voltage	5 to 9V peak to peak
Power-up surge current	1mA
Maximum power-up time	10 seconds
Status indicator - Alarm	Red
Quiescent current	350μA
Quiescent current tested at	24V dc
Terminal functions L2	+L2 Loop in & out positive, double terminal
Terminal functions L1 in	+L1 in Loop in & out, double terminal
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity insensitive
Environmental
Humidity (min)	0% RH
Humidity (max)	95% RH
Humidity	0% to 95% (no condensation or icing)
Humidity Note	no condensation or icing
IP Rating
IP rating Value	IP44
Storage Temperature
Storage temperature (min)	-40°C
Storage temperature (max)	80°C
Storage temperature	-40 to 80°C

Downloads & Resources

Apollo 58000-400APO | Discovery Addressable Standard 55°C Heat Detector

£40.62

Apollo 55000-122APO | Series 65 A1R Heat Detector 57°C

£11.20

Apollo 55000-127APO | Series 65 BR Heat Detector 75°C

£11.70

Apollo 55000-132APO | Series 65 CR Heat Detector 90°C

£11.70

Apollo 55000-137APO | Series 65 CS Heat Detector 90°C

£11.55

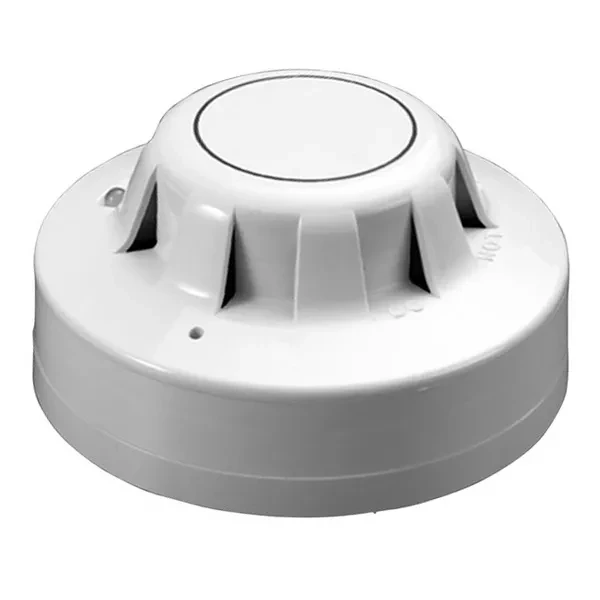

Apollo 55000-317APO | Series 65 Optical Smoke Detector
