Apollo 58000-305APO | Discovery Addressable CO/Heat Multisensor Detector

Name: Apollo 58000-305APO | Discovery Addressable CO/Heat Multisensor Detector
Brand: Apollo
Price: 77.34 GBP
Availability: InStock

Code: FDS340/042

£77.34

INC VAT

Code: FDS340/042

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

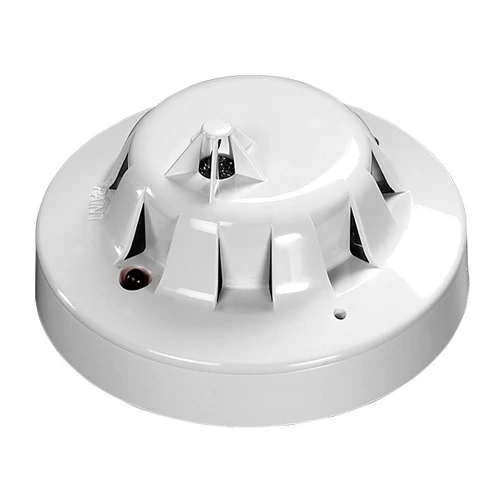

The Apollo 58000-305APO Discovery Addressable CO/Heat Multisensor Detector comprises a CO and thermistor temperature sensor.

Apollo 58000-305APO
Ideal for a wide range of applications
Enhanced false alarm management
Recommended, in specific modes, for hotel bedrooms and hospital wards
Unaffected by wind or atmospheric pressure
Well suited for sensitive environments
Five response models
Remote test feature
Please note that all bases sold separately

Category	Specification
General
Warranty	5 year
Applications	Bedrooms, Hospitals, Hotels, Offices, University campuses, Warehouses
Fire Type	Fast and slow burning fires
Mechanical
Colour	White
Weight	94.4g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	54mm (2.13in)
Product diameter	100mm (3.94in)
Detection principle	Temperature sensitive resistance, Ambient carbon monoxide level
Conformance
Standards	EN 54-5
Approvals	LPCB, VdS, CPR
Performance
Analogue value nominal	25
Analogue value (- tolerance)	2
Analogue value (+ tolerance)	2
Analogue value	25 +2/-2
Alarm level analogue value	55
Electrical
Protocol voltage	5 to 9V peak to peak
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Power-up surge current	1mA
Maximum power-up time	10 seconds
Status indicator - Alarm	Red
Quiescent current	400μA
Quiescent current tested at	24V dc
Terminal functions L2	+L2 Loop in & out positive
Terminal functions L1 in	-L1 in Loop (isolated) negative
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity sensitive
Environmental
Humidity (max)	90% RH
Humidity (min)	15% RH
Humidity	15% to 90% (no condensation or icing)
Humidity Note	no condensation or icing
Operating temperature	0 to 50°C (32 to 122°F)
Operating temperature (max)	50°C (122°F)
Operating temperature (min)	0°C (32°F)
IP Rating
IP rating Value	IP44
Storage Temperature
Storage temperature (max)	30°C
Storage temperature (min)	10°C
Storage temperature	10 to 30°C

Apollo 58000-305APO | Discovery Addressable CO/Heat Multisensor Detector Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification
General
Warranty	5 year
Applications	Bedrooms, Hospitals, Hotels, Offices, University campuses, Warehouses
Fire Type	Fast and slow burning fires
Mechanical
Colour	White
Weight	94.4g
Materials housing	Polycarbonate
Materials terminals	Nickel plated stainless steel
Product length	54mm (2.13in)
Product diameter	100mm (3.94in)
Detection principle	Temperature sensitive resistance, Ambient carbon monoxide level
Conformance
Standards	EN 54-5
Approvals	LPCB, VdS, CPR
Performance
Analogue value nominal	25
Analogue value (- tolerance)	2
Analogue value (+ tolerance)	2
Analogue value	25 +2/-2
Alarm level analogue value	55
Electrical
Protocol voltage	5 to 9V peak to peak
Protocol voltage (max)	9V
Protocol voltage (min)	5V
Power-up surge current	1mA
Maximum power-up time	10 seconds
Status indicator - Alarm	Red
Quiescent current	400μA
Quiescent current tested at	24V dc
Terminal functions L2	+L2 Loop in & out positive
Terminal functions L1 in	-L1 in Loop (isolated) negative
Terminal functions +R	+R Remote indicator positive connection
Terminal functions -R	-R Remote indicator negative connection
Polarity	L1 & L2 are polarity sensitive
Environmental
Humidity (max)	90% RH
Humidity (min)	15% RH
Humidity	15% to 90% (no condensation or icing)
Humidity Note	no condensation or icing
Operating temperature	0 to 50°C (32 to 122°F)
Operating temperature (max)	50°C (122°F)
Operating temperature (min)	0°C (32°F)
IP Rating
IP rating Value	IP44
Storage Temperature
Storage temperature (max)	30°C
Storage temperature (min)	10°C
Storage temperature	10 to 30°C
