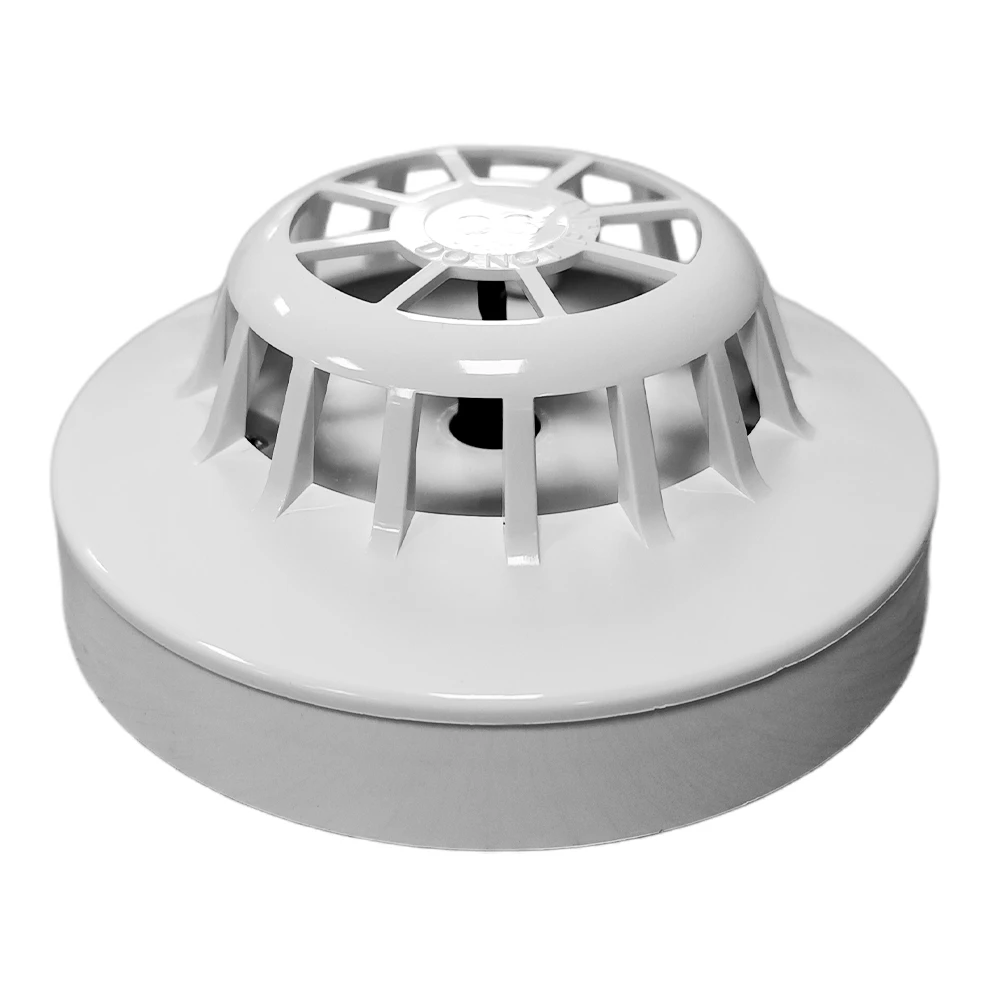

Apollo 55000-137APO | Series 65 CS Heat Detector 90°C

Name: Apollo 55000-137APO | Series 65 CS Heat Detector 90°C
Brand: Apollo
Price: 13.86 GBP
Availability: InStock

Code: FDS400/053

£13.86

INC VAT

Code: FDS400/053

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo 55000-137APO can be used with most conventional fire alarm panels, heat Detectors monitor temperature by using a dual thermistor network which triggers the fire control panel at a pre-set level.

The Apollo 55000-137APO Series 65 CS Heat Detector is a high-performance, fixed-temperature detector designed for applications requiring reliable heat detection in demanding environments. Operating at a 90°C threshold, it is ideal for areas where smoke detectors may not be suitable, such as kitchens, boiler rooms, and industrial settings.

Apollo 55000-137APO
Can be used for applications where smoke detectors are unsuitable ideal for environments that are dirty or smoky under natural conditions
Wide operating voltage
Flashing LED and magnet operated test switch option
Base supplied separately (please see related products below)

Parameter	Specification
Supply Wiring	Two-wire monitored supply, polarity insensitive
Terminal Functions	L1 IN & L2 – Supply in connections L1 OUT & L2 – Supply out connections –R – Remote indicator negative connection
Supply Voltage	9 V to 33 V
Ripple Voltage	2 V peak-to-peak maximum at 0.1 Hz to 100 kHz
Quiescent Current	See Table 1
Power-up Surge Current	As per quiescent current
Alarm Voltage	6 V to 28 V DC
Alarm Current	See Table 1
Alarm Indicator	Red light-emitting diode
Design Alarm Load	420 Ω in series with a 2 V drop
Holding Voltage	6 V
Holding Current	10 mA
Minimum Voltage Required to Light Alarm Indicator	12 V
Remote Output Characteristics	Remote is a current sink to the negative line, limited to 17 mA
Storage Temperature	-30°C to +80°C
Operating Temperature	A1R: -20°C to +50°C BR: -20°C to +65°C CS/CR: -20°C to +80°C
Humidity	0% to 95% RH (no condensation or icing)
Effect of Atmospheric Pressure	None
Designed to IP Rating	IP54
Standards and Approvals	CPR, LPCB, VdS, VNIIPO, SBSC, FG, BOMBA
Dimensions	100 mm diameter × 42 mm height
Weight	80 g
Materials	Housing: White flame-retardant polycarbonate Terminals: Nickel-plated stainless steel

Apollo 55000-137APO | Series 65 CS Heat Detector 90°C Data Sheet

Click here to download

Overview

Features

Technical Data

Parameter	Specification
Supply Wiring	Two-wire monitored supply, polarity insensitive
Terminal Functions	L1 IN & L2 – Supply in connections L1 OUT & L2 – Supply out connections –R – Remote indicator negative connection
Supply Voltage	9 V to 33 V
Ripple Voltage	2 V peak-to-peak maximum at 0.1 Hz to 100 kHz
Quiescent Current	See Table 1
Power-up Surge Current	As per quiescent current
Alarm Voltage	6 V to 28 V DC
Alarm Current	See Table 1
Alarm Indicator	Red light-emitting diode
Design Alarm Load	420 Ω in series with a 2 V drop
Holding Voltage	6 V
Holding Current	10 mA
Minimum Voltage Required to Light Alarm Indicator	12 V
Remote Output Characteristics	Remote is a current sink to the negative line, limited to 17 mA
Storage Temperature	-30°C to +80°C
Operating Temperature	A1R: -20°C to +50°C BR: -20°C to +65°C CS/CR: -20°C to +80°C
Humidity	0% to 95% RH (no condensation or icing)
Effect of Atmospheric Pressure	None
Designed to IP Rating	IP54
Standards and Approvals	CPR, LPCB, VdS, VNIIPO, SBSC, FG, BOMBA
Dimensions	100 mm diameter × 42 mm height
Weight	80 g
Materials	Housing: White flame-retardant polycarbonate Terminals: Nickel-plated stainless steel

Downloads & Resources

Apollo 55000-137APO | Series 65 CS Heat Detector 90°C

£13.86

Apollo 55000-122APO | Series 65 A1R Heat Detector 57°C

£11.20

Apollo 55000-127APO | Series 65 BR Heat Detector 75°C

£11.70

Apollo 55000-132APO | Series 65 CR Heat Detector 90°C

£11.70

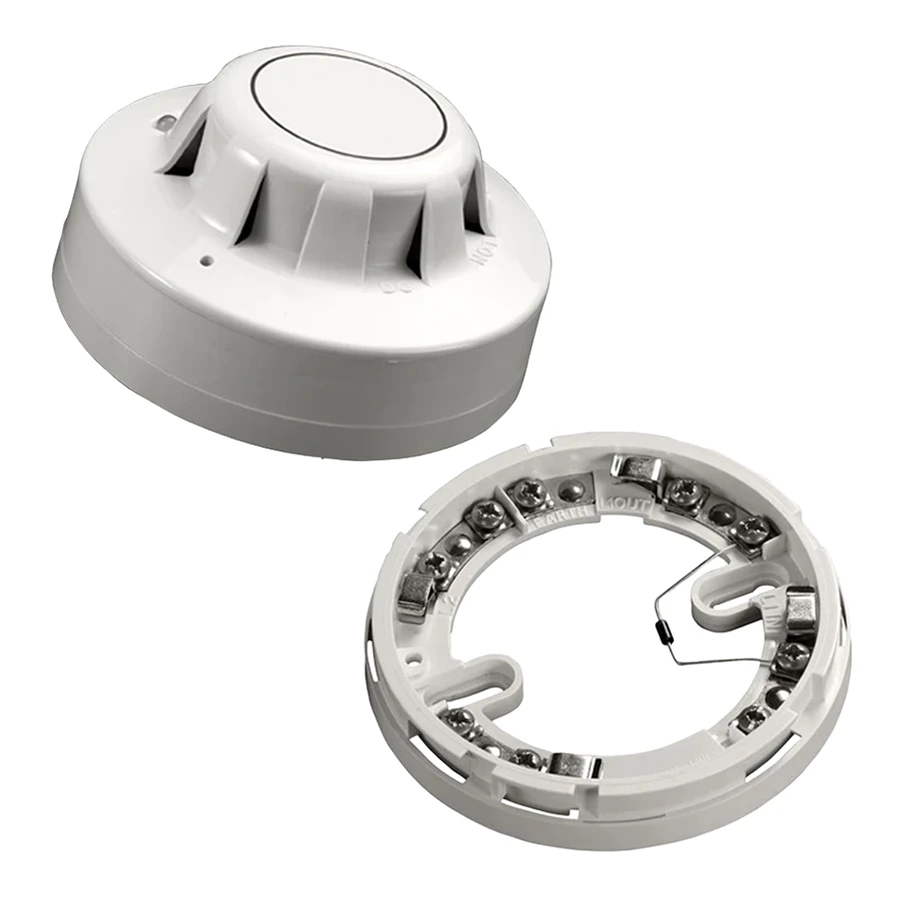

Apollo 55000-317APO | Series 65 Optical Smoke Detector
