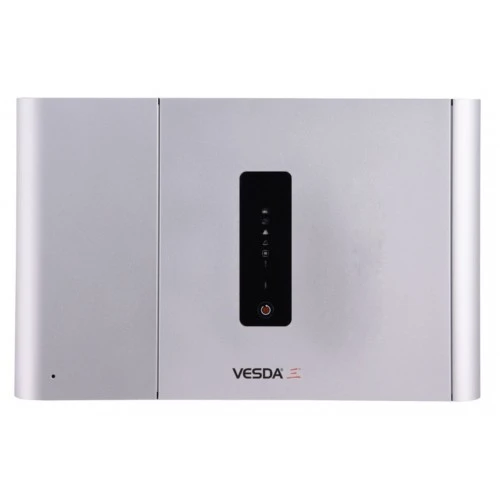

Vesda-E VEU-A00 Four Pipe Detector with LED's Display

The VEU series of aspirating smoke detectors are the premium detector of the VESDA-E range. An Ultra-wide sensitivity range; 15 times greater than VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by at least 40%.

Considerably longer linear pipe runs and extended branched pipe network configurations cater perfectly to applications with higher ceilings providing an increased coverage by up to 80% whilst allowing convenient detector mounting for ease of service and maintenance.

Features

• Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms

• Short wavelength laser-based detection:

• High sensitivity from small particle light scattering

• No drift compensation required since focused light directed at target gives low backgrounds

• High stability with temperature and time

• Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance

• Four alarm levels and an ultra wide sensitivity range deliver optimum protection for the widest range of applications

• Intuitive LCD icon display provides instant status information for immediate response

• Flow fault thresholds per port accommodate varying airflow conditions

• Smart on-board filter retains dust count and remaining filter life for predictable maintenance

• Extensive event log (20,000 events) for event analysis and system diagnostics

• AutoLearn smoke and flow for reliable and rapid commissioning

• Referencing to accommodate external environmental conditions to minimise nuisance alarms

• Backward compatible with VLP and VESDAnet

• Remote monitoring with iVESDA for system review and proactive maintenance

• Ethernet for connectivity with Xtralis software for configuration, secondary monitoring and maintenance

• Industry first. Aspirating detector secondary monitoring and maintenance via WiFi

• USB for PC configuration, and firmware upgrade using a memory stick

• Two programmable GPIs (1 monitored) for flexible remote control

• Field replaceable sub-assemblies enable faster service and maximum uptime
