WindowMaster WMD820-1G-OUT | 90 Degree Door and Window Actuator - Outward Opening

Name: WindowMaster WMD820-1G-OUT | 90 Degree Door and Window Actuator - Outward Opening
Price: 746.4 GBP
Availability: InStock

£746.40

INC VAT

Code: FDS331/224

We aim to deliver in 1-2 working days*

Have a question about this? Click here

*Delivery can depends on the items in your basket, we keep you informed about shipping once your order is placed.

Overview Features Technical Data

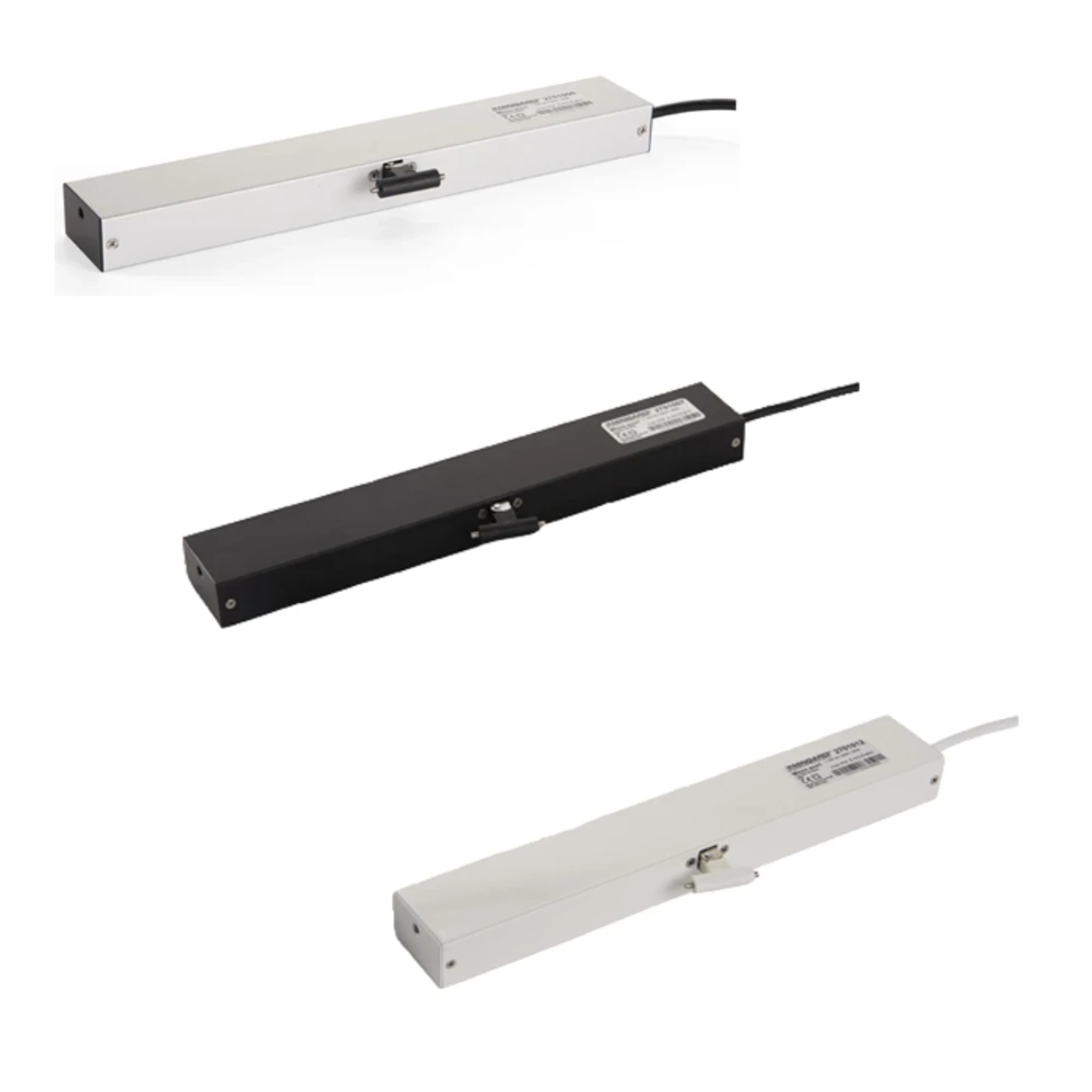

The WindowMaster WMD 820 Folding Arm Actuator is used on side-hung opening AOV windows or doors to open to a 90Âº angle.

Requires brackets for installation.

0-90° opening stroke (programmable)
Suitable for outward opening doors & side-hung windows
2 units can be synchronised to work as a pair
Various fixing brackets are available (each sold separately)
Supplied with 5.0m cable

Voltage: 24V DC (+/- 10%)
Colour: Silver Anodised or custom RAL colour
Push Force: 250 N
IP Rating: IP 32
Locking Force: 2000 N
Certification: EN 12101-2
Opening Stroke: 90Â° or 98Â° (programmable)
Life Span: 10,000 opening and closing movements
Opening Speed: < 60 sec
Delivery Includes: 1 x Actuator (fixing brackets sold separately)
Current Consumption: 1.0 A
Flex Length: 5 m
Operating Conditions: -5Â°C - +74Â°C
Cable Dimensions: 2-Core (5 to interlink actuators)
Switch-on Duration: ED 40% (max. 4min. per 10min)
Min. window width: > 750 mm (Side-Hung)
Synchronisation: Yes (programmable)
Max. window width: < 1200 mm (Side-Hung)
