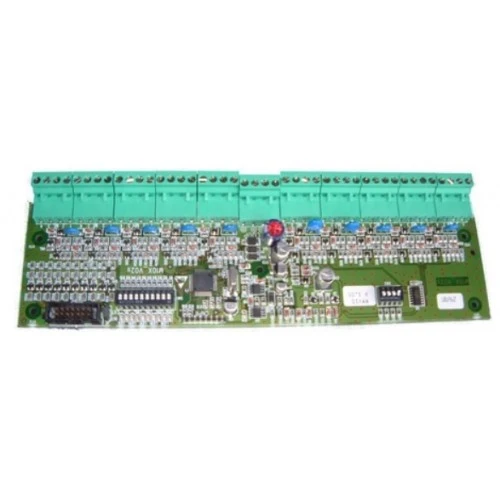

The MMX-10ME is a multi-module card that groups 10 monitored inputs. This is a space-saving and economical solution when many input modules are needed. Each input module has an LED, LED output and micro switch with which each module can be switched off individually. The connectors can be plugged in for easy connection. The MMX-10ME multi-module card conforms to the European CPD guidelines.

This module uses 10 consecutive addresses of the 99 available in each loop. The address of the first module of the board, which can be selected through the SW-2 dipswitch, corresponds to the figure of tens of the complete address (01-99) sent by the control panel, while the units (0-9) correspond respectively to the single modules. Since the control panel does not poll the 00 module, only 9 modules (B-M) will be available if the 0 address board is programmed.

The 2-wires loop coming from the control panel must be connected to the terminal block LOOP (featuring 4 terminals). The 1-2 and 3-4 terminals are linked together for an easier connection to other devices.

• System Sensor MMX-10ME 10-Way Monitor Input Card

• The input of each module, suitable to point out the closing of a normally open or closed contact, supports both 2 wires open line and 4 wires loop.

• The open line connection requires a 47 K 5% W end of line resistor.

• Optionally, a resistor 33 K 5 % W can be installed to verify short circuit connected to the alarm contact (this configuration complies EN54.2).

• The 4 wires loop configuration makes it possible to detect an alarm condition even if there is a cut in the loop.

• Dimensions: 233mm x 70mm

The MMX-10M includes the following items:

• Removable terminal block;

• DIP-SWITCH (for the module address selection);

• DIP-SWITCH (for the single modules masking);

• SMD LEDs (one for each module);

• Auxiliary output on 14 pin flat cable connector to drive external LEDs with no resistor.

• The LEDs are activated by the control panel.
