The M201E240 and M201E240DIN form part of the new family of input/output modules in System Sensor Europes Series 200 plus range. The M201E240 is a loop-powered device controlling an unsupervised double pole (one normally open, one normally closed) output suitable for managing 240VAC loads. The output relay is a bi-stable device, latching in the on or off state on command from the control panel.

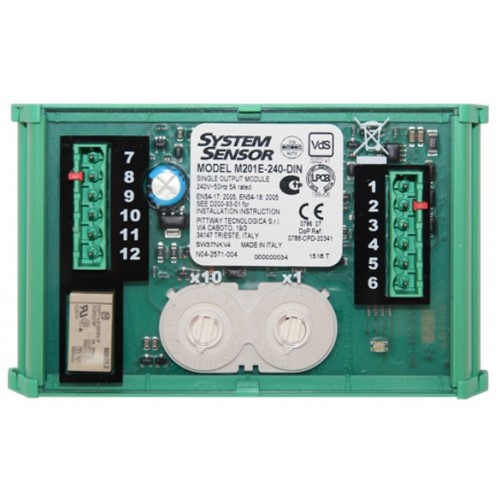

The M201E240DIN has the same features and capabilities as the M201E240 but is designed to mount directly on to a standard 35mm Top Hat DIN rail. The module is supplied unboxed for installation in a suitable enclosure.

Each module has built-in short circuit protection for the communications loop; however, to increase application flexibility, the isolators can be selected/deselected on an individual module basis. To help technicians in the maintenance and fault-finding process, both the LEDs and the switches can be viewed without having to remove the cover of the surface mounting box. The LEDs, being multi-colour, provide diagnostic information regarding the status of each individual input/output. For ease of installation, testing and maintenance, the field wiring terminals are of plug-in design.

• Tri-colour LEDs

• Built in short circuit isolators

• Decade address switches visible and selectable in two planes

• Wide angle LED visibility

• LPCB approved

• VdS approved

• BOSEC Approved: TCC2-K-466

• GEA GEI 1-082 and CEA GEI 1-084 approved
