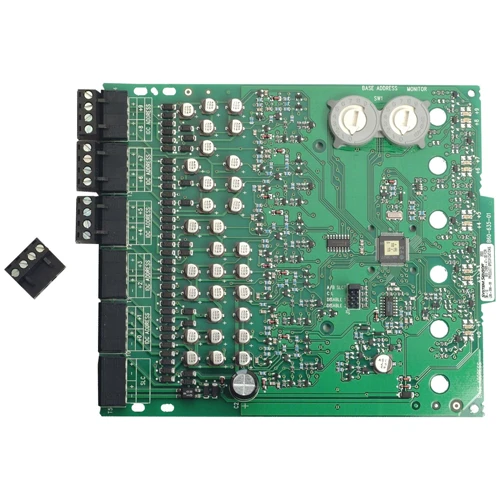

The IM-10EA Ten Input Monitor Module is intended for use in an intelligent alarm system. Each monitor module is intended to interface between a control panel and normally open contact devices, such as pull stations. A common SLC input is used for all modules, and the initiating device loops share a common supervisory supply and ground.

Otherwise, each monitor operates independently from the others. Each module also has panel-controlled tri-colour (green, red and amber) LED indicators. The panel can cause the LEDs to blink, latch on, or latch off. The module also provides short circuit isolators to prevent shorts on the fire detection and alarm system loop from disabling more than one device on the intelligent loop.

In systems using CLIP (Communication Loop Intelligent Protocol) a pair of rotary code switches is used to set the address of the first module from 01 to 90. The remaining modules are automatically assigned to the next nine higher addresses. Provisions are included for disabling a maximum of six unused modules to release the addresses for use elsewhere.

In systems using Advanced Protocol a pair of rotary code switches is used to set the address of the module from 01 to 159. Only one address is used for the entire multi-module with sub-addresses completing the remaining addresses.

• Normal Operating Voltage: 15-29 VDC

• Stand-By Current: 3.5 mA

• Alarm Current: 60 mA (assumes all ten LEDs solid on)

• Temperature Range: 10C to 55C

• Humidity: 10 to 93% Non condensing

• Dimensions: 17.3cm H x 14.7cm W x 3.2cm D

• Accessories: Suitably grounded metallic cabinet

• Wire Gauge: 0.8 mm2 - 3.25mm2

• Maximum SLC Wiring Resistance: 40 Ohms Maximum IDC

• Wiring Resistance: 40 Ohms Maximum

• IDC Voltage: 12 VDC Maximum IDC Current: 1 mA
