Nittan EVO+5202 | 1-2 Loop Fire Panel c/w 2 Loop Cards

The Nittan evo+5202 is a 1-2 loop addressable fire alarm panel fitted with 2 loop cards for Nittan Evolution protocol. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end user operation. Powerful cause-and-effect programming coupled with dynamic zoning and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.

FEATURES:

• c/w 2 Loop Cards fitted

• 20 programmable zonal / 25 System LEDs

• Nittan Evolution protocol

• Graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware

• Dedicated USB & RS232 Serial Port for direct PC or modem connection

• Installer friendly Auto-learn, Loop Detection and On-board Scope facility for ease of commissioning and fault finding

• Graphical display configurable for virtually any language

• Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination

• Integral P-Bus for system expansion via available option cards

• Ad-NeT peer-to-peer network with up to 2000 zones

• Approved to BS EN54 part 2 and 4

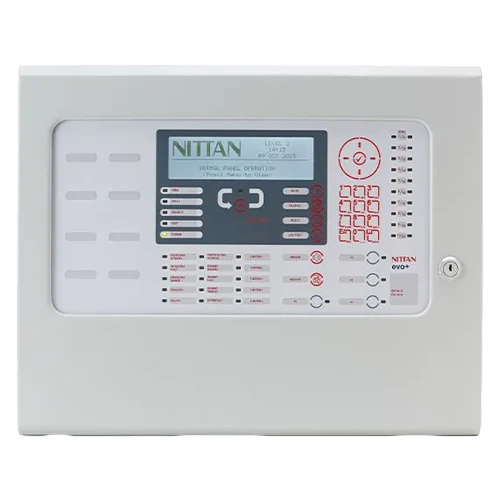

Note: Image is for display purposes only
