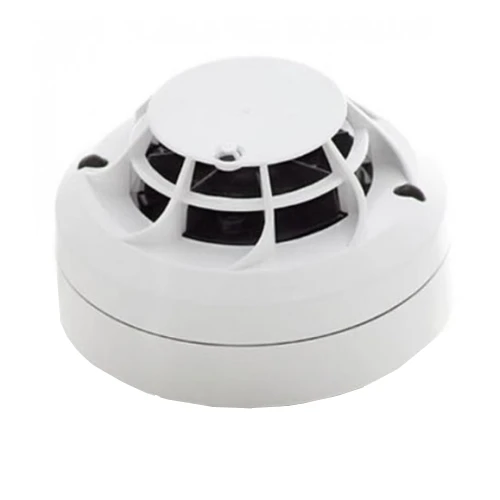

System Sensor 52051E-26 Fixed 58C Heat Detector

The System Sensor 52051E-26 Fixed 58C Heat Detector is a fixed temperature analogue addressable sensor that employs low mass thermistors and microprocessor technology for fast response and linear temperature sensing. The linear response allows these sensors to be used to signal temperatures over the range of 58 degrees to 78 degrees.

The detector uses the same thermistor and microprocessor technology to provide an alarm when the rate of rise in temperature exceeds 10 degrees/minute (typical) or if the temperature exceeds a threshold of 58 degrees.

Due to the Series 200 advanced protocol, the model can be software configured to be a fixed 58 degree, 78 degree or 58 degree with rate of rise device. The sensing elements of all three heat sensors are panel controllable through the Series 200 advanced protocol.

• Series 200 advanced protocol gives the ability to customise the heat threshold of each detector to the specific risks found in the application

• Tri-colour LED offering red, green and amber colours

• Rotary decade address switch

• Pure white colour to compliment modern buildings

• 100% mechanical and electrical backwards compatibility

• New base design to compliment the detector

• Complete with isolator
