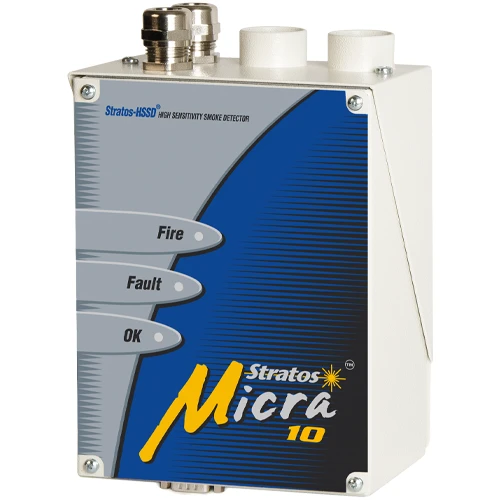

Stratos-Micra 10 is the entry level aspirating detect designed to provide local detection in critical areas where conventional point type detection may cause false alarms or not be suitable ie small non-compartmentalised rooms, warehouse racking, or pieces of electronic or electromechanical equipment.

ClassiFire perceptive artificial intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the detector will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.

The detector is designed to fit into a Docking Station. All sampling pipes and cables are connected to the Docking Station as a first fix operation leaving the detector to be fitted during the final commissioning phase if required. This ensures that detectors are less likely to be damaged during the installation.

Volt-free fire and fault relay outputs.

Features

• Ultra small low cost aspirating smoke detector for easy and discreet installation

• High sensitivity provided by laser based forward light scatter for reliable early warning

• Single sampling pipe up to 50m in length (still air)

• Unique ClassiFire Perceptive Artificial Intelligence system that dynamically adjusts the detectors operating parameters, allowing for day to day changes in the protected environment and dust separation system contamination

• Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and elimination system

• CPR approved

• 145 x 220 x 85 mm (W x H x D)

• 1.7 kg

• 2 x M20 cable entries

• IP50
