FireSmart Plus | Addressable Fire Alarm Kit

Name: FireSmart Plus | Addressable Fire Alarm Kit
Brand: Firesmart
Price: 432.9 GBP
Availability: InStock

£432.90

INC VAT

Code: FDS510/030

Add these extras to your kit

Please Select

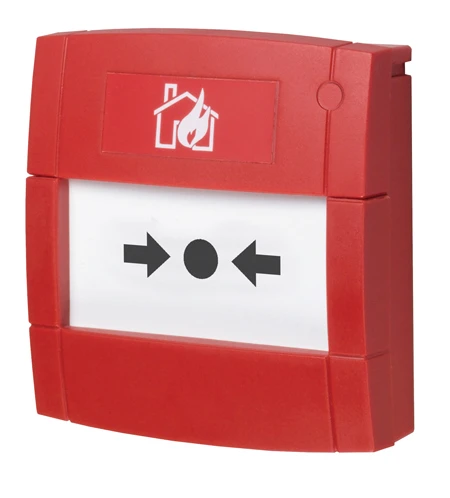

FireSmart Addressable Surface Manual Call Point w/ Cover(£37.74 inc vat)

FireSmart Addressable Optical Smoke Detector w/ Base(£31.86 inc vat)

FireSmart Addressable 58 Fixed Temperature Heat Detector w/ Base(£31.86 inc vat)

FireSmart Addressable Multi-Sensor Detector w/ Base(£39.54 inc vat)

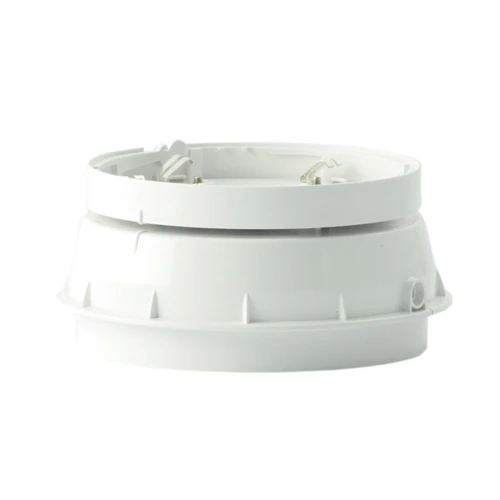

FireSmart Addressable Base Sounder with Isolator(£36.42 inc vat)

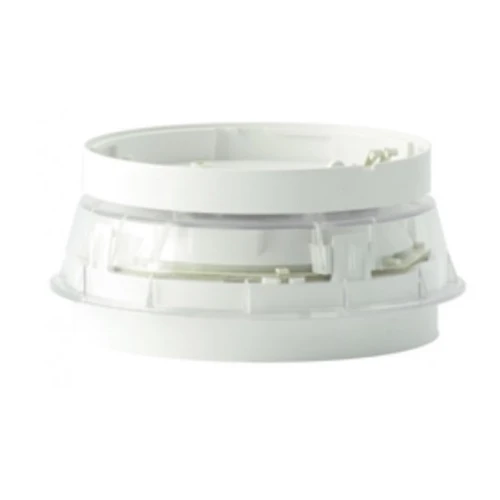

Firesmart Addressable Base Sounder VAD with Isolator(£82.62 inc vat)

FireSmart Addressable Sounder w/ Base(£52.74 inc vat)

FireSmart Addressable Wall Sounder Beacon w/Base(£73.86 inc vat)

Have a question about this? Click here

Overview Features Technical Data

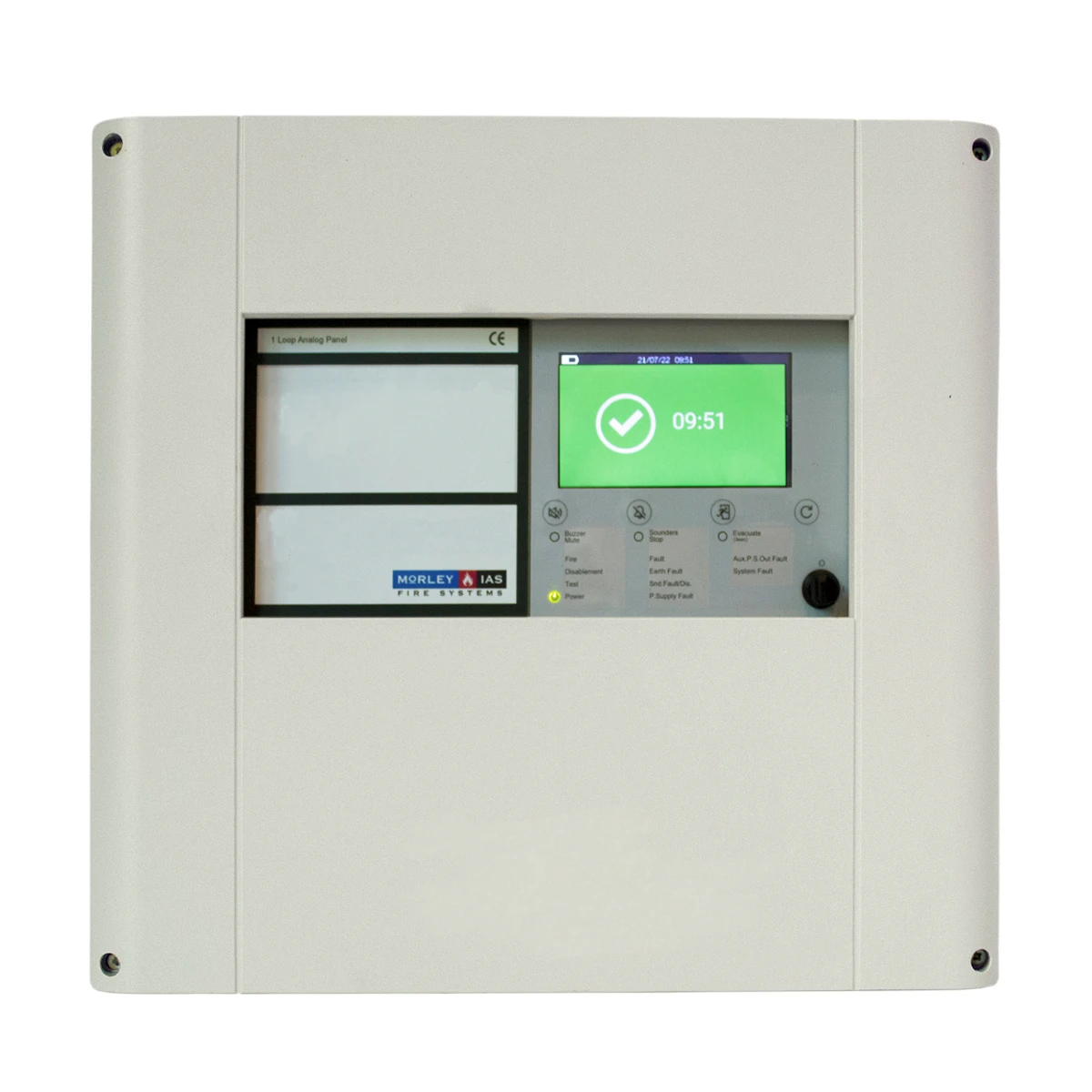

Exclusive to Fire Detection Shop the FireSmart Plus addressable fire alarm kit comprises our single loop fire alarm panel - a new direction in addressable fire alarm systems, powerful yet easy to install and configure.

Fully programmable via the on-board touchscreen display it is particularly suited for smaller commercial premises, HMO's and larger domestic properties.

SIMPLY ADD ADDITONAL DEVICES FROM THE BOXES ABOVE TO BUILD YOUR CUSTOM SYSTEM

Touch-screen colour display with selectable back-lit illumination and buttons
Intuitive colour event indication tab system for improved situational awareness
Simple Cause and Effect creator
Quick configuration of the unit from the same display
On-screen 16 Virtual Zonal LED indicator to increase situational awareness.
Certified to EN54-2, EN54-4; LVD 62.368-1:2014+A11

Specification	Details
Main Power Supply	100-240 V AC +/- 15%, 50 / 60 Hz
Power Consumption	max. 65W
Battery Capacity	7 Ah or 12 Ah (not included)
24 VDC output	max. 500 mA
Outputs	1 fault (NO/NC); 1 alarm (NO/NC)
Sounder output	2, max. 50 mA
Protection class	IP30
Dimensions (H x W x D)	356 x 379 x 120 mm
Operating temperature	-5 °C to +40 °C
Humidity	5% - 95% non-condensing
Weight	1.76 kg

Overview

Features

Technical Data

Specification	Details
Main Power Supply	100-240 V AC +/- 15%, 50 / 60 Hz
Power Consumption	max. 65W
Battery Capacity	7 Ah or 12 Ah (not included)
24 VDC output	max. 500 mA
Outputs	1 fault (NO/NC); 1 alarm (NO/NC)
Sounder output	2, max. 50 mA
Protection class	IP30
Dimensions (H x W x D)	356 x 379 x 120 mm
Operating temperature	-5 °C to +40 °C
Humidity	5% - 95% non-condensing
Weight	1.76 kg
