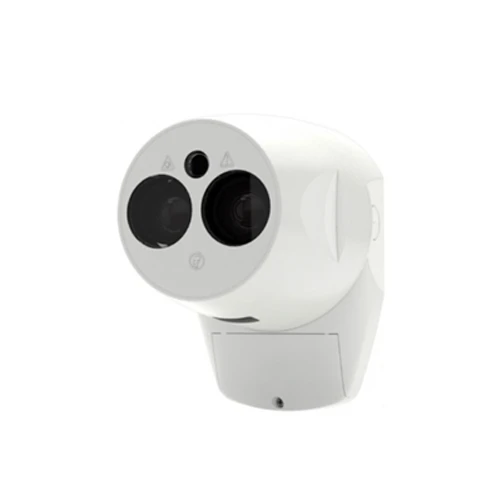

With no specialist tools or knowledge needed for installation and operation, the Fireray One is a standalone beam detector that prioritises ease of installation. Using the Fireray One, it couldnt be easier to bring the benefits of beam detection to your application:

• One Minute Auto-Alignment just steer the laser onto the Reflector, then at the flick of a switch, it aligns itself. 8 times faster than previous detectors

• One person installation everything can be done by one person

• One standalone product no specialist tools required; minimal prior knowledge and training needed

SPECIFICATION

• Detection Range : 0 - 50m (Upto 120m When Used With Long Range Kit)

• Alignment Method : Laser assisted, Auto-Alignment. Manual alignment optional setting

• Auto-Alignment protocol : Background check, Box search, Adjust and Centre

• Building Movement Tracking : Compensates for natural shifts in alignment from building movement*

• Contamination Compensation : Compensates for gradual build-up of contamination on the optical surfaces

• Light Cancellation Technology : Compensates for high levels of sunlight and artificial lighting

• Optical wavelength smoke detection : 850nm near infrared (invisible)

• Integrated laser laser alignment : 650nm visible. Class IIIa <5mW

• Dynamic Beam Phasing : Allows beam detectors to be mounted facing each other with the refl ectors in the middle. Eliminates false alarms caused by crosstalk between beams

• Signal output : Individual Alarm and Fault relays (VFCO) 2A @ 30 VDC
