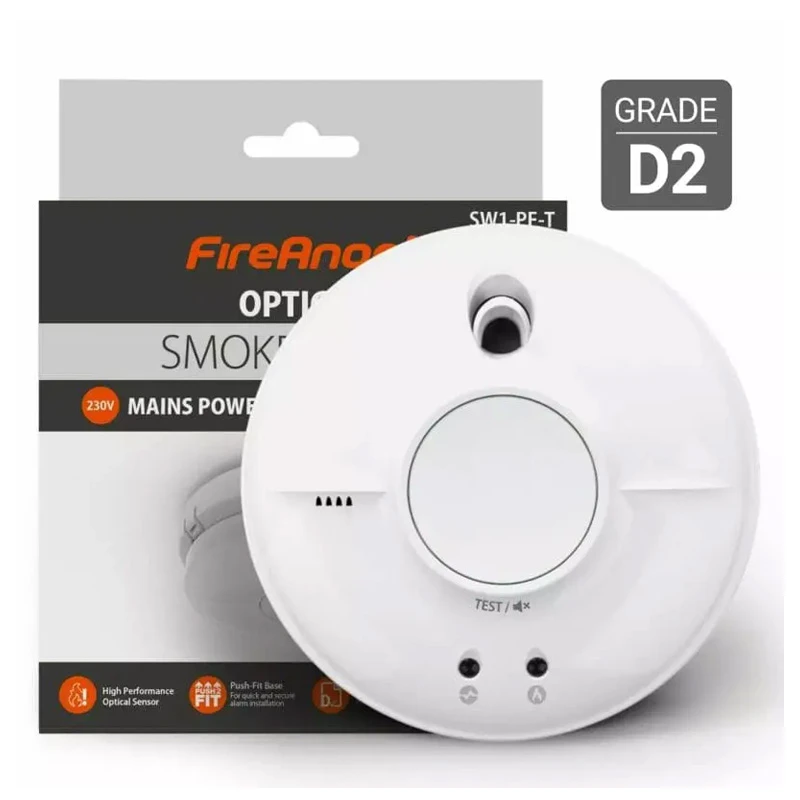

The SW1 is a mains powered smoke alarm with high performance optical sensor, 9V battery back-up and improved Push-Fit base for quicker and easier installations; designed to ensure quick and easy installation of base unit to the mains feed supply at installation stage (1st fix) and for quicker and easier connection of alarm to base unit (2nd fix).

Optical technology reduces nuisance alarms, suitable for use in areas adjacent to where cooking fumes are present

Features

• 230V mains powered smoke alarm

• 9V zinc carbon battery back-up

• Modern design style

• Improved PUSH-FIT base for quicker installations

• Optical technology reduces nuisance alarms

• Large central test and silence button makes weekly testing and silencing easy

• LED operating indicators Power, Fault / Alarm

• Low battery warning indicator

• Multi-alarm interconnect up to 12 smoke (SW1), heat (HW1) & CO (CW1) units

• Safety clip feature, to prevent installation of smoke alarm without battery installed

• 5 year warranty

• EN 14604: 2005

Specifications

• Dimensions: 126mm (diameter) x 49mm (depth)

• Model number: SW1-PF-T

• Description: 230V smoke with zinc carbon battery back-up

• Technology: Optical Alarm

• Sound level: 85db at 3 metres

• Battery type: 9V PP3 zinc carbon

• Operation: AC/DC AC

• Installation positions: Ceiling

• Operating temperature: 5C (40F) to 38C (100F)

• Operating humidity: 10% to 85% relative

• Storage temperature: 5C (40F) to 38C (100F)

• Storage humidity: 10% to 85% relative

• Warranty: 5 years

• Approvals: EN 14604: 2005
