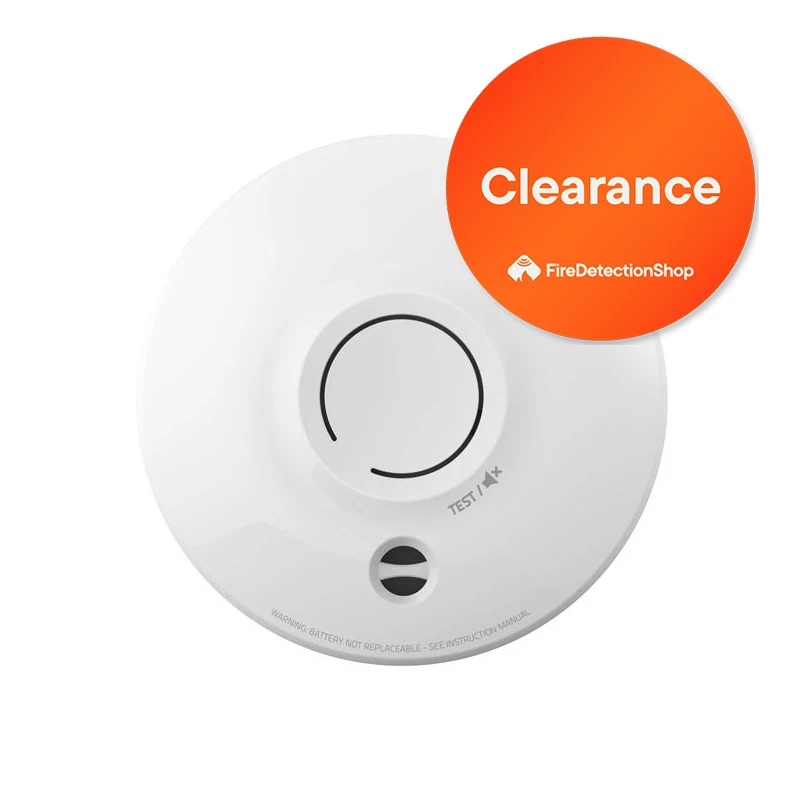

FireAngel Mains Powered Smoke Alarm | SM-SN-1

The FireAngel SM-SN-1 mains powered smoke alarm combines aesthetic design with proven Thermoptek detection to provide the ideal solution to domestic smoke detection. Incorporating signature smoke sensing technology provides a fast reaction to either slow smouldering or fast flaming fires and is used by 92% of UK Fire and Rescue Services.

The SM-SN-1 typically uses 10% less power than the average 230VAC smoke alarm, with a proven carbon footprint of 1.7kg Co2 over 10 years.

In the event of a known false alarm your alarm can be temporarily silenced by pressing the central test button. Your alarm will automatically return to full sensitivity within 10 minutes. The test button can also be used to silence the audible 'low battery' warnings for an 8 hour period. Your alarm will still detect smoke during this time, however you must replace your alarm within 30 days.

Wirelessly interlink the SM-SN-1 smoke alarm with up to 50 FireAngel Smart FR devices - the optional RF radio module (FS1521W2-T) enables wireless connection of all products across the FireAngel range with separate alarm types and sound patterns dependant on source.

Features

• 230Vac mains powered

• Thermoptek multi-sensor technology for fast detection

• Low energy usage

• Centralised button - Test / Smart Silence / Locate

• Mixed system compatibility - easily combine wired and wireless detectors

• Ultra slim

• Grade D1

Specifications

• Dimensions: 141.5mm (diameter) x 43mm (depth)

• Supply voltage: 230V AC, 50Hz

• Battery back-up: 10 year sealed for life lithium Panasonic battery back-up

• Technology: Thermoptek Multi-Sensor and Smart RF Ready

• Alarm sound level: 85dB(A) at 3m (minimum)

• Installation positions: Ceiling / Wall

• Operating temperature: +4C to +38C

• Operating humidity: Up to 90% RH non-condensing

• Storage temperature: -20C to +60C

• Storage humidity: Up to 93% RH non-condensing

• Plastic material: ABS, UL94 VO fire retardant

• Warranty: 5 years

• For use in: Hallway, Landing, Living Room, Bedroom, Dining Room

• Weight: 257g

• Certified to: EN 14604: 2005+AC:2008

• Maximum number of connected units: 50 Smart RF devices

Datasheet
