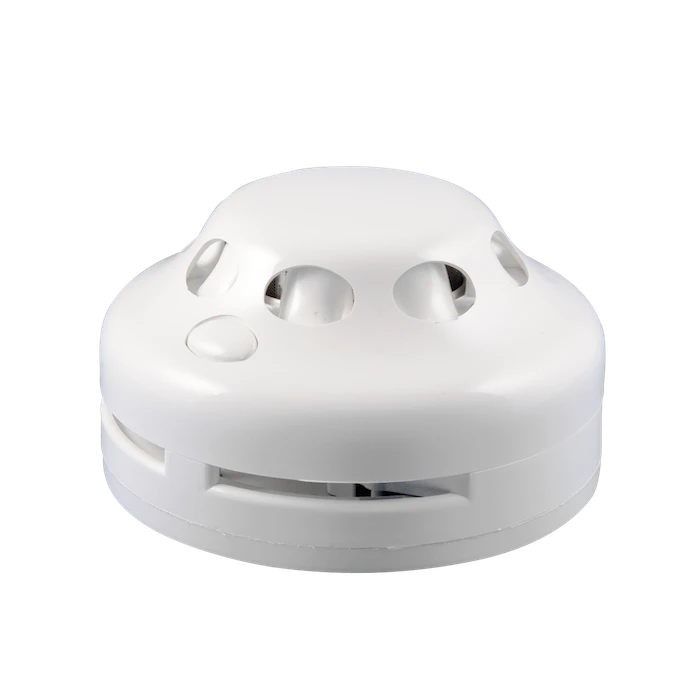

Zerio Plus Wireless Optical Smoke Detector

The EN54 combined optical smoke detector and sounder has been based on the successful Millennium and Zerio systems. The new Zerio Plus device has the usual features of the original device with increases in flexibility when running on the Zerio Plus system. Offering the advanced features of the Zerio Plus detector, the unit is housed in an attractive moulding and shares a common fixing and is interchangeable with the existing Zerio Plus detectors.

The combined optical smoke detector and sounder contains a powerful processor and utilises surface mount technology to achieve the ultimate in performance and reliability. The sounder section utilises a high output sounder, switch mode power supply and a sensitive narrow band FM receiver. The unit is fully programmable and is capable, as is the usual sounder detector, of being divided into 255 individually controlled areas.

Fully configurable by radio, the combined optical smoke detector and sounder stores a unique serial number and length of time in service in its non-volatile memory. With several available tones, which can be changed with a few button presses at the control panel, the system offers flexibility never seen on a wired system. The combined detector is designed to comply with all appropriate sections of EN54.

Features

• Zerio Plus R6000

• EN54 Part 25 Compliant

• Fully Addressable

• Selectable Sensitivity

• Complete with 90dB integral sounder

• Small attractive compact design

• Automatic drift compensation

• Pre-Alarm Warning

• Head Dirty Warning

• Compatible with Zerio Plus Panels

• Up to 5 year battery life provided by replaceable dual lithium cells

• Optical detector for enhanced smoke detection

• Sounder and Sounder-Beacon models available

• IP21 rating for indoor use

• Complex error-checking and automatic fault diagnostic reporting

• Non-volatile memory protects configuration data from total power loss

• High-intensity, two-colour LED for status indication

• Alarm: solid red

• Fault: flashing red

• Log-on mode: solid green

• Sensor sensitivity can be set from the panel after installation

• Fully addressable for location reporting in the event of a fire or fault

• All models comply with BS 5839 Part 1 and EN 54 Parts 7 & 25

• Models with an integrated sounder also comply with BS EN 54 Part 3

• Supplied with base and battery for easy installation

Specifications

• Current Consumption:

  1. Detector: 90A (avg.) / 10mA (alarm)

  2. With Sounder: 250A (avg.) / 60mA (alarm)

  3. With Sounder & Beacon: 10A (avg.) / 60mA (alarm)

• Dimensions (HxDia)


  1. Detector: 45 x 115mm

  2. With Sounder: 65 x 115mm

  3. With Sounder & Alarm: 80 x 115mm

• Flash Rate: 1Hz

• Operating Humidity: 0 to 95% (non-condensing)

• Operating Temperature: 0C to 60C

• Operating Voltage:

  1. Max.: 3.7V DC

  2. Min.: 3.0V DC

• Radio Linking Frequency: 868MHz

• Sound Output: 80dB at 1m

• Warranty: 1 year

• Weight:0.20kg
