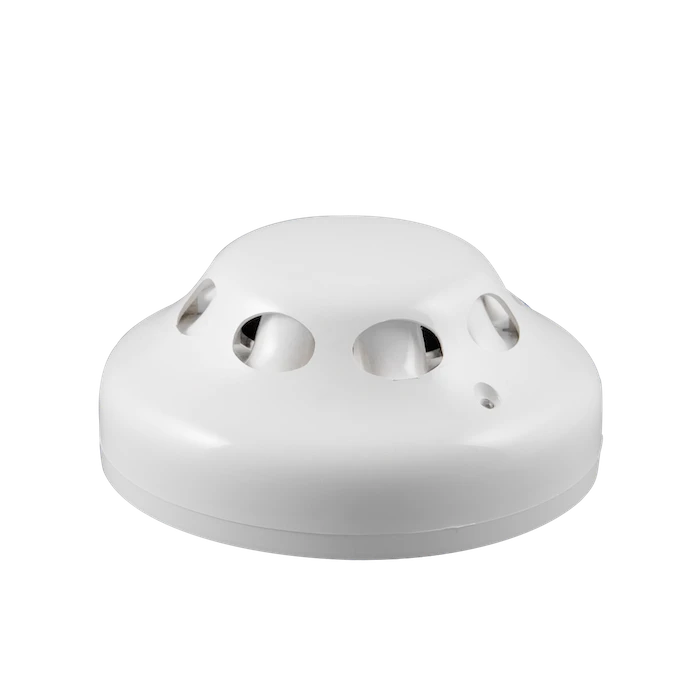

Zerio Plus Wireless Optical Smoke Detector

The Radio Optical Smoke Detector for Zerio Plus wireless fire alarm systems is powered by two lithium batteries and communicates with the control panel wirelessly, drastically reducing installation time and costs.

Fully configurable from the control panel, including sensor sensitivity and address, all settings are stored permanently in the detector's built-in memory which will even survive total power loss. Sophisticated self-testing and complex error-checking minimise detector maintenance while providing peace of mind that the system is working correctly.

The EDA-R5000 has an IP21 rating and is available as just a detector, with an integrated sounder, or with both a sounder and beacon, making it ideal for any indoor installation.

Features

• Up to 5 year battery life provided by replaceable dual lithium cells

• Optical detector for enhanced smoke detection

• Sounder and Sounder-Beacon models available

• IP21 rating for indoor use

• Complex error-checking and automatic fault diagnostic reporting

• Non-volatile memory protects configuration data from total power loss

• High-intensity, two-colour LED for status indication

• Alarm: solid red

• Fault: flashing red

• Log-on mode: solid green

• Sensor sensitivity can be set from the panel after installation

• Fully addressable for location reporting in the event of a fire or fault

• All models comply with BS 5839 Part 1 and EN 54 Parts 7 & 25

• Models with an integrated sounder also comply with BS EN 54 Part 3

• Supplied with base and battery for easy installation

Specifications

• Current Consumption:

  1. Detector: 90A (avg.) / 10mA (alarm)

  2. With Sounder: 250A (avg.) / 60mA (alarm)

  3. With Sounder & Beacon: 10A (avg.) / 60mA (alarm)

• Dimensions (HxDia)


  1. Detector: 45 x 115mm

  2. With Sounder: 65 x 115mm

  3. With Sounder & Alarm: 80 x 115mm

• Flash Rate: 1Hz

• Operating Humidity: 0 to 95% (non-condensing)

• Operating Temperature: 0C to 60C

• Operating Voltage:

  1. Max.: 3.7V DC

  2. Min.: 3.0V DC

• Radio Linking Frequency: 868MHz

• Sound Output: 80dB at 1m

• Warranty: 1 year

• Weight:0.20kg
