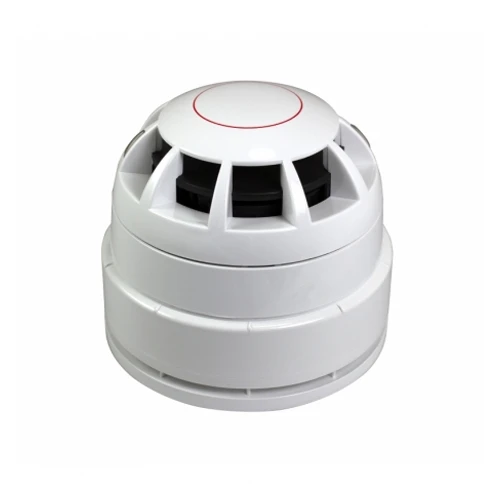

C-TEC CA454A/W CAST White Base Voice Sounder

Name: C-TEC CA454A/W CAST White Base Voice Sounder
Brand: C-tec
Price: 41.4 GBP
Availability: InStock

Code: FDS331/319

£41.40

INC VAT

Code: FDS331/319

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The C-TEC CA454A/W is an addressable base voice sounder unit for use with the C-TEC CAST protocol range of analogue addressable fire alarm system equipment.

Superb sound intelligibility
Onboard short-circuit loop isolator
Four selectable volume levels
Six selectable messages with tones (2 evacuate, 1 alert, 1 all clear & 2 system test messages)
15.5mA typical alarm current (470A typical quiescent current) @ 24-40V DC (max volume & brightness)
Group addressing facility allows multiple devices to be operated simultaneously
Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use
IP21C rated
White ceiling fixing plate & detector spur wires included

Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Designed to be ceiling mounted - either stand-alone with a red or white cap or as part of a stacked Voice Sounder/Detector Base combination
Supply/operating voltage:24 to 40V DC
Quiescent current: 470A typical
Alarm current:15.5mA @ 24 to 40V DC
Indicators: Polling (red LED)
Product dimensions (mm):122mm diameter x 46mm deep (not including optional CAST detector and base)
IP Rating:IP21C (Type A)
Weight:160g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)

C-TEC CA454A/W CAST White Base Voice Sounder Data Sheet

Click here to download
