C-TEC CA451A/SW CAST White C-3-8 Compact ceiling VAD cw 96dB Sounder

Name: C-TEC CA451A/SW CAST White C-3-8 Compact ceiling VAD cw 96dB Sounder
Brand: C-tec
Price: 40.8 GBP
Availability: InStock

Code: FDS331/314

£40.80

INC VAT

Code: FDS331/314

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

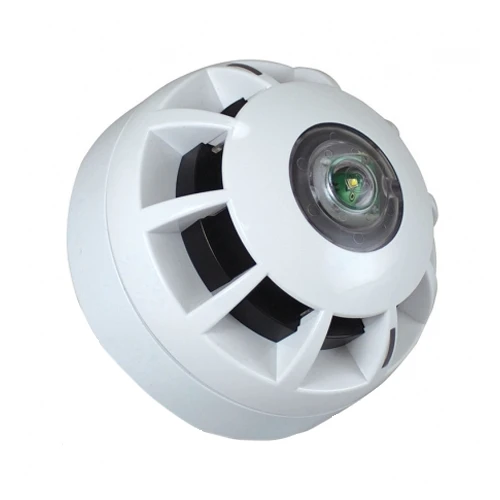

The C-TEC CA451A/SW is a white compact ceiling VAD and sounder using the C-TEC CAST analogue addressable protocol.

LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13
Provides 'C-3-8' light distribution when ceiling mounted
Can also provide 'W-3-3.1' light distribution when wall mounted
Impressive 96dB(A) sound output @ 1m
Onboard short-circuit loop isolator
12.5mA typical alarm current (460A typical quiescent current) @ 27-40V DC (VAD lit, sounder on max)
Group addressing facility allows multiple devices to be operated simultaneously
4 selectable volume levels and 31 selectable tones
IP21C rated

Approvals/certifications: LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication certified to EN54-13
Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Provides C-3-8 rated coverage coverage when ceiling mounted. Can also be wall mounted to provide W-3-3.1 rated coverage
VAD category & coverage:C-3-8 or W-3-3.1
Flash rate & colour:0.5Hz / White
Supply/operating voltage:27 to 40V DC
Quiescent current: 460A typical
Nominal SPL (Sound Pressure Level):96dB(A) when set to tone 1
Alarm current:12.5mA @ 27 to 40V DC (VAD lit, Sounder on max)
Indicators: Polling (red LED)
Product dimensions (mm):102mm diameter x 63mm deep
IP Rating:IP21C (Type A)
Weight:175g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)

C-TEC CA451A/SW CAST White C-3-8 Compact ceiling VAD cw 96dB Sounder Data Sheet

Click here to download
