C-TEC CA430A/DR/65 CAST Red Hi-Output IP55 100dB Wall Sounder cw Deep Base

Name: C-TEC CA430A/DR/65 CAST Red Hi-Output IP55 100dB Wall Sounder cw Deep Base
Brand: C-tec
Price: 42.6 GBP
Availability: InStock

Code: FDS331/310

£42.60

INC VAT

Code: FDS331/310

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

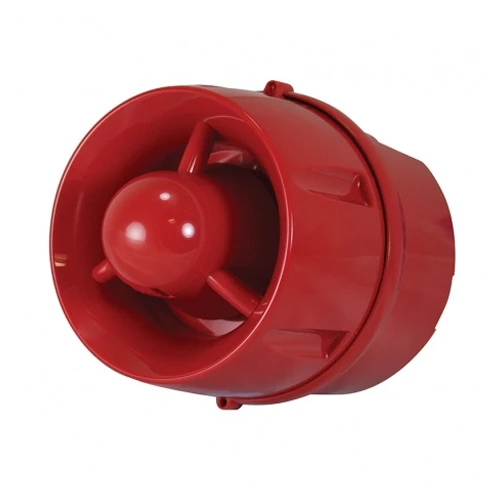

The C-TEC CA430A/DR/65 is a red weatherproof wall mounted high output addressable wall sounder with IP55 deep base designed for use on C-TEC CAST protocol analogue addressable fire alarm systems.

LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13
Impressive 100dB(A) sound output @ 1m
Onboard short-circuit loop isolator
6.5mA typical alarm current (460A typical quiescent current) @24-40V DC (Sounder on max)
Group addressing facility allows multiple devices to be operated simultaneously
4 selectable volume levels and 31 selectable tones
IP55C rated

Approvals/certifications: LPCB certified to EN54-3 & 17 and Kiwa Telefication certified to EN54-13
Protocol/compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation: Designed to be wall mounted. IP55 rated and suitable for use outdoors
Supply/operating voltage:24 to 40V DC
Quiescent current:460A typical
Nominal SPL (Sound Pressure Level):100dB(A) when set to tone 1
Alarm current: 6.5mA typical @ 24-40V DC (Sounder on max)
Indicators: Polling (red LED)
Product dimensions (mm):114mm diameter x 131mm deep
IP Rating:IP55C (weatherproof)
Weight:300g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)

C-TEC CA430A/DR/65 CAST Red Hi-Output IP55 100dB Wall Sounder cw Deep Base Data Sheet

Click here to download
