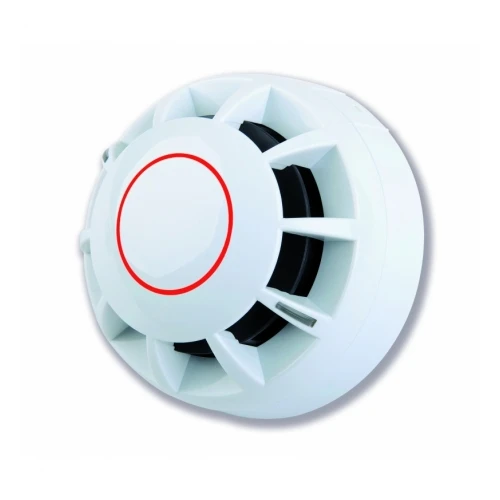

C-TEC CA402 CAST Programmable Heat Detector

A high quality programmable heat detector for use with C-TEC's XFP & ZFP 'CAST' protocol Addressable Fire Panels.

• LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13

• Can be programmed to operate as a Class A1R (rate of rise), Class A2 (64C fixed temperature) or Class B (76C fixed temperature) heat detector. Default setting is A2.

• Onboard short circuit loop isolator

• Includes two 8mm x 2mm ultra-bright red LED indicating strips

• Different sensitivities can be selected for different times of the day (day/night, building occupied/unoccupied etc)

• 5mA typical alarm current (370uA typical quiescent) @ 22-40V DC

• Programmable multi-function status LED

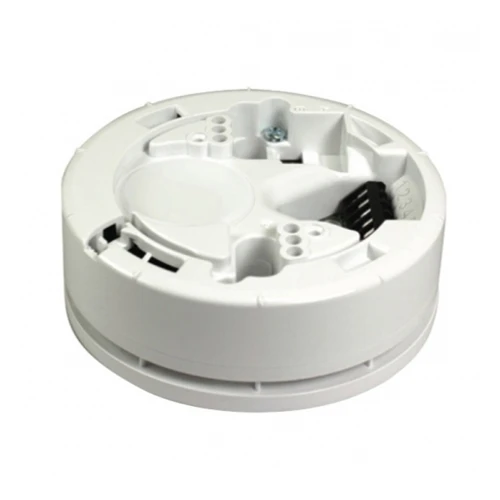

• Compatible with C-TEC's CA408 CAST base c/w integrated locking mechanism & ID tag

Product Specifications

• Approvals/certifications: LPCB certified to EN54-5 & 17 and Kiwa Telefication certified to EN54-13

• Compatibility: Compatible with C-TEC's XFP/ZFP CAST Protocol Addressable Fire Panels

• Type: Class A1R, Class A2 or Class B Heat (Programmable)

• Application/operation: Generates an alarm when a specific temperature is reached (Modes 1, 2 & 3). In Mode 1 also generates an alarm when a sudden rise in temp is detected

• Sensitivity: Mode 1 (A1R): Rate of Rise and 56C fixed; Mode 2 (A2): 62C fixed; Mode 3 (B): 74C fixed. Selectable at the panel

• Supply wiring: 2-wire, polarity sensitive

• Supply/operating voltage: 22 to 40V DC

• Quiescent current: 370A typical @ 22 to 40V DC

• Alarm current: 5mA typical (LEDs illuminated) @ 22 to 40V DC

• Indicators: 2 LED indicator strips emitting red light when in alarm offering 360 visibility. Optional remote LED

• Connections: Via CA408 base: 1 +Ve IN (analogue swich); 2 +Ve OUT (analogue switch); 3 Remote LED +Ve; 4 0V; 5 0V; 6 Screen; 7 Screen

• Product dimensions (mm): 102.2mm diameter x 37mm deep (detector only); 102.2mm diameter x 57.5mm deep (detector in base)

• Construction & finish: White polycarbonate casing rated to UL94 V-2 with nylon parts

• IP Rating: IP42

• Weight: 99g (not in base); 154g (in base)

• Operating conditions/temperature: -20C to +85C

• Notes: Requires a CA408 CAST base. CA408R relay base also available
