Arctic Hayes Draft Smoke Stick Pen

These Smoke Stick Pens are packaged with six refills capable of testing aspiring smoke detection systems. This product is the first smoke pen on the market to offer precise, pencil-thin control for smoke testing. With up to 3 hours of controllable smoke.

You are able to use these long-lasting smoke sticks for finding drafts, gas spillages or testing aspirating smoke detection systems. Arctic Hayes smoke pen is non-corrosive and non-toxic. The pen is able to test slight changes in airflow and simplify mandatory spillage checks after re-fitting a boiler.

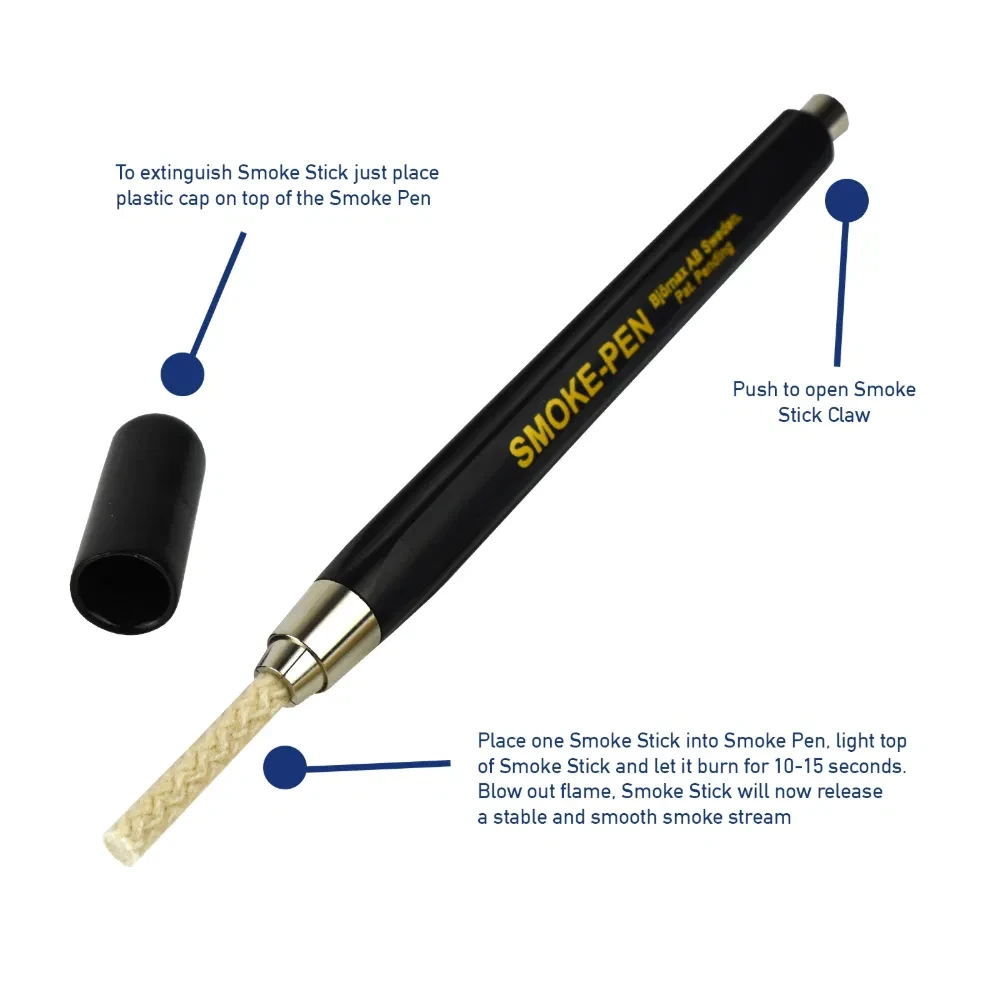

How to use these Smoke Sticks

• Remove the black cap from the end of the smoke stick

• Press the chrome button at the end of the stick to open the jaws and place the wick in the pen.

• Adjust the wick until around 10mm is exposed.

• Light the wick and allow it to burn for 10 to 15 seconds before blowing out the flame.

• The draft smoke stick will then deliver a stable and continuous stream of smoke.

• Replace the cap to extinguish the wick.

• To re-use the pen, simply adjust the length of the wick and repeat the steps above.

Benefits of the Smoke Stick Pen

• ASD testing

• Detect drafts

• Smoke alarm tests

• Air-tightness Tests

• Ducting and cabinet testing

• Extraction arm flow testing

• Testing slight air-movement

• Testing gas spillage

• Mandatory CO spillage checks of boiler/case sills after fitting or re-fitting.

• Benefits of Smoke Sticks / Smoke Tools

• Precise, pencil-thin smoke pattern.

• Up to 3 hours of controllable/stop-start smoke.

• Non-corrosive and non-toxic.

• First of its kind, an exclusive smoke pen product.

• Complete with 6 smoke refills

• Comes in a 3 or 6 Refill Smoke Kit

• Test aspirating smoke detectors such as the VESDA system

Smoke pen refill kits are used to refill our Smoke Sticks which can be found here.

Testing Your Aspirating Smoke Detection System Using a Smoke Pen

An aspirating smoke detector (ASD) or 'Sniffer Unit' is a system often used in fire protection. An ASD system consists of one central detection unit which will draw air through numerous pipes to detect carbon/smoke.

ASD units are capable of detecting smoke before it is visible to the naked eye and are significantly quicker than beam or point smoke detectors. This allows for faster response times when operating high-risk applications.

To get further information on Aspirating Smoke Detectors, click here. You can also view VESDA aspirating smoke alarms by clicking here.

"The average speed of detection can be up to 30 times quicker than a conventional detection system." source

Detecting Drafts How to Find Drafts

This Draft Smoke Stick is perfect for the conscientious home/business owner. This easy-to-use product will allow you to track down areas in the home that need resealing without wasting time or money. For more advice when detecting drafts through windows, attic hatches, electrical sockets, pressurization tests and more, visit energy.gov.

With these smoke sticks being able to identify small holes, drafts and leakage in pipework, we often supply these into the plumbing industry too. Here are 6 ways to find if you have a hidden water leak
