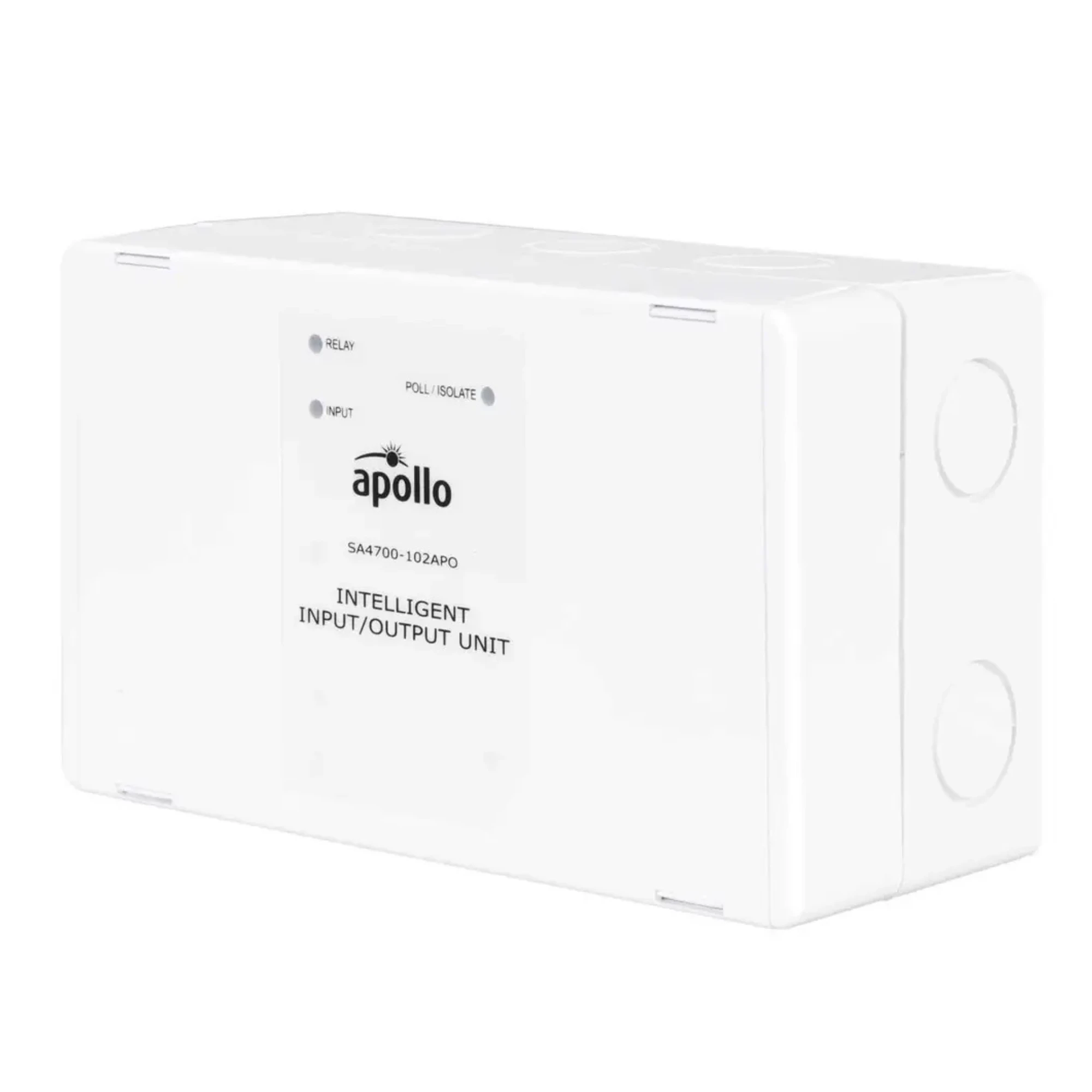

Apollo SA4700-102APO | Intelligent Input/Output Unit

Name: Apollo SA4700-102APO | Intelligent Input/Output Unit
Brand: Apollo
Price: 58.14 GBP
Availability: InStock

£58.14

INC VAT

Code: FDS100/421

Have a question about this? Click here

Overview Downloads & Resources

Apollo SA4700-102APO Intelligent Input/Output Unit

Backwards compatible with Apollo XP95 or Discovery protocols, the SA4700-102APO is Apollo CoreProtocol ready and replaces the Apollo 55000-847APO.

Featuring Apollo's new "Faceplate style" enclosure, the Apollo SA4700-102APO can be mounted in the supplied back-box or flush mounted using a standard double gang recessed 30mm box.

The SA4700-102APO Intelligent Input/Output Unit provides a voltage-free, double pole changeover (DPCO) relay output, and a single monitored switch input.

Features

Apollo SA4700-102APO
It can report fault, switch open and switch closed levels
Three visible LED's
Loop-Powered
Capable of switching up to 30V at 1A

Specification

Supply voltage (VminVmax): 1735 V dc
Protocol: 513 V peak to peak
Power-up surge current: 900 A
Quiescent current: 500 A
Max current LEDs On: 3.5 mA
Max current LEDs disabled: 500 A
Relay output contact rating: 1 A at 30 V dc or ac
Operating temperature: 40C to + 70C
Humidity: 0% to 95% RH (no condensation or icing)
Vibration, impact and shock: EN 54-17, EN 54-18
IP rating: IP52
Standards and approvals: EN 54-17, EN 54-18, CPR, LPCB, VdS, BOSEC, SBSC, FG
Dimensions: 60 mm height x 150 mm width x 90 mm depth
Weight: 244 g

Apollo SA4700-102APO | Intelligent Input/Output Unit Data Sheet

Click here to download

Apollo SA4700-102APO Intelligent Input/Output Unit

Backwards compatible with Apollo XP95 or Discovery protocols, the SA4700-102APO is Apollo CoreProtocol ready and replaces the Apollo 55000-847APO.

Featuring Apollo's new "Faceplate style" enclosure, the Apollo SA4700-102APO can be mounted in the supplied back-box or flush mounted using a standard double gang recessed 30mm box.

The SA4700-102APO Intelligent Input/Output Unit provides a voltage-free, double pole changeover (DPCO) relay output, and a single monitored switch input.

Features

Apollo SA4700-102APO
It can report fault, switch open and switch closed levels
Three visible LED's
Loop-Powered
Capable of switching up to 30V at 1A

Specification

Supply voltage (VminVmax): 1735 V dc
Protocol: 513 V peak to peak
Power-up surge current: 900 A
Quiescent current: 500 A
Max current LEDs On: 3.5 mA
Max current LEDs disabled: 500 A
Relay output contact rating: 1 A at 30 V dc or ac
Operating temperature: 40C to + 70C
Humidity: 0% to 95% RH (no condensation or icing)
Vibration, impact and shock: EN 54-17, EN 54-18
IP rating: IP52
Standards and approvals: EN 54-17, EN 54-18, CPR, LPCB, VdS, BOSEC, SBSC, FG
Dimensions: 60 mm height x 150 mm width x 90 mm depth
Weight: 244 g
