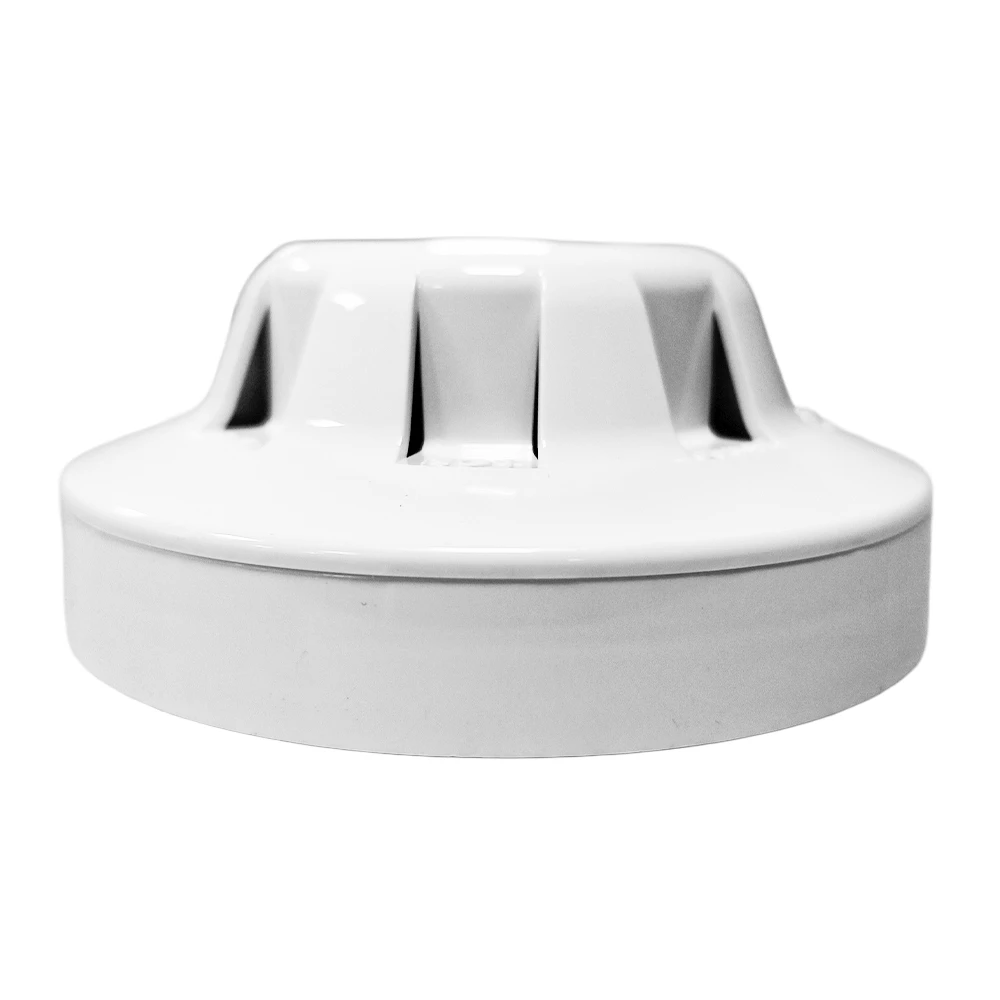

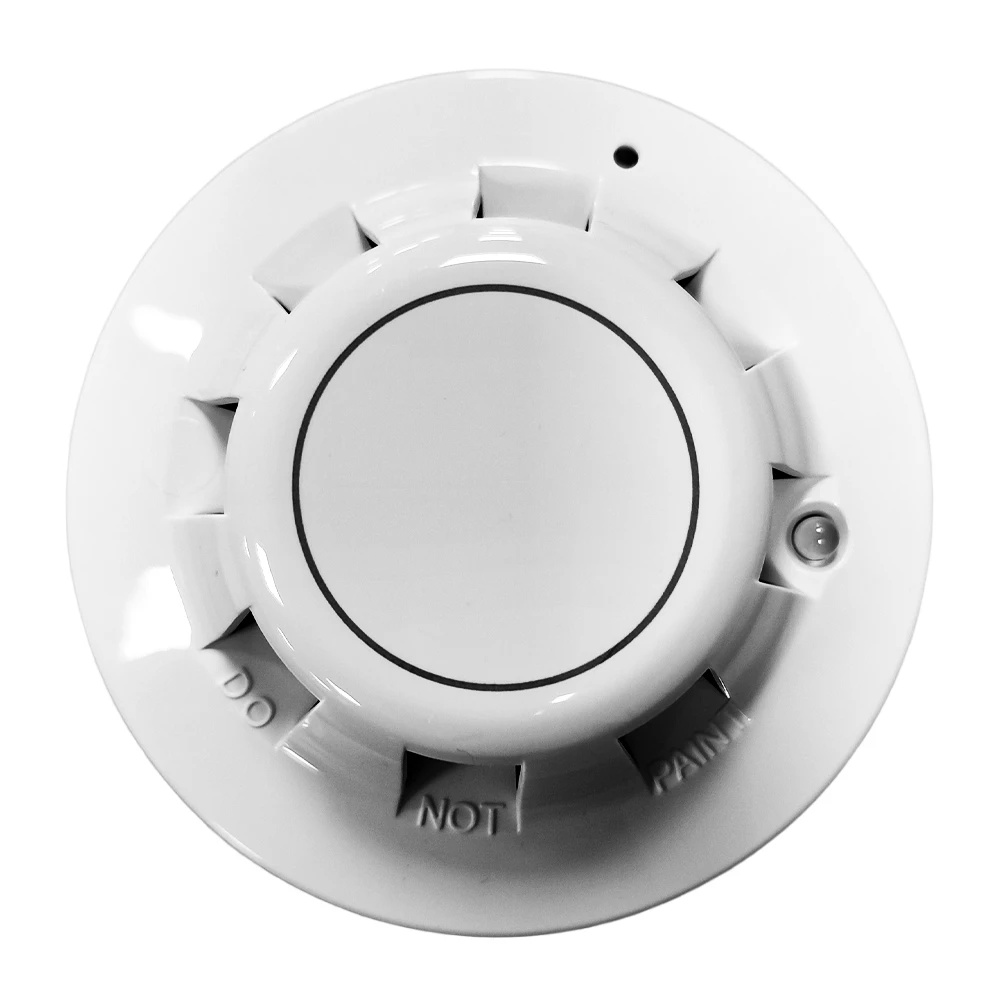

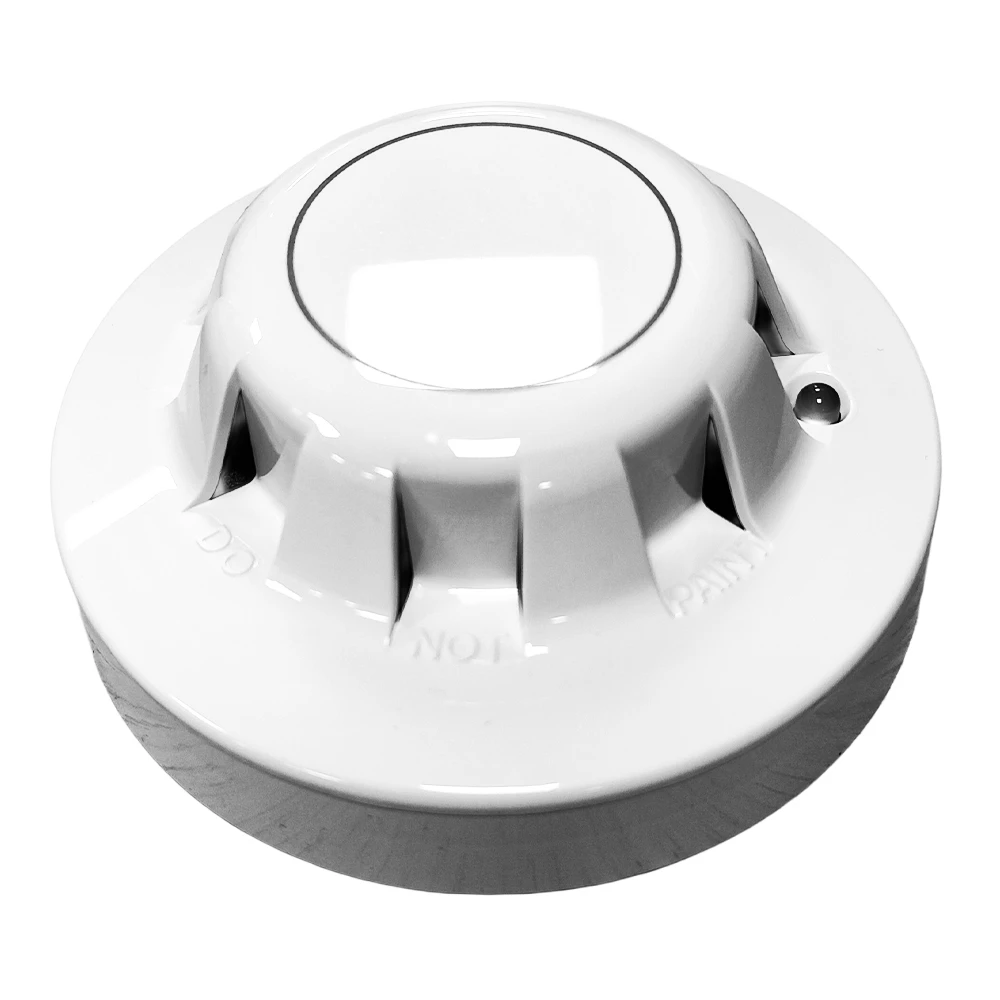

The Apollo 55000-317APO Series 65 Optical Smoke Detector is a reliable and high-performance solution designed for use with most conventional alarm systems.
Supplied complete with a diode base, this smoke detector uses the scattered light principle to detect smoke entering the chamber, providing accurate and quick responses to potential fire hazards.
It is particularly effective in responding to slow-burning, smouldering fires, making it an ideal choice for areas such as bedrooms and escape routes where early detection is crucial.
The detector remains unaffected by wind or atmospheric pressure, ensuring consistent performance in varying environmental conditions.
Additionally, it offers a flashing LED and a magnet-operated test switch option on selected detectors, allowing for easy maintenance and testing.
This Series 65 Optical Smoke Detector is versatile, compatible with a wide range of conventional alarm systems, and combines advanced technology with practical features to ensure dependable fire safety in both residential and commercial settings.
Apollo 55000-317APO
Responds well to slow-burning, smouldering fires
Well suited for bedrooms and escape routes
Unaffected by wind or atmospheric pressure
Base included
Technical Specification | Details |
---|---|
General | |
Warranty | 10 years |
Applications | B&Bs/Guest Houses, Bedrooms, Cafes, Restaurants, Retail, Small to Medium Buildings, Care Homes, HMOs, Hospitals, Hotels, Industrial Premises, Large Vessels, Listed Buildings, Medium to Large Buildings, Offices, University Campuses, Warehouses |
Fire Type | Slow Burning, Smouldering Fires |
Mechanical | |
Colour | White |
Finish | Gloss |
Sensor Configuration | Horizontal Optical Bench Housing Infra-red Emitter and Sensor, Radially Arranged to Detect Forward Scattered Light |
Weight | 0.22lbs / 99g |
Materials Housing | Polycarbonate |
Materials Terminals | Nickel-Plated Stainless Steel |
Product Length | 42mm (1.65in) |
Product Diameter | 100mm (3.94in) |
Detection Principle | Photo-electric Light Scattering |
Conformance | |
Standards | EN 54-7 |
Approvals | BOSEC, CPR, FG, LPCB, VdS |
Performance | |
Chamber Type | Chevron |
Electrical | |
Power-up Surge Current | 0.115mA |
Maximum Power-up Time | 30 seconds |
Status Indicator - Alarm | Red |
Status Indicator - Fault | Off |
Quiescent Current | 50μA |
Quiescent Current Tested at | 24V DC |
Supply Voltage (Max) | 33V DC |
Supply Voltage (Min) | 9V DC |
Supply Voltage (Vmin-Vmax) | 9 to 33V DC |

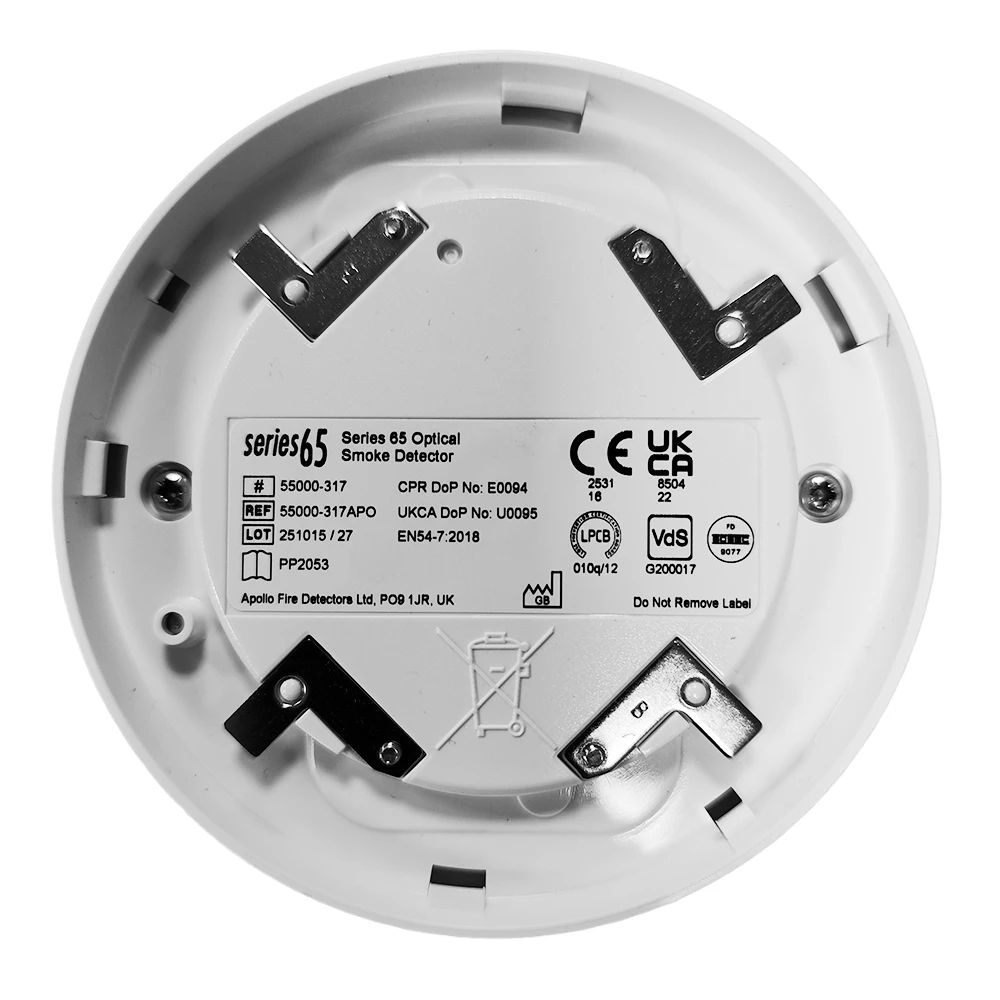

Terminal Functions L2 | L2 Line in & Out Negative |
Terminal Functions L1 In | L1 In (Positive) |
Terminal Functions L1 Out | L1 Out (Positive) |
Terminal Functions -R | Remote Indicator Negative Connection |
Polarity | L1 & L2 are Polarity Insensitive |
Battery Powered | No |
Sampling Frequency | Once Every 3 Seconds |
Holding Voltage (Min) | 6V |
Minimum Voltage to Light Alarm LED | 12V |
Alarm Reset Time | 1 Second |
Alarm Load | 420Ω in Series with 2V Drop |
Environmental | |
Humidity (Max) | 95% RH |
Humidity (Min) | 0% RH (No Condensation or Icing) |
Operating Temperature | -20°C to 60°C |
Operating Temperature (Max) | 60°C |
Operating Temperature (Min) | -20°C |
IP Rating Value | IP23D |
Storage Temperature (Max) | 80°C |
Storage Temperature (Min) | -30°C |
Storage Temperature | -30°C to 80°C |
Effect of Wind Speed | None |
The Apollo 55000-317APO Series 65 Optical Smoke Detector is a reliable and high-performance solution designed for use with most conventional alarm systems.
Supplied complete with a diode base, this smoke detector uses the scattered light principle to detect smoke entering the chamber, providing accurate and quick responses to potential fire hazards.
It is particularly effective in responding to slow-burning, smouldering fires, making it an ideal choice for areas such as bedrooms and escape routes where early detection is crucial.
The detector remains unaffected by wind or atmospheric pressure, ensuring consistent performance in varying environmental conditions.
Additionally, it offers a flashing LED and a magnet-operated test switch option on selected detectors, allowing for easy maintenance and testing.
This Series 65 Optical Smoke Detector is versatile, compatible with a wide range of conventional alarm systems, and combines advanced technology with practical features to ensure dependable fire safety in both residential and commercial settings.
Apollo 55000-317APO
Responds well to slow-burning, smouldering fires
Well suited for bedrooms and escape routes
Unaffected by wind or atmospheric pressure
Base included
Technical Specification | Details |
---|---|
General | |
Warranty | 10 years |
Applications | B&Bs/Guest Houses, Bedrooms, Cafes, Restaurants, Retail, Small to Medium Buildings, Care Homes, HMOs, Hospitals, Hotels, Industrial Premises, Large Vessels, Listed Buildings, Medium to Large Buildings, Offices, University Campuses, Warehouses |
Fire Type | Slow Burning, Smouldering Fires |
Mechanical | |
Colour | White |
Finish | Gloss |
Sensor Configuration | Horizontal Optical Bench Housing Infra-red Emitter and Sensor, Radially Arranged to Detect Forward Scattered Light |
Weight | 0.22lbs / 99g |
Materials Housing | Polycarbonate |
Materials Terminals | Nickel-Plated Stainless Steel |
Product Length | 42mm (1.65in) |
Product Diameter | 100mm (3.94in) |
Detection Principle | Photo-electric Light Scattering |
Conformance | |
Standards | EN 54-7 |
Approvals | BOSEC, CPR, FG, LPCB, VdS |
Performance | |
Chamber Type | Chevron |
Electrical | |
Power-up Surge Current | 0.115mA |
Maximum Power-up Time | 30 seconds |
Status Indicator - Alarm | Red |
Status Indicator - Fault | Off |
Quiescent Current | 50μA |
Quiescent Current Tested at | 24V DC |
Supply Voltage (Max) | 33V DC |
Supply Voltage (Min) | 9V DC |
Supply Voltage (Vmin-Vmax) | 9 to 33V DC |
Terminal Functions L2 | L2 Line in & Out Negative |
Terminal Functions L1 In | L1 In (Positive) |
Terminal Functions L1 Out | L1 Out (Positive) |
Terminal Functions -R | Remote Indicator Negative Connection |
Polarity | L1 & L2 are Polarity Insensitive |
Battery Powered | No |
Sampling Frequency | Once Every 3 Seconds |
Holding Voltage (Min) | 6V |
Minimum Voltage to Light Alarm LED | 12V |
Alarm Reset Time | 1 Second |
Alarm Load | 420Ω in Series with 2V Drop |
Environmental | |
Humidity (Max) | 95% RH |
Humidity (Min) | 0% RH (No Condensation or Icing) |
Operating Temperature | -20°C to 60°C |
Operating Temperature (Max) | 60°C |
Operating Temperature (Min) | -20°C |
IP Rating Value | IP23D |
Storage Temperature (Max) | 80°C |
Storage Temperature (Min) | -30°C |
Storage Temperature | -30°C to 80°C |
Effect of Wind Speed | None |
