Kentec Sigma Conventional Fire Alarm Panel | 2, 4 or 8 Zone

Name: Kentec Sigma Conventional Fire Alarm Panel | 2, 4 or 8 Zone
Brand: Kentec
SKU: FDS900/125
Price: 274.26 GBP
Availability: InStock

£274.26

INC VAT

Code: FDS900/125

Zone

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

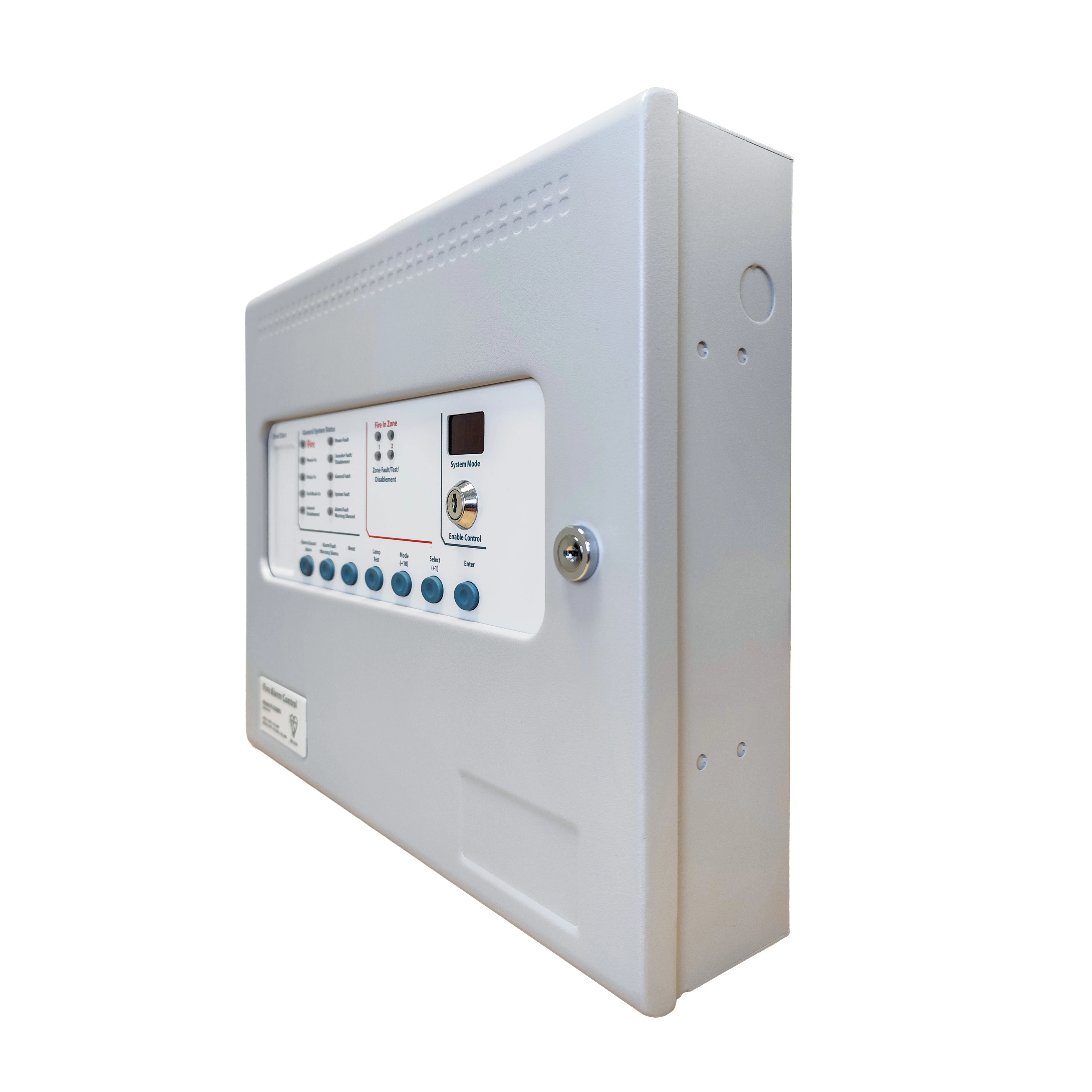

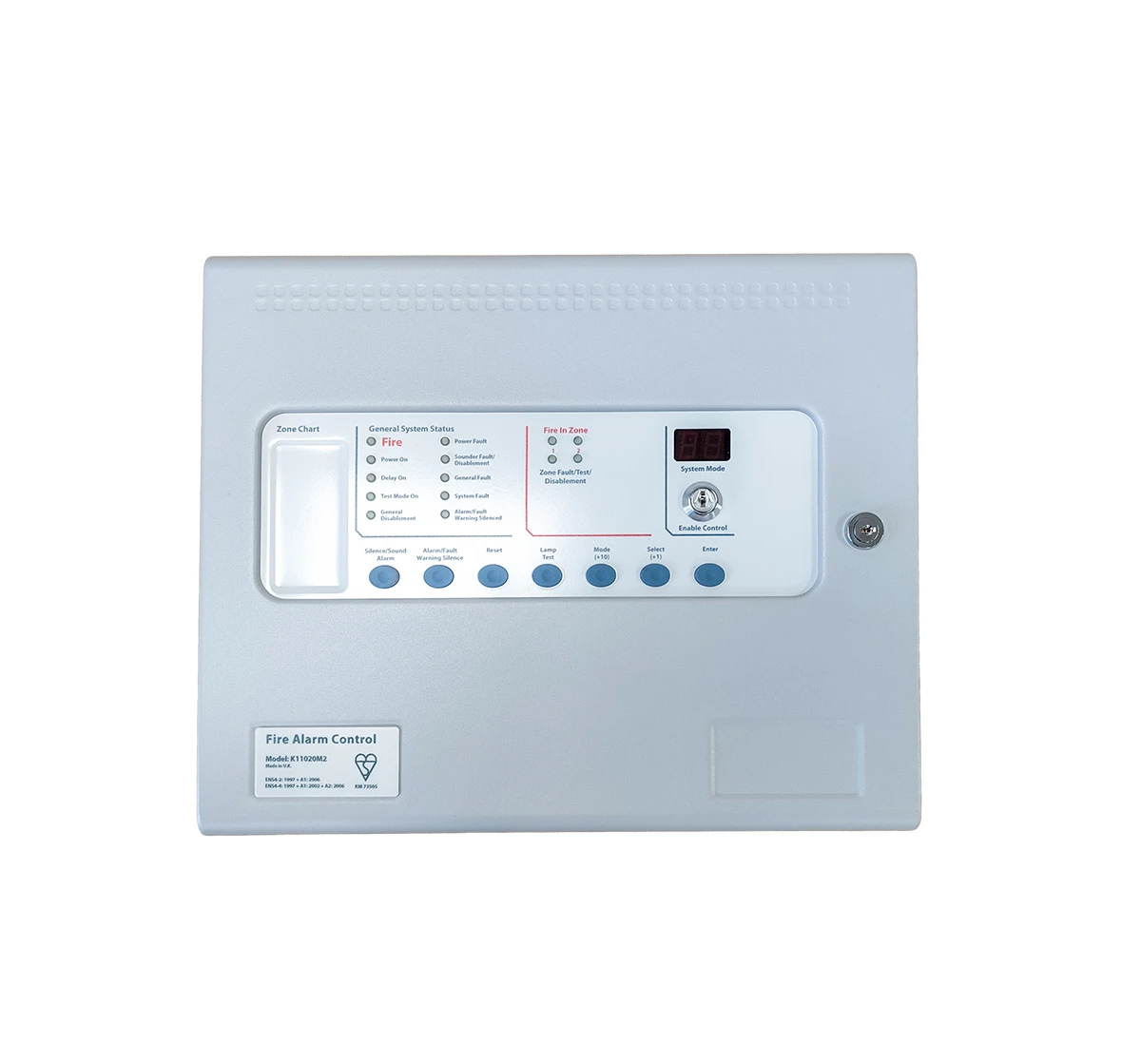

Kentec KL11020M2 Sigma CP Conventional Fire Control Panels with LCMU (2, 4 & 8 Zones)

The Sigma CP range of conventional fire control panels is designed for the most demanding conventional fire detection and alarm system applications.

Easy to install, the Sigma CP is available in 2, 4, and 8 detection zones. The extensive range of configuration features ensures suitability for new installations or panel replacements on older systems.

Configuration options are stored in non-volatile memory and can be easily accessed via an intuitive user interface, allowing for quick viewing and modification of system settings.

The Sigma CP control panels are compatible with most standard conventional detectors, call points, and sounders from leading brands such as Apollo and Hochiki.

2, 4, or 8 detection zones
2 sounder output circuits
Fully programmable via intuitive menu options
Adjustable sounder delay time
3 on-board relay outputs
Class change input for school and industrial settings
Flexible sounder configuration options
Zonal sounder delay – detectors only or call points only
Coincidence input selection for enhanced alarm verification
I.S. barrier selection by zone for intrinsically safe applications
Short circuit fire detection by zone
Non-latching & silent zone options
Zone input delay for false alarm management
Active EOL (End of Line) included

Specification	Details
Construction	1.2mm mild sheet steel
IP Rating	IP30
Finish	Epoxy powder coated
Colour (lid & box)	BS 00 A 05 grey - fine texture
Colour (control panel & labels)	RAL 7047 light grey - satin
Weight	6kg
Supply Voltage	230V AC (+10%/-15%)
Mains Supply Fuse	1.6 Amp 250V
Power Supply DC Rating	24V 3 Amps
Maximum Battery Size	7Ah 12V (2 per panel)
Fault Contract Rating	30V DC 1 Amp
Local Fire Contract Rating	30V DC 1 Amp
Fire Contract Rating	30V DC 1 Amp
Sounder Output Rating	0.5A per output (max 1.6A overall)
Detection Zone Current	1.6 milliamps
Detection Zone EOL Resistor	6k8 5%
Active EOL	K14606K (optional)
Sounder Output EOL Resistor	10k 5%
Cable Capacity	2.5mm² per terminal
Operating Temperature	-5°C to +40°C
Operating Humidity	<95% (non-condensing)

Kentec Sigma KL11020M2 Manual

Click here to download

Overview

Features

Technical Data

Specification	Details
Construction	1.2mm mild sheet steel
IP Rating	IP30
Finish	Epoxy powder coated
Colour (lid & box)	BS 00 A 05 grey - fine texture
Colour (control panel & labels)	RAL 7047 light grey - satin
Weight	6kg
Supply Voltage	230V AC (+10%/-15%)
Mains Supply Fuse	1.6 Amp 250V
Power Supply DC Rating	24V 3 Amps
Maximum Battery Size	7Ah 12V (2 per panel)
Fault Contract Rating	30V DC 1 Amp
Local Fire Contract Rating	30V DC 1 Amp
Fire Contract Rating	30V DC 1 Amp
Sounder Output Rating	0.5A per output (max 1.6A overall)
Detection Zone Current	1.6 milliamps
Detection Zone EOL Resistor	6k8 5%
Active EOL	K14606K (optional)
Sounder Output EOL Resistor	10k 5%
Cable Capacity	2.5mm² per terminal
Operating Temperature	-5°C to +40°C
Operating Humidity	<95% (non-condensing)
