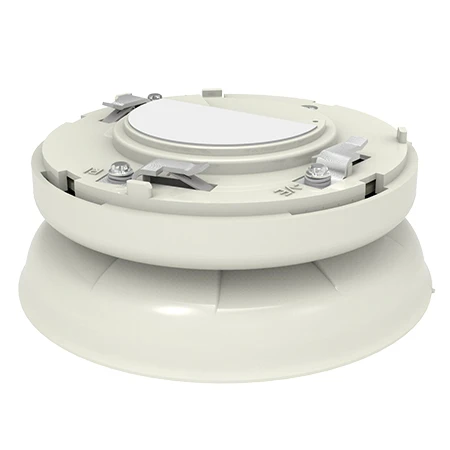

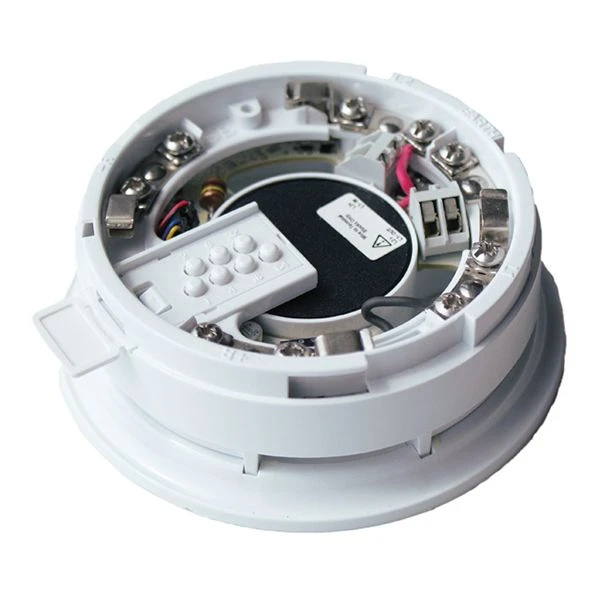

Apollo 45681-702APO | Apollo Discovery Sounder Base w/ Isolator

Name: Apollo 45681-702APO | Apollo Discovery Sounder Base w/ Isolator
Brand: Apollo
Price: 38.7 GBP
Availability: InStock

Code: FDS130/462

£38.70

INC VAT

Code: FDS130/462

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

Discovery Sounder Base with integral isolated mounting base.

Designed for indoor use.

15 Pairs of Tones
EN54-3 Sounder
Multiple Selectable Output Volumes
Discovery (works on XP95 & Core Protocol)
XPert7 Addressing
4" Isolated Base EN54-17
V d S Approved

15 pairs of tones.
Tones can be used for other purposes in addition to warning of fire, ideal for schools.
Enables soft start option, ideal for hospitals and nursing homes.
Unique acoustic and visual indicator self-test.
EN54-3 Sounder
Multiple Selectable Output Volumes
Discovery (works on XP95 & CoreProtocol)
XPert7 Addressing
4" Isolated Base EN54-17
VdS Approved

General	Warranty 10 year
Performance	Tone(s) 15
Mechanical	Colour White Product length 38mm Product diameter 115mm Weight 140g Product length 1.5in Product diameter 4.53in
Conformance	Standards EN 54-3 EN 54-17 Approvals CPR LPCB VdS
Electrical	Terminal functions L2 +L2 Loop in & out positive Terminal functions L1 in -L1 in Loop (isolated) negative Polarity L1 & L2 are polarity sensitive Protocol voltage (max) 9V Protocol voltage (min) 5V Protocol voltage 5 to 9V peak to peak Quiescent current 370μA Quiescent current tested at 24V dc
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -20 to 60°C Operating temperature (max) 60°C Operating temperature (min) -20°C IP rating Value IP21C Operating temperature (min) -4°F Operating temperature (max) 140°F Operating temperature -4 to 140°F

Apollo 45681-702APO | Apollo Discovery Sounder Base w/ Isolator Data Sheet

Click here to download

Overview

Features

Technical Data

General	Warranty 10 year
Performance	Tone(s) 15
Mechanical	Colour White Product length 38mm Product diameter 115mm Weight 140g Product length 1.5in Product diameter 4.53in
Conformance	Standards EN 54-3 EN 54-17 Approvals CPR LPCB VdS
Electrical	Terminal functions L2 +L2 Loop in & out positive Terminal functions L1 in -L1 in Loop (isolated) negative Polarity L1 & L2 are polarity sensitive Protocol voltage (max) 9V Protocol voltage (min) 5V Protocol voltage 5 to 9V peak to peak Quiescent current 370μA Quiescent current tested at 24V dc
Environmental	Humidity (max) 95% RH Humidity (min) 0% RH Operating temperature -20 to 60°C Operating temperature (max) 60°C Operating temperature (min) -20°C IP rating Value IP21C Operating temperature (min) -4°F Operating temperature (max) 140°F Operating temperature -4 to 140°F
