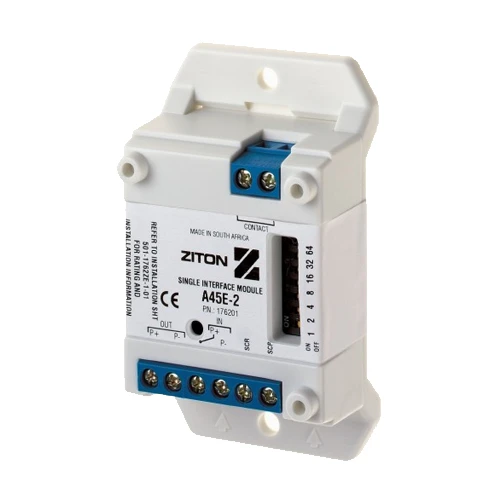

The Ziton A45E-2 Addressable Interface Module is manufactured for installation within the enclosures of equipment associated with fire detection systems. The unit is installed directly onto the ZP loop wiring and carries a system address. The signals enables from associated equipment to be interfaced into the fire alarm system.

Input signals are fully displayed at the control panel and can be programmed to activate any system output. When routing loop wiring and installing interfaces adjacent to input equipment, system integrity is then decreased and the need for long spur wiring between equipment terminals and the fire alarm interface is eliminated.

• Manufactured for installation within the enclosures of equipment associated with fire detection systems

• Installed directly onto the ZP loop wiring and carries a system address

• The signals enables from associated equipment to be interfaced into the fire alarm system

• Complying with EN54 Part 18 the A45E-2 can be installed singly, or used in groups to provide multiway inputs from equipment such as volt free, zonal outputs from conventional fire alarm systems or flow valves from sprinkler installations

• Housed in a low profile, single width moulding

• Designed to clip directly onto a standard DIN rail fixing

• Can be installed in a SMB-DIN100 box (two unit capacity) or a SMB-DIN200 box (four unit capacity)

• Red LED indicator positioned on the front moulding flashes when the interface has operated

• Provides clear identification of the input signal source

• Installed as part of an analogue addressable system

• Up to 127 line devices can be connected to each of the control panel loops

• All loop devices incorportae switch settings
