Code: FDS998/118

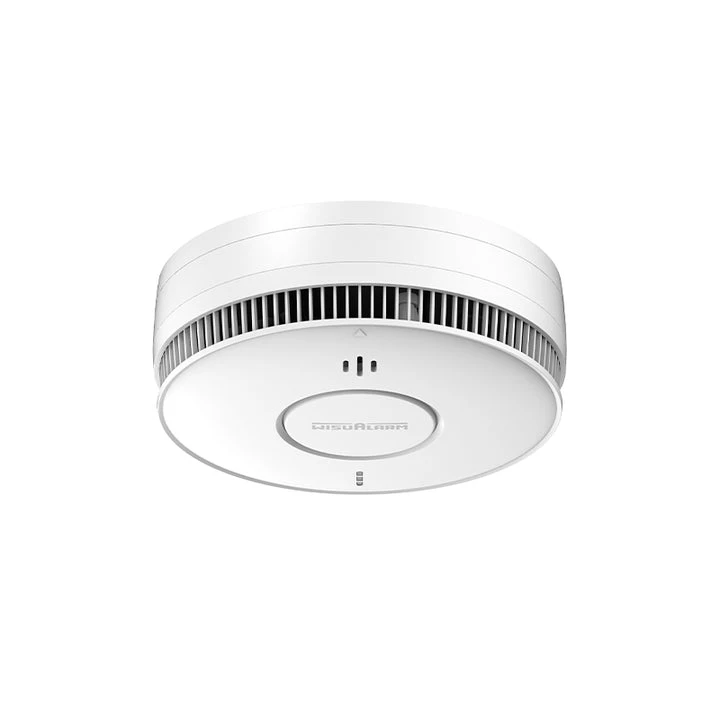

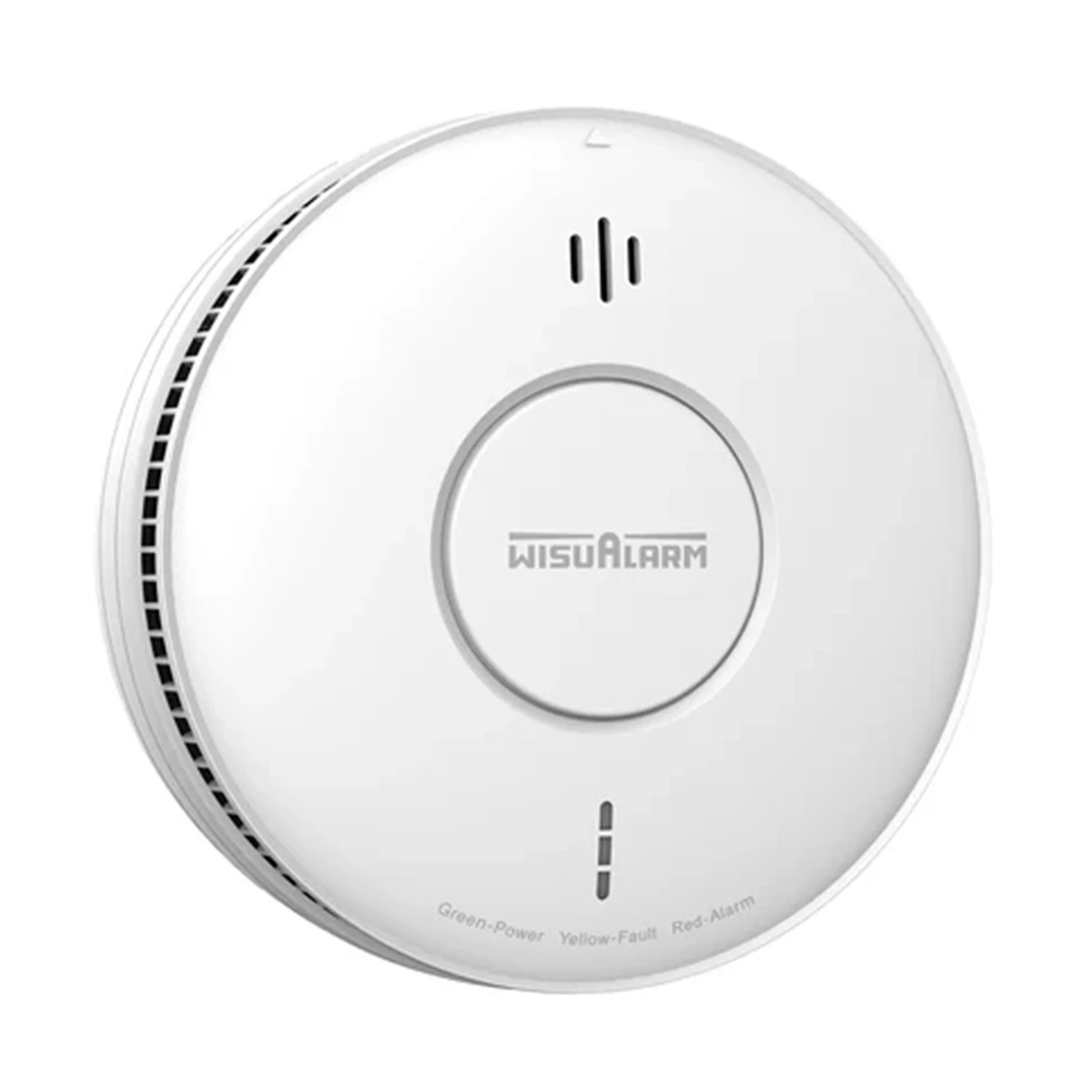

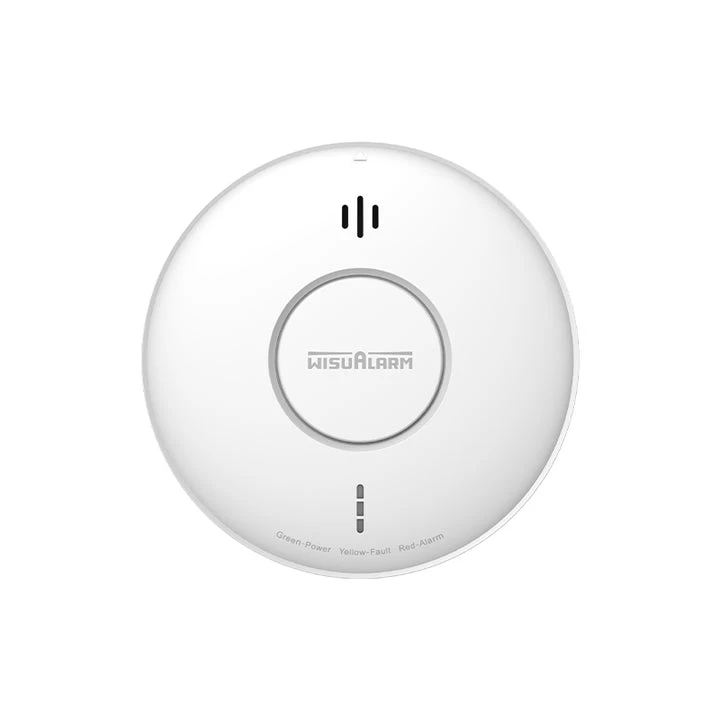

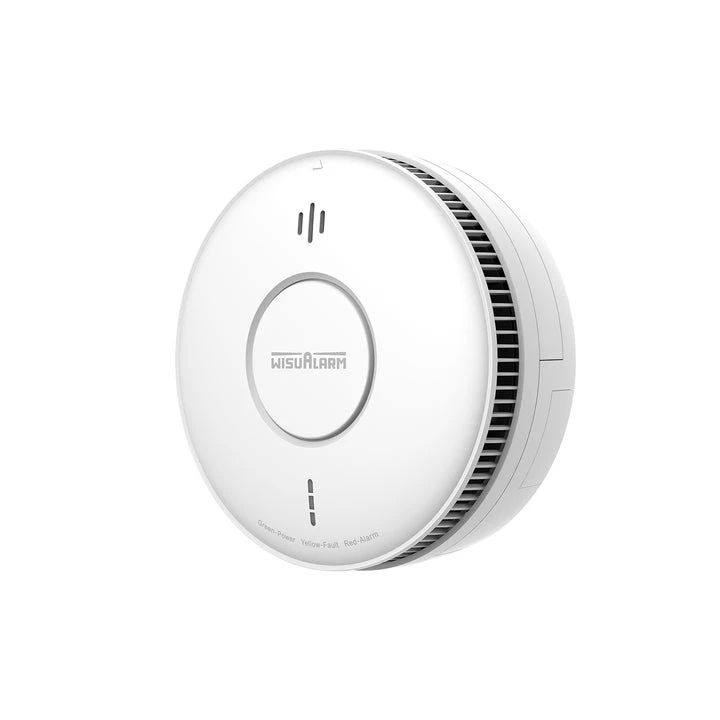

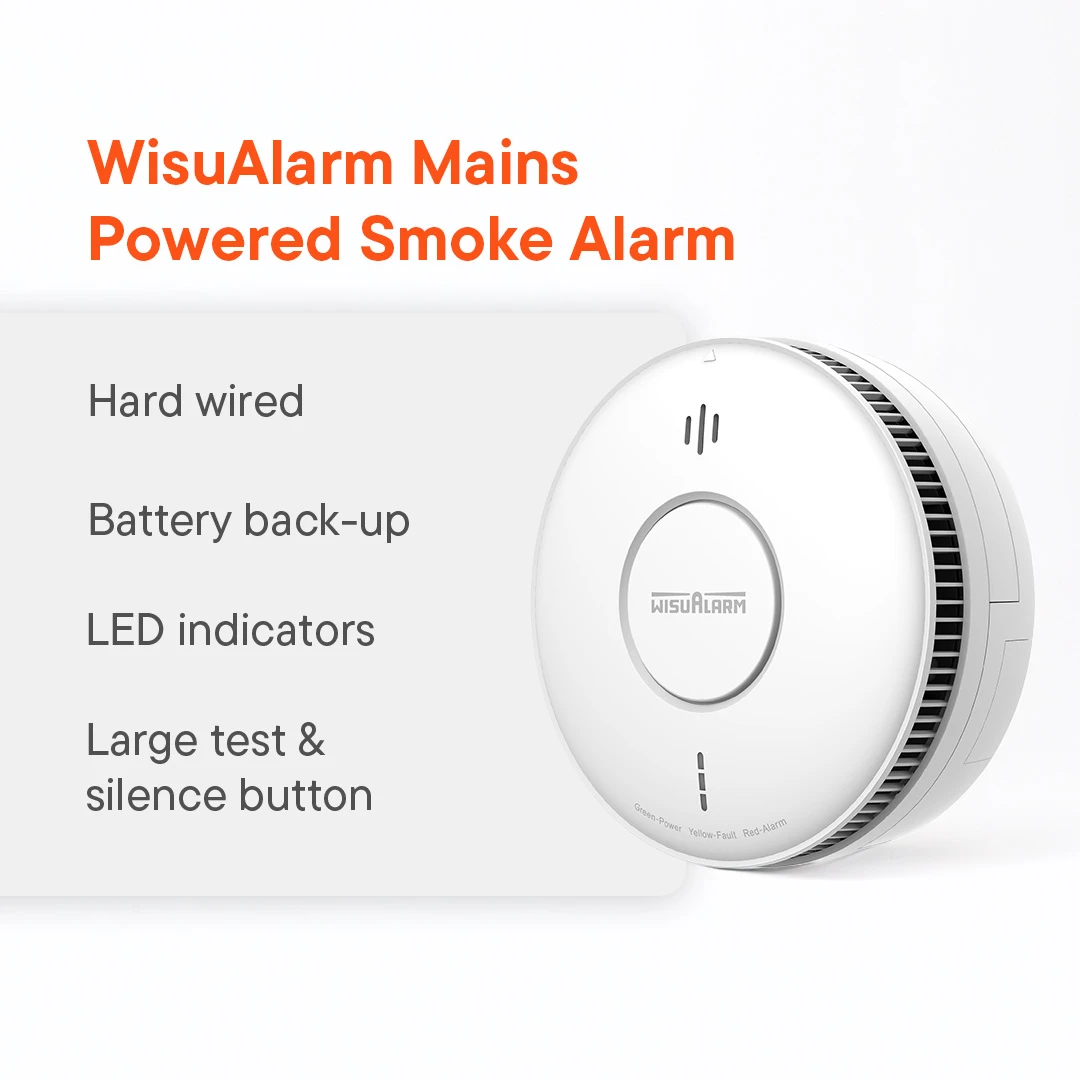

Combining state-of-the-art technology with a stylish modern design, the WisuAlarm mains-powered smoke detector provides a more economical solution to protecting your home.
Suitable for all domestic properties, holiday homes and private lets, the detector can be used as a stand-alone unit or can be connected by wire to other WisuAlarm devices (smoke detectors or heat detectors) within the property, ensuring if one unit activates the loud 83db sounder will sound throughout the premises.
By installing the optional wireless connection module the unit can then be connected wirelessly to other WisuAlarm wireless-enabled devices while still been connected by cable to non-wireless devices (Hybrid system)
As an added bonus, the wireless module, when linked with the Internet Gateway allows anyone with the free App enabled to be kept informed of any activations from the system.
Adopting a new split-spectrum sensor technology and a built-in high-volume sounder, our mains-powered smoke alarm responds quickly to smoke while giving a stable performance and low false alarms. Once the surrounding smoke concentration reaches the alarm value, the unit will sound continuously until reset.
Mains powered with replaceable Alkaline 9v battery
Wired interconnection for up to 24 units
Loud sound output over 85 dB(A) at 3 meters
Optional Wireless connection via module available separately
Unique to the WisuAlarm range of products is the ability to silence the alarm by pressing the in-built silence button or by pointing any type of infra-red remote controller at the unit.
DHI-HY-SA5MB
Hardwire interconnection up to 24 units
Loud sound output over 85 dB(A) at 3 meters
Silenced by a working infrared remote controller

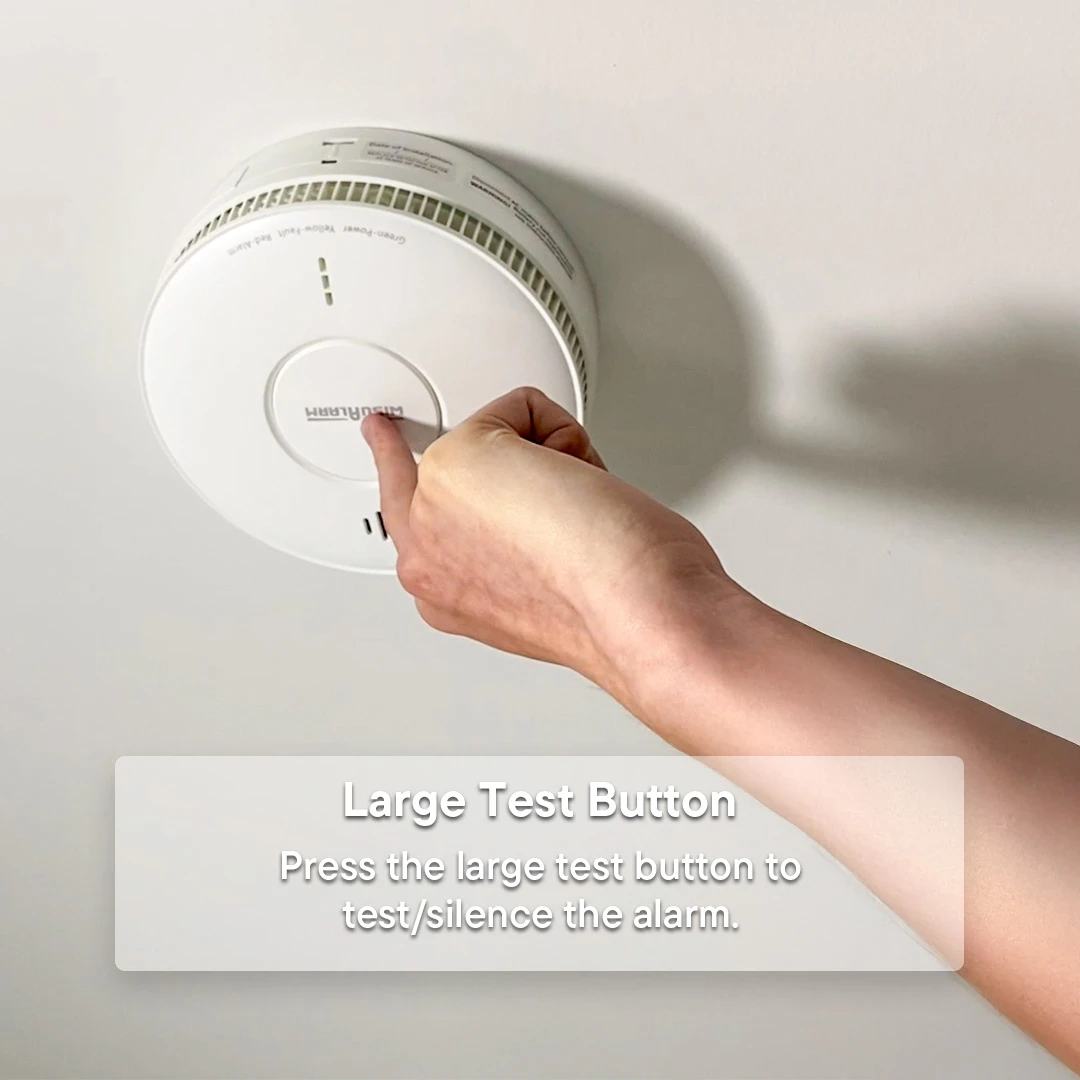

Test and silence features in the central push button
Wireless interconnected with maximum of 24 devices, compatible with WisuLink wireless interconnected module
Detection Type | Smoke |
Sensor | Optical |
Alarm Sounds | Smoke alarm, fault alarm, low battery warning |
Alarm Volume | 85dB (A) at 3 m (9.84 ft) |
Alarm Mode | Visual and audible alarm |
Silencing Function | Yes |
Infrared Silence | Yes |
Indicator Light | Alarm, fault and operation indicator |
LED Instructions | Standby - Green indicator flashes once per minute | Alarm - Red indicator flashes once per second | Fault - Red indicator flashes once per minute | Low battery warning - Red indicator flashes once per minute |
Maximum Number of Interconnected Units | 24 devices |
Coverage Area | rooms up to 7m x 7m |
Power Source | 230Vac with replaceable 9V Alkaline battery |
Operating Environment | Indoor |
Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
Colour | White |
Casing | PC+ABS |
Dimensions | |
Weight | |
Certifications | TÜV, CE and UKCA listed |
Compliance Standard | EN 14604:2005+AC:2008 |
