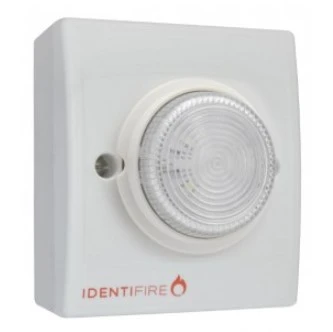

The Identifire TriTone Sounder VAD (visual alarm device) has the same great performance as the standard TriTone Sounder but with an incorporated, EN approved VID (visual alarm device) and is ideal for standard installations and where aesthetics are an important consideration. Identifire is an installer's dream; offering flexibility, consistency and style. Supplied complete with a surface mount back box, but can be mounted flush with the use of a standard electrical back box.
Suitable for conventional sounder circuits, notification alarm circuits and SavWire (2-Wire) alarm systems, the unit features a visual beacon and sounder fully approved to EN54-3.
TriTone's low operating current means it can easily be interfaced onto Analogue Addressable fire alarm systems with a conventional sounder circuit or suitable output module.
Loud 98 dB(A) Sounder
surface mounted with the provided Identifire back box
flush mounted with a standard electrical gang box

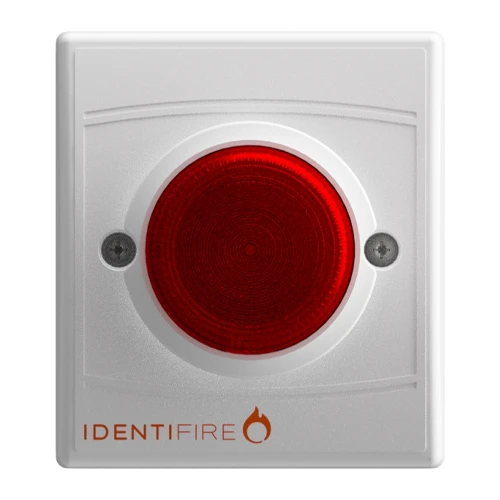

Red or White Flash Beacon
As well as been wall mounted, the Identifire back box can also be retro fitted to electrical back boxes with internal knock-out fixing holes for ease of installation. This back box also accepts conduit entry and use of cable glands.
Approved to EN 54 Part 3
98 dB(A)
14mA current consumption
20 - 28V dc operating voltage
Red or White Flash Beacon
Made from fire rated ABS
Can be surface mounted with the provided Identifire back box
Can be flush mounted with a standard electrical gang box
Specification | Description |
---|---|
Maximum Conductor Size | 2.5 mm² per terminal |
Tone 1 - J1 (Position 1) | Slow Sweep: Tone 800Hz to 970Hz swept at 1Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 2 - J1 (Position 2) | Medium Sweep: Tone 800Hz to 970Hz swept at 3Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Tone 3 - J1 (Not Fitted) | Fast Sweep: Tone 800Hz to 970Hz swept at 9Hz, 92-96 dB(A) J2 Fitted, 86-90 dB(A) J2 Not Fitted |
Operating Current | 14 mA (J2 Fitted) / 11.5 mA (J2 Not Fitted) |
Operating Voltage | 24 V DC (20 - 28 V DC) |
Approval | EN 54-3 :2001+A1:2002+A2:2006, CE DoP:2821-CPR-0227, UKCA DoP:0843-CPR-1142 |
Operating Temperature | -5°C to +50°C |
Operating Humidity | 95% non-condensing |
Material | Fire-rated ABS |
Knockouts | 4 off 20 mm round, 1 off rectangular |
