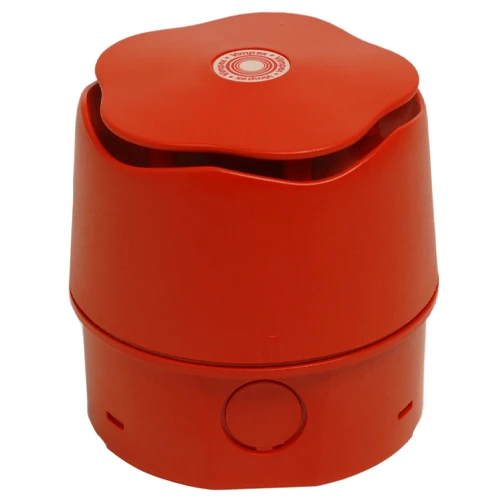

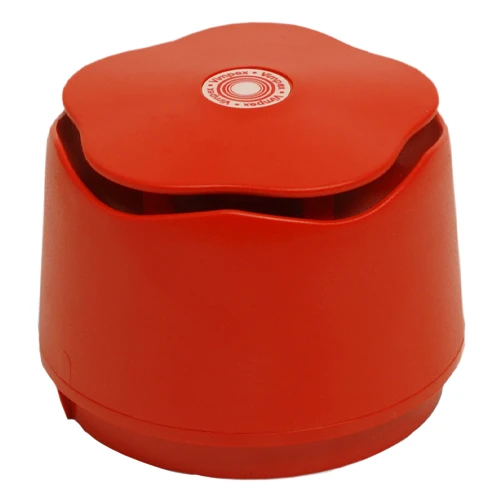

The Banshee Excel Red Capsule Horn Sounder represents a modern, acoustically advanced and versatile conventional electronic sounder.
The sounder comes with 32 user-selectable tones and is fully approved to EN54-3 standards.
Tested and approved to EN 54 Part 3, the Banshee Excel CH sounder boasts leading acoustics, aesthetically pleasing design and low power consumption. The unit is designed for ease of installation and is complemented by a wide selection of accessories to suit all applications.
Red colour
32 user-selectable tones - industry standard compatible
Three selectable volume levels
Banshee Excel CH is manufactured in flame-retardant ABS and is available in three colours, making it suitable for a wide range of alarm and signalling applications. The sounder is fitted with a professional capsule driven horn and uses the push and twist bayonet fitting Banshee MT base compatible with other products in the Banshee Excel range.
Red colour
32 user-selectable tones - industry standard compatible
Very low current consumption
EN 54-3 tested and fully approved in accordance with CPR
VdS approved
Uses same bases as Banshee MT - simple push and twist bayonet mounting with locking screw
Easy to install with side and rear cable entry
Robust 'two in two out' 2.5 mm terminals
Three selectable volume levels
Extensive family of accessories for a wide range of applications
Recyclable
Specification | Description |
---|---|
Termination | Screw terminals for 0.28mm² to 2.5mm² wire conductor |
EN54-3 Voltage Range | 24VDC (20VDC to 28VDC) |
Operating Voltage Range | 9-30VDC* |
Not Used Switch 6 | |
Current Consumption | See Sound output table |
Operating Temperature | -25°C to +70°C |
Synchronisation | Synchronised start |
Environment Category | Type A – Shallow Base, Type B – Deep Base |
Second Tone | Connect *terminal to –ve |
Case Material | ABS |
IP Rating | Shallow Base IP45, Deep Base IP66 |
The Banshee Excel Red Capsule Horn Sounder represents a modern, acoustically advanced and versatile conventional electronic sounder.
The sounder comes with 32 user-selectable tones and is fully approved to EN54-3 standards.
Tested and approved to EN 54 Part 3, the Banshee Excel CH sounder boasts leading acoustics, aesthetically pleasing design and low power consumption. The unit is designed for ease of installation and is complemented by a wide selection of accessories to suit all applications.
Red colour
32 user-selectable tones - industry standard compatible
Three selectable volume levels
Banshee Excel CH is manufactured in flame-retardant ABS and is available in three colours, making it suitable for a wide range of alarm and signalling applications. The sounder is fitted with a professional capsule driven horn and uses the push and twist bayonet fitting Banshee MT base compatible with other products in the Banshee Excel range.
Red colour
32 user-selectable tones - industry standard compatible
Very low current consumption
EN 54-3 tested and fully approved in accordance with CPR
VdS approved
Uses same bases as Banshee MT - simple push and twist bayonet mounting with locking screw
Easy to install with side and rear cable entry
Robust 'two in two out' 2.5 mm terminals
Three selectable volume levels
Extensive family of accessories for a wide range of applications
Recyclable
Specification | Description |
---|---|
Termination | Screw terminals for 0.28mm² to 2.5mm² wire conductor |
EN54-3 Voltage Range | 24VDC (20VDC to 28VDC) |
Operating Voltage Range | 9-30VDC* |
Not Used Switch 6 | |
Current Consumption | See Sound output table |
Operating Temperature | -25°C to +70°C |
Synchronisation | Synchronised start |
Environment Category | Type A – Shallow Base, Type B – Deep Base |
Second Tone | Connect *terminal to –ve |
Case Material | ABS |
IP Rating | Shallow Base IP45, Deep Base IP66 |
