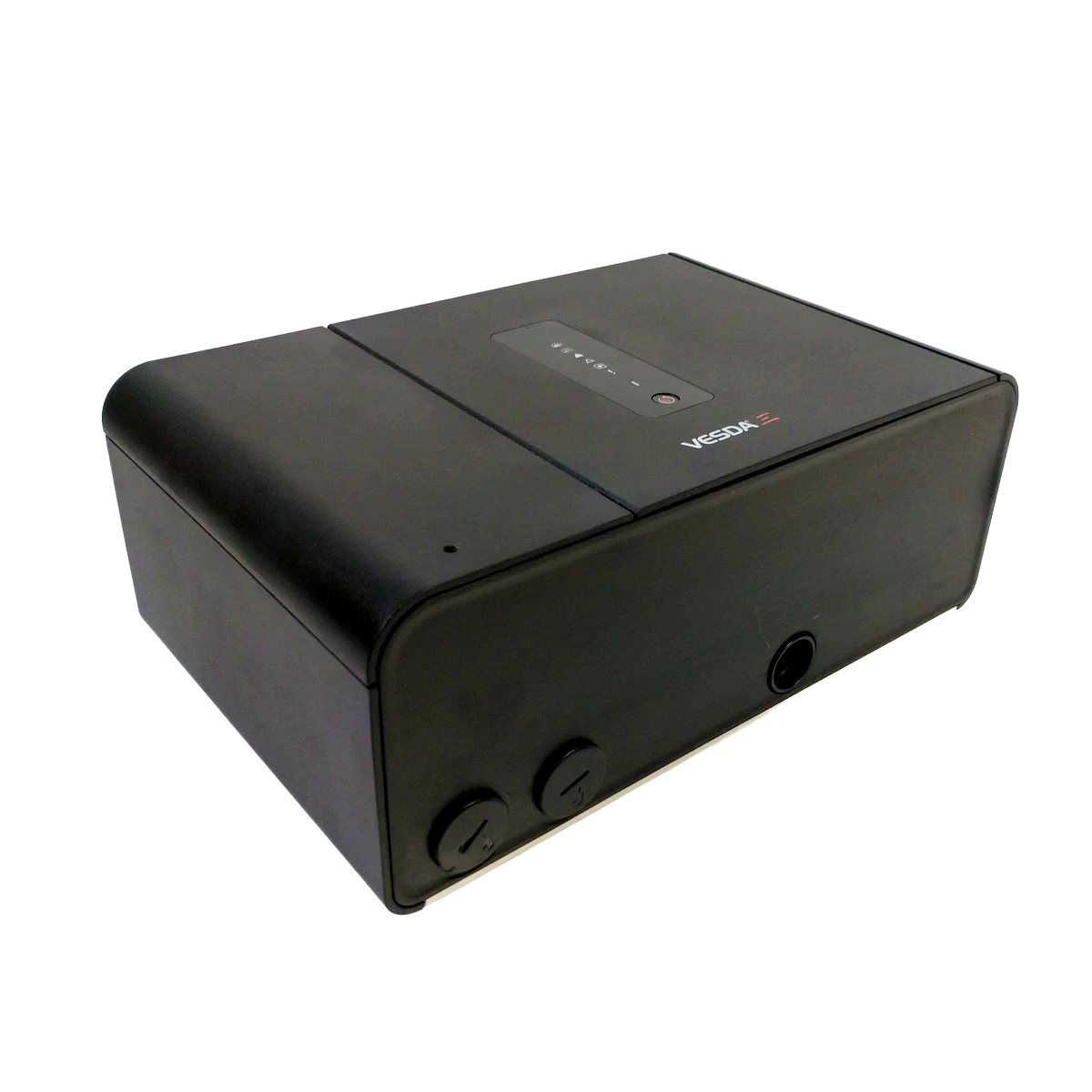

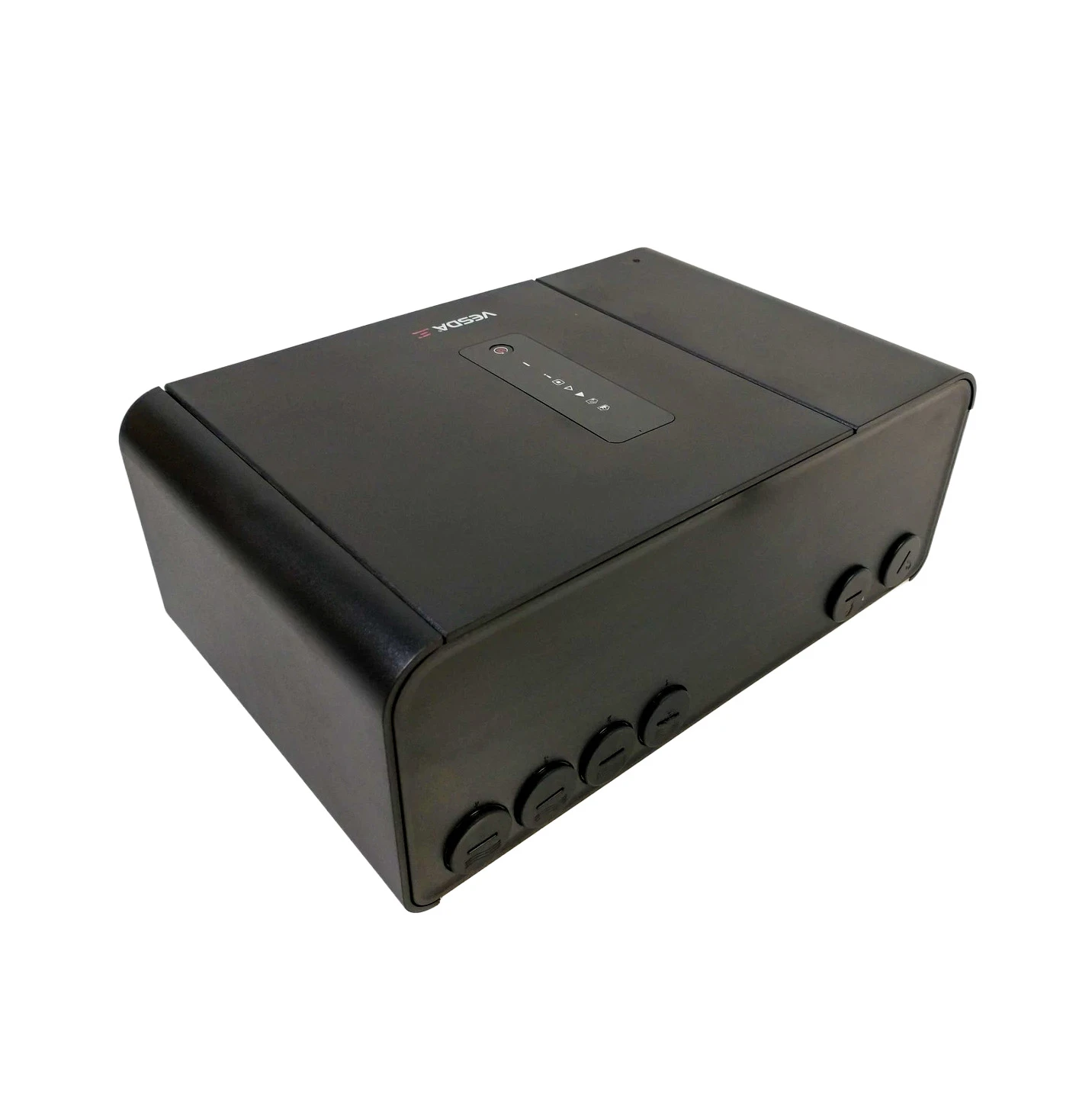

Specification | One Pipe VEP | Four Pipe VEP |
|---|
Supply Voltage | 18-30 VDC (24 V Nominal) | 18-30 VDC (24 V Nominal) |
Power Consumption @ 24VDC | VEP-A00-1P | VEP-A00-P / VEP-A10-P |
Aspirator Setting | Fixed 1-5 | Fixed 1-5 |
Power (Quiescent) | 8.8 W | 7.0 W / 8.8 W / 8.2 W / 10.0 W |
Power (In Alarm) | 9.6 W | 7.8 W / 9.6 W / 10.4 W / 11.6 W |
Dimensions (WHD) | 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in) | 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in) |
Weight | 4.4 kg (9.7 lbs) | 4.5 kg (9.9 lbs) |
Operating Conditions | Ambient: 0°C to 39°C (32°F to 102°F) | Ambient: 0°C to 39°C (32°F to 102°F) |
| Sampled Air: -20°C to 60°C (-4°F to 140°F) | Sampled Air: -20°C to 60°C (-4°F to 140°F) |
| Tested to: -20°C to 55°C (-4°F to 131°F) | Tested to: -20°C to 55°C (-4°F to 131°F) |
| UL: -20°C to 50°C (-4°F to 122°F) | UL: -20°C to 50°C (-4°F to 122°F) |
| Humidity: 5% to 95% RH, non-condensing | Humidity: 5% to 95% RH, non-condensing |
Area Coverage | 1,000 m² (10,760 sq. ft) | 2,000 m² (21,520 sq. ft) |
Min. Airflow per Pipe | 15 l/m | 15 l/m |
Pipe Length (Linear) | 100 m (328 ft) | 280 m (919 ft) |
Pipe Length (Branched) | 130 m (427 ft) | 560 m (1,837 ft) |
Pipe Length (Depending on Pipes in Use) | 1 Pipe: 100 m (328 ft) | 1 Pipe: 110 m (361 ft) |
| | 2 Pipes: 100 m (328 ft) |
| | 3 Pipes: 80 m (262 ft) |
| | 4 Pipes: 70 m (230 ft) |
StaX | PSU | PSU, Auto Pipe Clean |
No. of Holes (A/B/C) | 30/40/45 | 40/80/100 |
Computer Design Tool | ASPIRE | ASPIRE |
Pipe | Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) | Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) |
| Exhaust: External diameter 25 mm or 1.05 in (3/4 in IPS) via adaptor | Exhaust: External diameter 25 mm or 1.05 in (3/4 in IPS) via adaptor |
Relays | 7 programmable relays (latching or non-latching states) | 7 programmable relays (latching or non-latching states) |
| Contacts rated 2 A @ 30 VDC (Resistive) | Contacts rated 2 A @ 30 VDC (Resistive) |
IP Rating | IP40 | IP40 |
Cable Access | 4 x 26 mm (1.02 in) cable entries | 4 x 26 mm (1.02 in) cable entries |
Cable Termination | Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) | Screw Terminal blocks 0.2–2.5 sq mm (24–14 AWG) |
Dynamic Range | 0.000%/m to 32%/m (0.0000%/ft to 10%/ft) | 0.000%/m to 32%/m (0.0000%/ft to 10%/ft) |
Sensitivity Range | 0.005 to 20% obs/m (0.0016% to 6.25% obs/ft) | 0.005 to 20% obs/m (0.0016% to 6.25% obs/ft) |
Threshold Setting Range | Alert: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft) | Alert: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft) |
| Action: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft) | Action: 0.005% to 2.0% obs/m (0.0016% to 0.625% obs/ft) |
| Fire1: 0.010% to 2.0% obs/m (0.0031% to 0.625% obs/ft) | Fire1: 0.010% to 2.0% obs/m (0.0031% to 0.625% obs/ft) |
| Fire2: 0.020% to 20.0% obs/m (0.0063% to 6.25% obs/ft) | Fire2: 0.020% to 20.0% obs/m (0.0063% to 6.25% obs/ft) |
Software Features | Event Log: Up to 20,000 events | Event Log: Up to 20,000 events |
| Smoke level, user actions, alarms, and faults with time and date stamp | Smoke level, user actions, alarms, and faults with time and date stamp |
| AutoLearn: Learns Alarm Thresholds and Flow Fault thresholds by monitoring the environment | AutoLearn: Learns Alarm Thresholds and Flow Fault thresholds by monitoring the environment |
