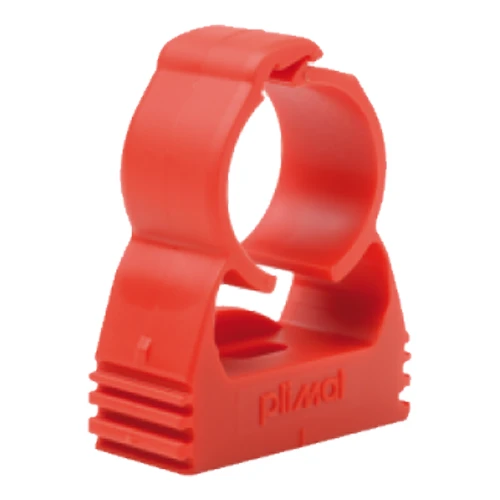

The Vesda PIP-009 25mm pipe clip are required to fix aspirating pipework to the fabric of the building tee is a right angled connector to join 3 lengths of aspirating pipework to create a new branch.

A key element in the performance of a VESDA aspirating smoke detection system is the network of sampling pipes that actively transport air from a protected area to the detector. VESDA Pipes and Fittings products provide fully matched components for the optimal performance of your whole VESDA aspirating system.

• 25mm ABS Pipe Clip

• Pack of 20

• Lightweight

• Maximum distance of 1.5m allowed between clips

• Compatible with RED3MP pipe.

• Supplied in Fire Red colour

Manufactured to comply with the requirements of BS5391 Part 1, EN 61386-1 and EN54 Part 20 guaranteeing Vesda Quality.

• Toughness and Durability: The Butadiene constituent of ABS enhances impact strength and toughness at temperatures ranging from -40°C to 70°C and gives exceptional resistance to accidental damage.

• Chemical Resistance: Acrylonitrile impacts chemical resistance, thus ABS is unaffected by corrosive attack from a wide range of acids, alkaline and other aggressive chemicals.

• Easy to Joint: The Styrene constituent in ABS makes it an easy material to joint using ABS solvent. Simple modifications to existing pipework are also possible with minimal specialist training.

• Lightweight: Unlike some metal pipes, VESDA ABS pipework is very light in weight. This makes it easy to handle in high and difficult places where systems are often installed.

• Colour: The standard VESDA pipe and fittings are supplied in fire red to identify its service as fire. Special orders of white can be accommodated for aesthetic reasons.
