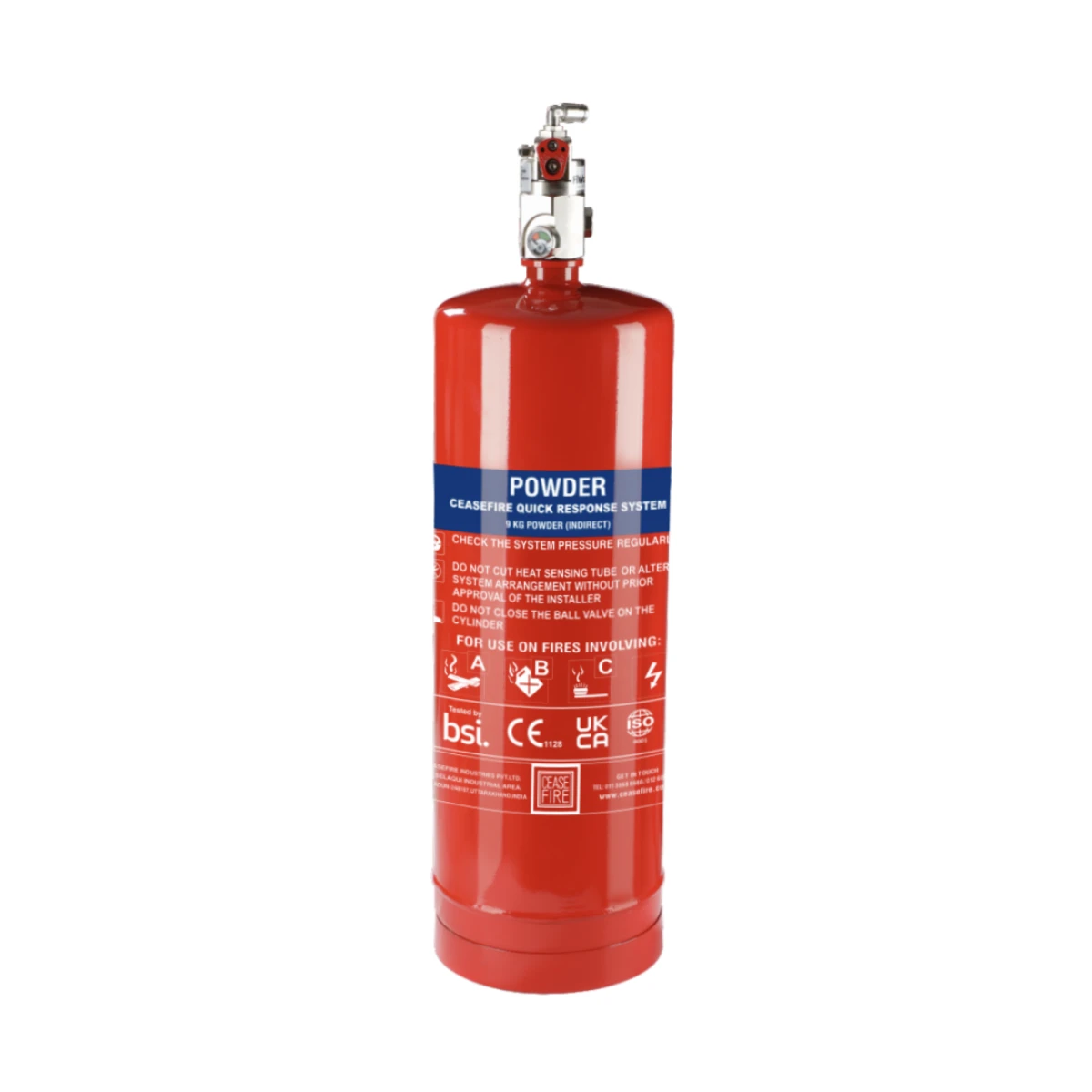

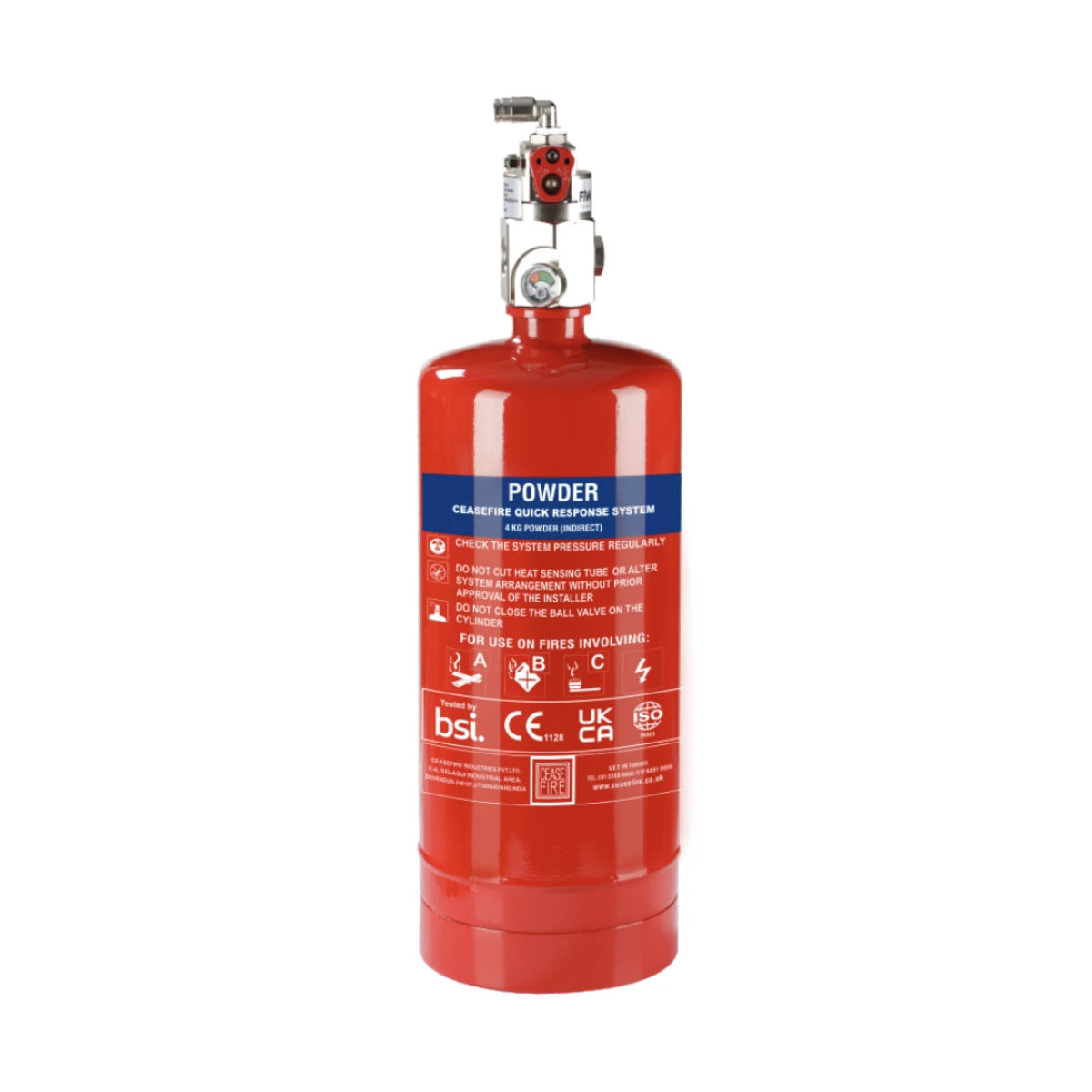

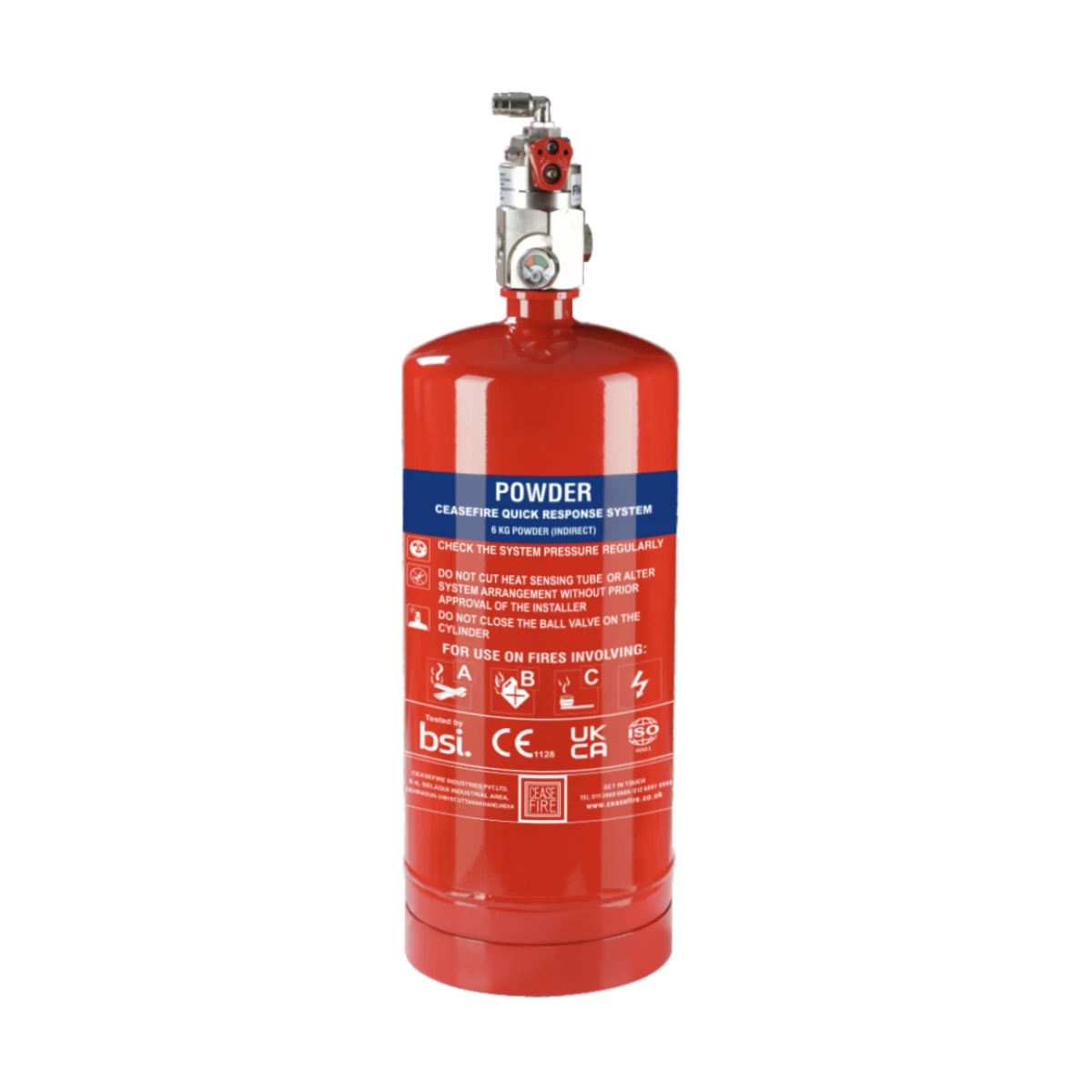

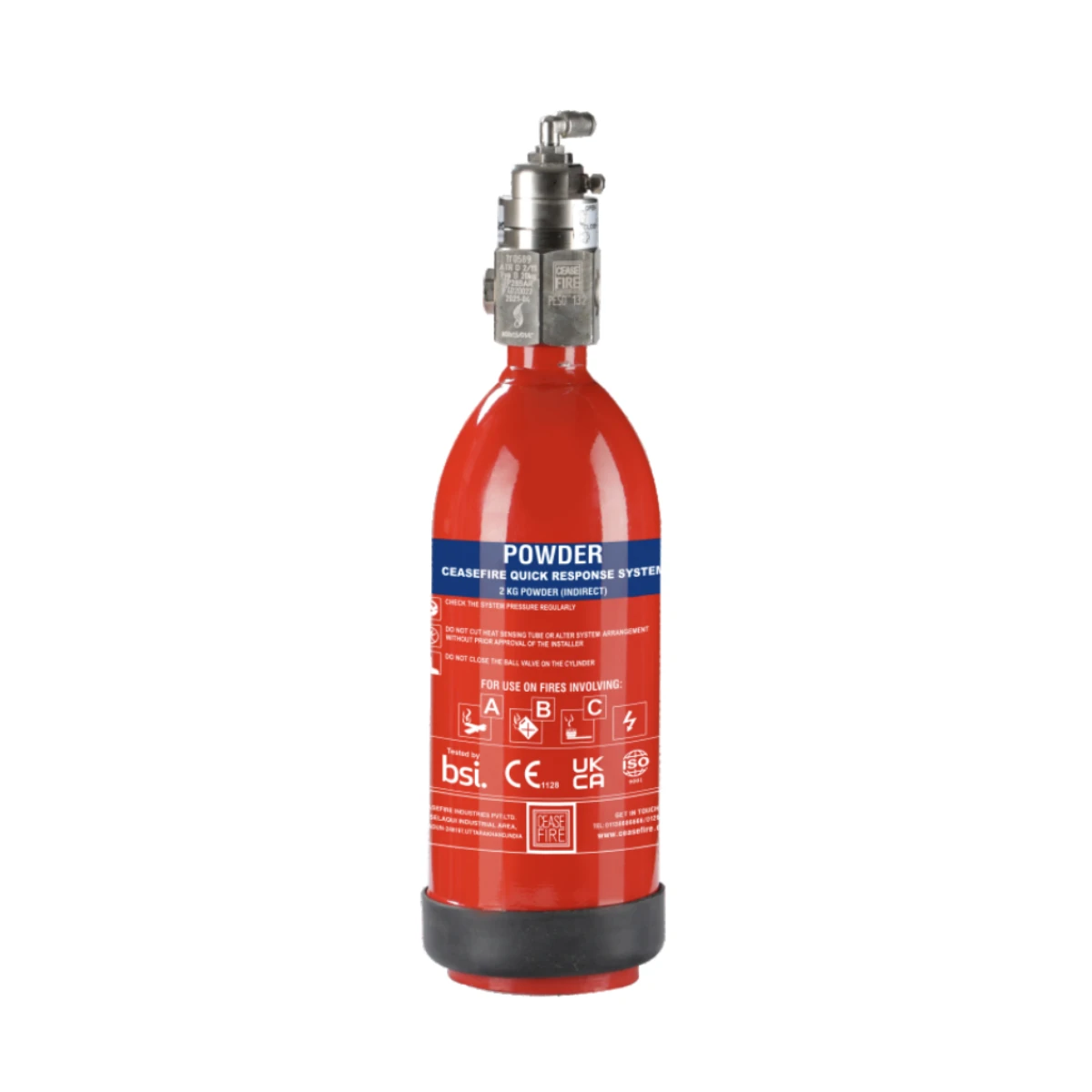

Tube Based Suppression System (Dry Powder) | Indirect System

Name: Tube Based Suppression System (Dry Powder) | Indirect System
Brand: Firesmart
SKU: FDS401/659
Availability: InStock

Call to place order

INC VAT

Code:

Size

Have a question about this? Click here

Features Technical Data

Classification: Works on class A, B, C, and electrically started fires. Effective on a wide range of applications.
Self- Actuated: Does not require any power supply and will function normally in the event of a power outage.
24-hour Protection: The System is fully automated, with sensors that detect fires and trigger the system to activate automatically with no human intervention.
Flexible Design: Flexible tubing allows protection in areas that are difficult to access and may not be able to accommodate any other means of detection.
Manufactured to the highest global and national standards like BSI tested and CE certified. The system is also BSI tested for Forced and Natural Air Flow cabinet applications.
Rugged Design: Can withstand even harsh conditions where other types of detection systems might be rendered inadequate.

Product Code	Unit of Measure	CF-000262B	CF-000084B	CF-000085B	CF-000263B
Description		2kg MAP90 ILP CQRS	4kg MAP90 ILP CQRS	6kg MAP90 ILP CQRS	9kg MAP90 ILP CQRS
Capacity of Agent	KG	2	4	6	9
Certification		PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED	PED UKCA-PED BSI TESTED
Diameter of Shell	MM	108	140	160	175
Total Height (approx.)	MM	403	465	510	635
MOC of Shell		M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)	M.S. Sheet (CRCA grade 2)
Mini. Wall Thickness	MM	1.6	1.6	1.6	1.6
Test Pressure	BAR	35	35	35	35
Anti-Corrosive Treatment		Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000	Outer surfaces are EP Powder coated having Thickness 50 Micron Min. RAL Shade 3000
Service Pressure	BAR	15	15	15	15
Type of Operating Mechanism		Automatic / Manual	Automatic / Manual	Automatic / Manual	Automatic / Manual
Type of Pressure Gauge		Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type	Magnetic Bourdon Tube Type
Type of Dis. Fitting & Length	MM	Delivery pipe OD 10 mm x 1 mm Wall Thk. 4 M Besides Nozzle Network	Delivery pipe OD 10 mm x 1 mm Wall Thk. 6 M Besides Nozzle Network	Delivery pipe OD 10 mm x 1 mm Wall Thk. 8 M Besides Nozzle Network	Delivery pipe OD 10 mm x 1 mm Wall Thk. 12 M Besides Nozzle Network
No of Max. nozzles		2	4	6	8
Type of valve		Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet	Indirect Low Pressure Valve (ILP) with two outlet
Operating Temperature Range	°C	5°C to 60°C	5°C to 60°C	5°C to 60°C	5°C to 60°C
Applicable to Type of Fire		A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire	A, B, & Electrical Started Fire
Product Warranty	YEAR	1	1	1	1
