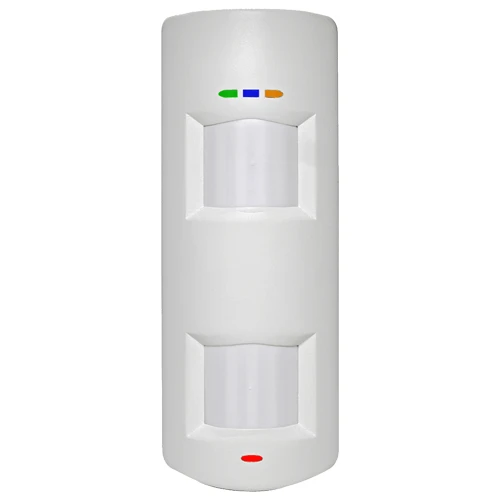

Pyronix TMD15 Grade 3 Combined PIR and PIR Detector

Name: Pyronix TMD15 Grade 3 Combined PIR and PIR Detector
Brand: Pyronix
Price: 58.85999999999999 GBP
Availability: InStock

£58.86

INC VAT

Code: FDS811/317

Have a question about this? Click here

Overview Features

Based on Pyronix tried and tested patented technologies, the TMD15 offers outstanding detection performance with optimum reliability designed to meet the latest industry regulations.

Depending on the environmental conditions, the detector will automatically adjust its sensitivity. 15m Volumetric coverage in both PIR lenses. Ideal for hostile environments.

TMD15
Security Grade 3
2 dual element pyroelectric sensors
1 X-band DRO based microwave
15m PIR detection range
1-15m adjustable microwave detection
Anti-masking detection 0-1m
Adjustable mask detection
Separate relay outputs for each detector
Selectable EOL (End Of Line) resistors
Selectable TMD or Tricover Anti-Blocking Technology
Digital Temperature Compensation

Specification

Automatic sensitivity:Yes
Set sensitivity:Auto or high
Digital temperature compensation:Yes
DEOL resistor on board:Yes
Tamper protection:Front and rear
Separate LED indication:Microwave, PIR and Alarm
Digital independent floating threshold (IFT) technology:Yes
Frequency range:10.579GHz, 10.587GHz, 10.595GHz
