A two Loop Control Panel, 230Vac, with 2 sounder circuits that supports Apollo (Xplorer, XP95 and Discovery),Hochiki (ESP) & System Sensor protocol devices.

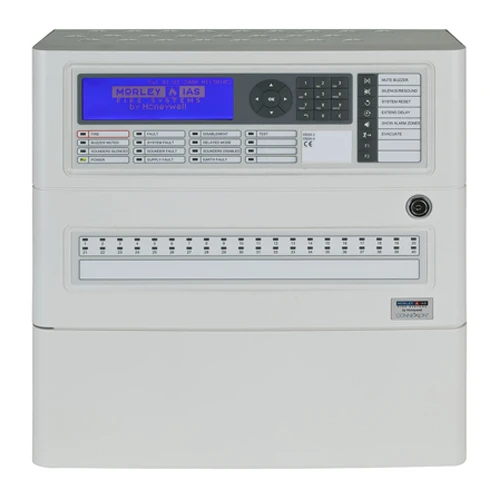

The Morley-IAS DX Connexion panel is ideally suited for use in the protection of small to medium sized buildings. All in all, a compact, high performance, feature rich, economical fire alarm control panel designed to help both the installer and the end user.

The DX Connexion is an enhancement of the Morley-IAS Dimension panel range, connecting the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality.

The multi-protocol DX Connexion range of fire alarm control panels has been developed to be the most time efficient fire panel on the market to install. Simply fix the control panel to the wall, connect the field wiring, power up and in as few as five button pressesyou can have a compliant, working fire alarm system. The panels large graphical display provides a clear menu structure making the whole initial set-up process quick, clear and intuitive.

Additionally, programming the control panel couldnt be easier. Complex configuration can be achieved by using either the panels mobile phone style key pad or by using the Windows PC programming tool supplied with the panel.

• 4 loop - 500mA per loop

• Dimensions: 391.5mm H x 390mm W x 147mm D

• 4.5kg

• 3 mounting holes

• Knockouts (20mm) - Top: 25x, Bottom: 2x

• IP30 rated

• Network up to 16 loops

• True peer-to-peer and fault tolerantnetwork for high system reliability

• Supports USB upload/download

• 2 independent sounder circuits

• 2 x onboard monitored inputs
