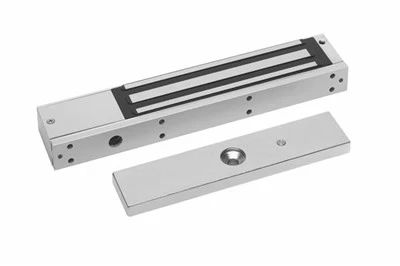

Monitored Standard Maglock

Our universal monitored electronic maglock is particularly suitable for use with Paxton and RGL access control systems, the fail safe device uses a powerful magnetic force to secure and release the door in areas which require security controlled access or egress such as entry or exit doors.

• 12/24vdc field selectable

• silver anodised finish

• door closed monitor

• 545Kg max holding force

A full range of optional brackets are available including Z&L brackets, adjustable L brackets, glass door saddles and armature surrounds.

• 12/24vdc field selectable

• silver anodised finish

• supplied complete with armature and full fixing kit

• 545Kg max holding force

• LED indicator

• dimensions 267mm x 73mm x 40mm

• current consumption 600/300mA

• in-built surge protection
