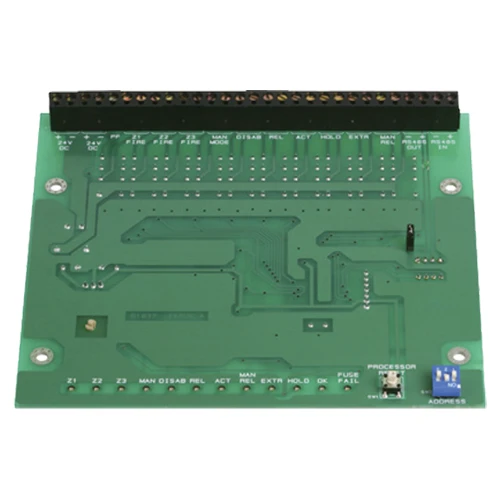

Kentec Sigma XT K03750M2 Boxed Ancillary PCB with 0.75A PSU

Name: Kentec Sigma XT K03750M2 Boxed Ancillary PCB with 0.75A PSU
Brand: Kentec
Price: 309.59999999999997 GBP
Availability: InStock

£309.60

INC VAT

Code: FDS130/301

Have a question about this? Click here

Overview Features

PLEASE NOTE THIS ITEM IS AVALIABLE TO ORDER ONLY - PLEASE CONTACT US TO CONFIRM LEAD-TIME BEFORE PLACING ORDER

The Sigma XT Ancillary Board is compatible with all Sigma XT control panels which have operating software version SIGXT_11A.HEX or above.

The board provides volt free normally open contacts allowing control of subsystems and plant remotely from the main panel over a two wire data bus. Mains powered, boxed Ancillary boards require only a two core data cable from the main control panel.

24V DC versions require an additional two cores for power either from the main panel or from another 24V DC source. Up to 7 Ancillary boards can be connected to a control panel and each is allocated an address from 1 to 7 using a binary coded DIL switch.

The total length of the data cable from the main panel to the last repeater must not exceed 1200 metres. A mixture of status units and ancillary boards, up to a maximum of 7 of each type, can be connected to the serial data bus.

Two wire serial connection
Up to 7 per system
0.75A PSU
24V DC
Volt free relay outputs for fire and extinguishing system
Relay operated LED indicators
385mm x 310mm x 90mm
