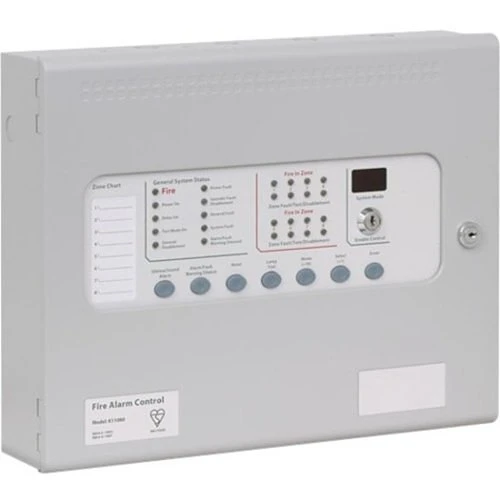

Kentec Sigma Sav-wire Fire Alarm Panel | 2, 4 or 8 Zone

Name: Kentec Sigma Sav-wire Fire Alarm Panel | 2, 4 or 8 Zone
Brand: Kentec
SKU: FDS100/365
Price: 293.34 GBP
Availability: InStock

£293.34

INC VAT

Code: FDS100/365

Zone

Have a question about this? Click here

Overview Features Technical Data

The Kentec Sigma T11020M2, along with the 4-zone T11040M2 and 8-zone T11080M2 panels, complies with European standards BS EN54-2 and BS EN54-4 for Fire Detection and Fire Alarm Systems – Control and Indicating Equipment. These panels are designed for use with Sav Wire bases and Sav Wire call points, where detection and sounder circuits share a single pair of cables.

Suitable for a wide range of applications, all models in the Sigma Sav Wire range are simple to install and require minimal programming for setup, making them an efficient and reliable choice for fire alarm system installations.

Sav Wire compatible
Available in 2-zone (T11020M2), 4-zone (T11040M2), and 8-zone (T11080M2) models
2 sounder output circuits
Fully programmable using simple menu options
Adjustable sounder delay time
3 on-board relay outputs
Class change input
Sounder configuration options
Zonal sounder delay for detectors only
Zonal sounder delay for call points only
Coincidence input selection
I.S barrier selection by zone
Short circuit fire detection by zone
Non-latching zones
Silent zones
Zone input delay

Specification	Details
Construction	1.2mm mild sheet steel
IP Rating	IP30
Finish	Epoxy powder coated
Weight	6kg
Supply Voltage	230V AC (+10%/-15%)
Mains Supply Fuse	1.6 Amp 250V
Power Supply DC Rating	24V 3 Amps
Maximum Battery Size	7Ah 12V (2 per panel)
Cable Capacity	2.5mm² per terminal
Operating Temperature	-5°C to +40°C
Operating Humidity	<95% (non-condensing)

Overview

Features

Technical Data

Specification	Details
Construction	1.2mm mild sheet steel
IP Rating	IP30
Finish	Epoxy powder coated
Weight	6kg
Supply Voltage	230V AC (+10%/-15%)
Mains Supply Fuse	1.6 Amp 250V
Power Supply DC Rating	24V 3 Amps
Maximum Battery Size	7Ah 12V (2 per panel)
Cable Capacity	2.5mm² per terminal
Operating Temperature	-5°C to +40°C
Operating Humidity	<95% (non-condensing)
