Code: FDS130/344
INC VAT
Code: FDS130/344

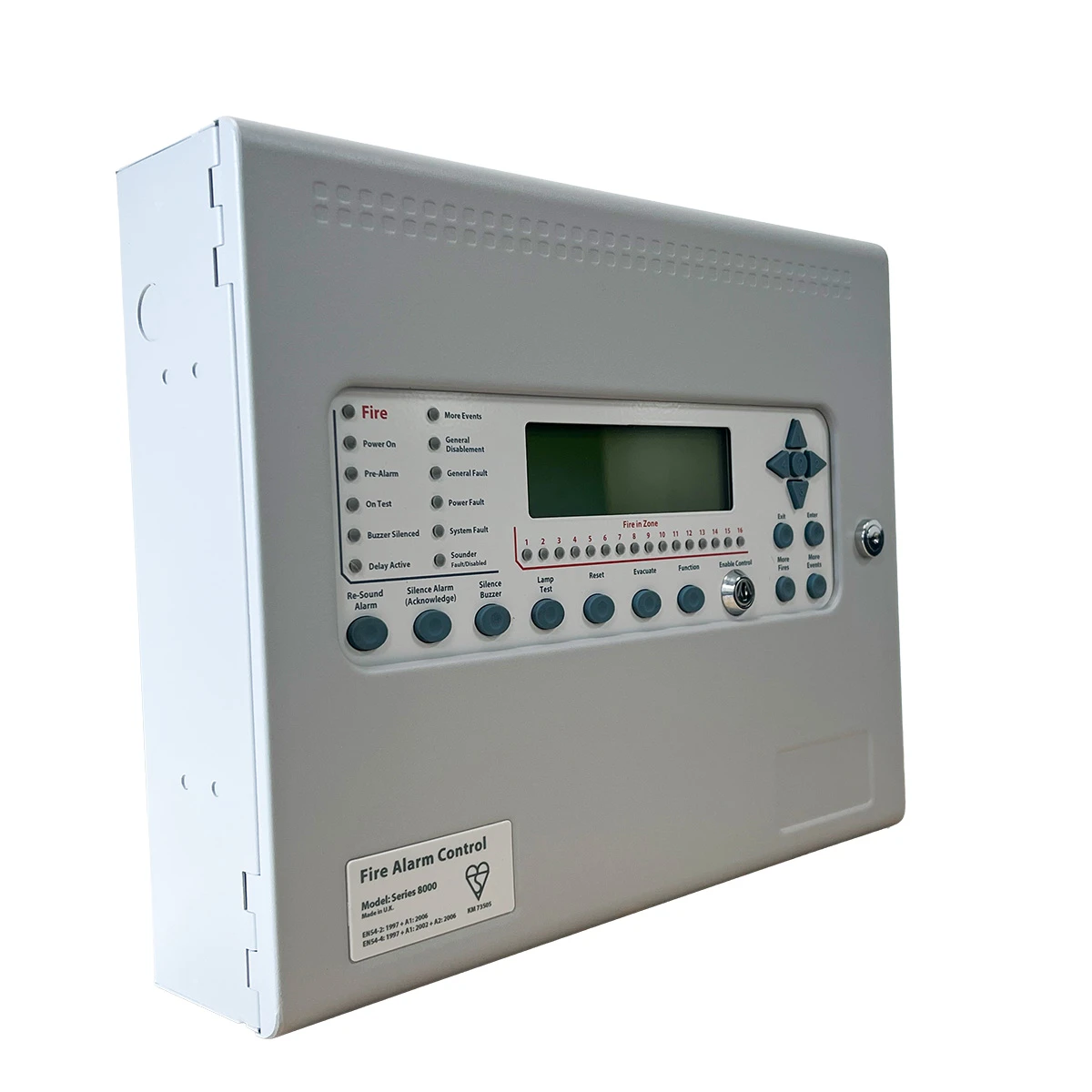

The Kentec Syncro AS uses leading edge microprocessor based electronics to provide a flexible control system with high reliability and integrity. With its large graphical display and ergonomic button and indicator layout, the Syncro AS control panel is simple and straight forward to understand for installers, commissioning engineers and end users alike.
The Kentec A80161M2 Syncro AS addressable fire control panel is a versatile open protocol fire alarm control panels compatible with Apollo XP95 and Discovery protocols.
The Kentec H80161M2 Syncro AS addressable fire control panel is a versatile open protocol fire alarm control panels compatible with Hochiki protocols.
Key switch or Code enable
16 zone incl. led indicators
2 conventional sounder circuits
Choose the correct protocol from the selection box above, or see our complete systems here
Kentec A81061M2/H81061M2
Key switch or Code to access functions
1 loop addressable panel
Apollo or Hochiki protocol (Selectable)
16 zone incl. led indicators
2 sounder circuits
5 inputs
3 outputs
3A power supply
500 event log
Powerful cause and effect programming
Can be networked
Fully certified EN54-2 / EN54-4
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - Lid & Box | BS 00 A 05 grey - fine texture |
Colour - Control Plates & Labels | RAL 7047 light grey - satin |
Weight | 6kg (standard panel) |
Display | 8 lines of 40 characters graphic LCD |
Mains Voltage Supply | 110 or 230V AC 50 or 60 Hz (specify when ordering, default is 230V) |
Mains Supply Fuse | 1.6A 250V |
Power Supply DC Rating | 24V 3 Amps Aux 25V supply (Fused at 500mA) |
Maximum Battery Size | 9Ah 12V (2 per panel) (non-networked) |
Fault Contact Rating | 30V DC 1 Amp |
Fire Contact Rating | 30V DC 1 Amp |
Alarm Contact Rating | 30V DC 1 Amp |
Sounder Output Rating | Fused at 1 Amp each |
Detection Loop | 400mA output |
Detector Protocols | Apollo (XP95, Discovery), Hochiki ESP |
Printer Port | Serial RS232 |
Serial Expansion Port | Serial RS485 (Compatible with all Syncro I/O modules) |
PC Port | Serial RS232 |
Network Connection | RS485 - Up to 64 panels via fully fault-tolerant optional network card |
Remote Silence Input (SIL) | Switched -ve |
Remote Fault Input (FLT) | Switched -ve |
Remote Reset Input (RES) | Switched -ve |
Remote Alert Input (INT) | Switched -ve |
Remote Evacuate Input (CNT) | Switched -ve |
Download Lead | Standard S187, X187LS economy |
Configuration | Via Loop Explorer PC utility |
PC Graphics | Via Ockular |
Modem | Optional dial-up modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
The Kentec Syncro AS uses leading edge microprocessor based electronics to provide a flexible control system with high reliability and integrity. With its large graphical display and ergonomic button and indicator layout, the Syncro AS control panel is simple and straight forward to understand for installers, commissioning engineers and end users alike.
The Kentec A80161M2 Syncro AS addressable fire control panel is a versatile open protocol fire alarm control panels compatible with Apollo XP95 and Discovery protocols.
The Kentec H80161M2 Syncro AS addressable fire control panel is a versatile open protocol fire alarm control panels compatible with Hochiki protocols.
Key switch or Code enable
16 zone incl. led indicators
2 conventional sounder circuits
Choose the correct protocol from the selection box above, or see our complete systems here
Kentec A81061M2/H81061M2
Key switch or Code to access functions
1 loop addressable panel
Apollo or Hochiki protocol (Selectable)
16 zone incl. led indicators
2 sounder circuits
5 inputs
3 outputs
3A power supply
500 event log
Powerful cause and effect programming
Can be networked
Fully certified EN54-2 / EN54-4
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour - Lid & Box | BS 00 A 05 grey - fine texture |
Colour - Control Plates & Labels | RAL 7047 light grey - satin |
Weight | 6kg (standard panel) |
Display | 8 lines of 40 characters graphic LCD |
Mains Voltage Supply | 110 or 230V AC 50 or 60 Hz (specify when ordering, default is 230V) |
Mains Supply Fuse | 1.6A 250V |
Power Supply DC Rating | 24V 3 Amps Aux 25V supply (Fused at 500mA) |
Maximum Battery Size | 9Ah 12V (2 per panel) (non-networked) |
Fault Contact Rating | 30V DC 1 Amp |
Fire Contact Rating | 30V DC 1 Amp |
Alarm Contact Rating | 30V DC 1 Amp |
Sounder Output Rating | Fused at 1 Amp each |
Detection Loop | 400mA output |
Detector Protocols | Apollo (XP95, Discovery), Hochiki ESP |
Printer Port | Serial RS232 |
Serial Expansion Port | Serial RS485 (Compatible with all Syncro I/O modules) |
PC Port | Serial RS232 |
Network Connection | RS485 - Up to 64 panels via fully fault-tolerant optional network card |
Remote Silence Input (SIL) | Switched -ve |
Remote Fault Input (FLT) | Switched -ve |
Remote Reset Input (RES) | Switched -ve |
Remote Alert Input (INT) | Switched -ve |
Remote Evacuate Input (CNT) | Switched -ve |
Download Lead | Standard S187, X187LS economy |
Configuration | Via Loop Explorer PC utility |
PC Graphics | Via Ockular |
Modem | Optional dial-up modem for remote diagnostics (Can be fitted to M3 size enclosure only) |
