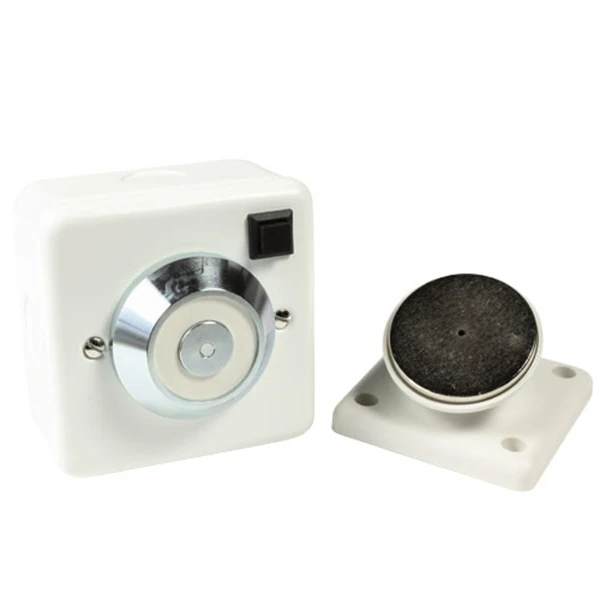

FireSmart 24V Magnetic Fire Door Retainer | Metal Casing
INC VAT
Code: FDS372/394
The FireSmart door retainers are simple to install and robust. Each door retainer is fitted with a spring loaded release pin mounted centrally within the electro-magnet. On power-off, the release pin then ensures that the fire door is pushed away from the electro-magnet.
They are ideal for a wide range of applications, such as nursing homes, hospitals, schools and industrial premises, enabling doors to be held open under normal conditions but to automatically release in the event of a fire alarm evacuation.
Please Note: This product is also available in different styles.
Push Button Release
Spring Ejector
Robust steel facia plate
24Vdc Supply Voltage
Rated Holding Force Of 200N (20.4Kg)
Can Be Floor Mounted With Optional Bracket
Designed to comply to the latest requirements of EN 61000-3-2, EN 50081-1, EN 60950 and EN 1155
Supply Voltage and Tolerance: 24Vdc 10%
Current Consumption: 50mA
Rated Holding Force: 200N (20.4kg)
Maximum Holding Force: 250N (25.5kg)
Residual Holding: Zero
Release Switch: Yes
Protection: IP51
Keeper Adjustment: 30
Weight (per unit packed): 420g
Material: Steel
Door Closer, Power Size: 3 - 6
The FireSmart door retainers are simple to install and robust. Each door retainer is fitted with a spring loaded release pin mounted centrally within the electro-magnet. On power-off, the release pin then ensures that the fire door is pushed away from the electro-magnet.
They are ideal for a wide range of applications, such as nursing homes, hospitals, schools and industrial premises, enabling doors to be held open under normal conditions but to automatically release in the event of a fire alarm evacuation.
Please Note: This product is also available in different styles.
Push Button Release
Spring Ejector
Robust steel facia plate
24Vdc Supply Voltage
Rated Holding Force Of 200N (20.4Kg)
Can Be Floor Mounted With Optional Bracket
Designed to comply to the latest requirements of EN 61000-3-2, EN 50081-1, EN 60950 and EN 1155
Supply Voltage and Tolerance: 24Vdc 10%
Current Consumption: 50mA
Rated Holding Force: 200N (20.4kg)
Maximum Holding Force: 250N (25.5kg)
Residual Holding: Zero
Release Switch: Yes
Protection: IP51
Keeper Adjustment: 30
Weight (per unit packed): 420g
Material: Steel
Door Closer, Power Size: 3 - 6
