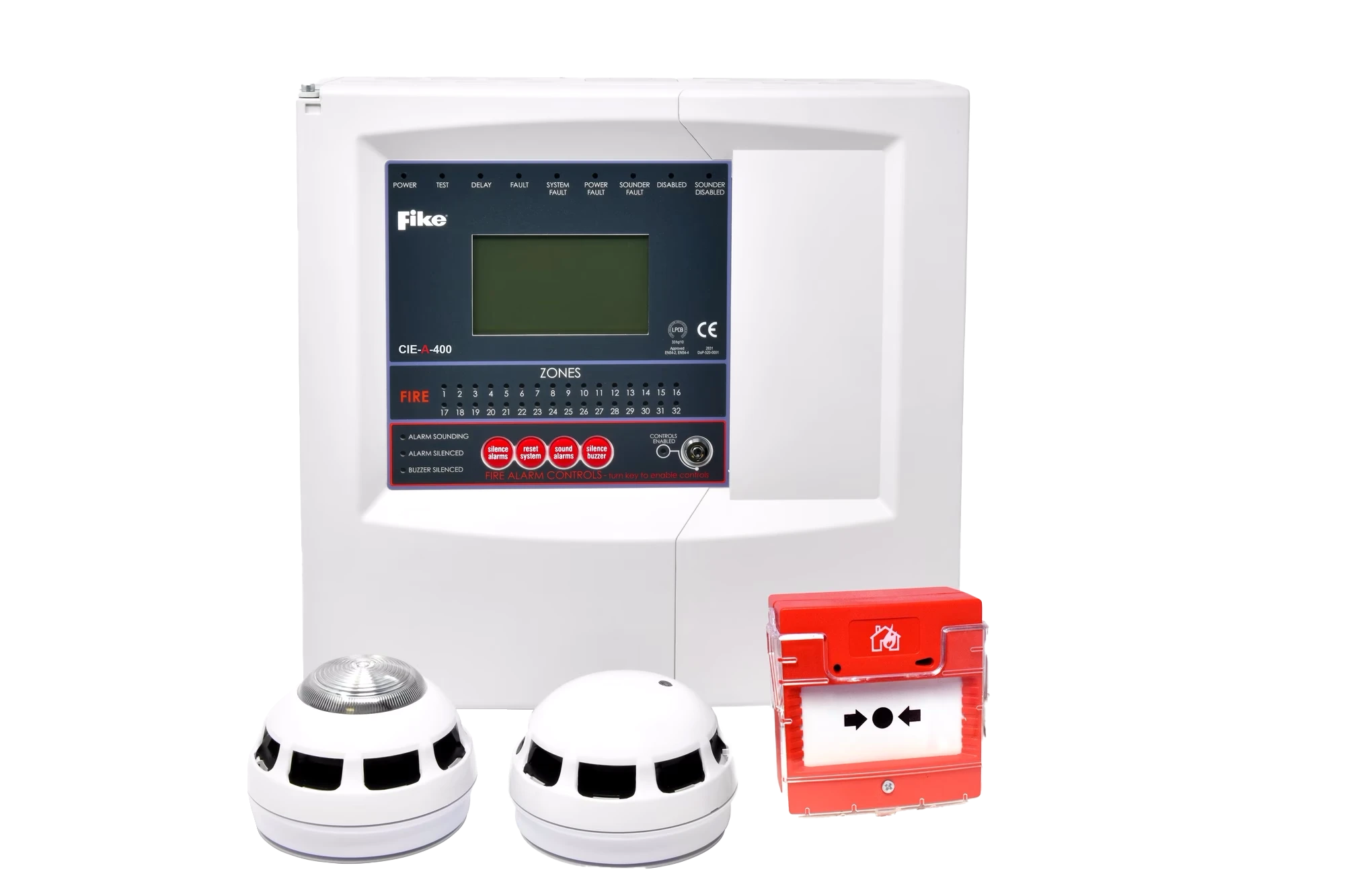

The Fike CIE-A-400 Addressable Fire Alarm Panel is supplied complete with loop card and can be easily expanded to a two loop panel.

Capable of supporting up to 400 devices with a maximum loop length of 2KM, the panel also provides two configurable monitored input circuits, 2 configurable monitored output circuits, 2 configurable + 1 fault relay and also a Peripheral bus circuit to add up to 8 network or repeater panels.

The system may be configured utilising 3 alarm stages with full Zone to Zone Cause and Effect across all 32 panel zones with provision to include alarm confirmation and delay timers.

The CIE-A-400 control panel is compatible with the Fike addressable range of devices and utilizes soft addressing principles eliminating the need for the installer to physically address each device whilst also eradicating time spent on faults caused by duplicate addressing.

The operating parameters of the devices are configured either from the panel or via the OSP programming software and are then stored within the Flash memory of the device itself. This enhanced digital protocol means less information is needed to be sent between the detector and the host control panel, resulting in faster, more reliable communication.

Simply add additional items as required from the drop-down above to build your bespoke fire alarm system.

• Fike CIE-A-400

• Single loop card expandable

• All devices have built in isolators, making addressing and fault finding very simple

• Programmable monitored inputs and outputs

• Event log holds up to 1000 events

• Simple to use programming software

• Enhanced servicing and engineering tools

• Intuitive End User interface

• Uses Fike Multipoint addressable detectors

• Peripheral Bus for connecting up to 8 repeaters

• Backward compatibility with existing Fike addressable systems

• Surface mount as standard (flush mountable with additional cradle)
