Code: FDS900/045
INC VAT
Code: FDS900/045

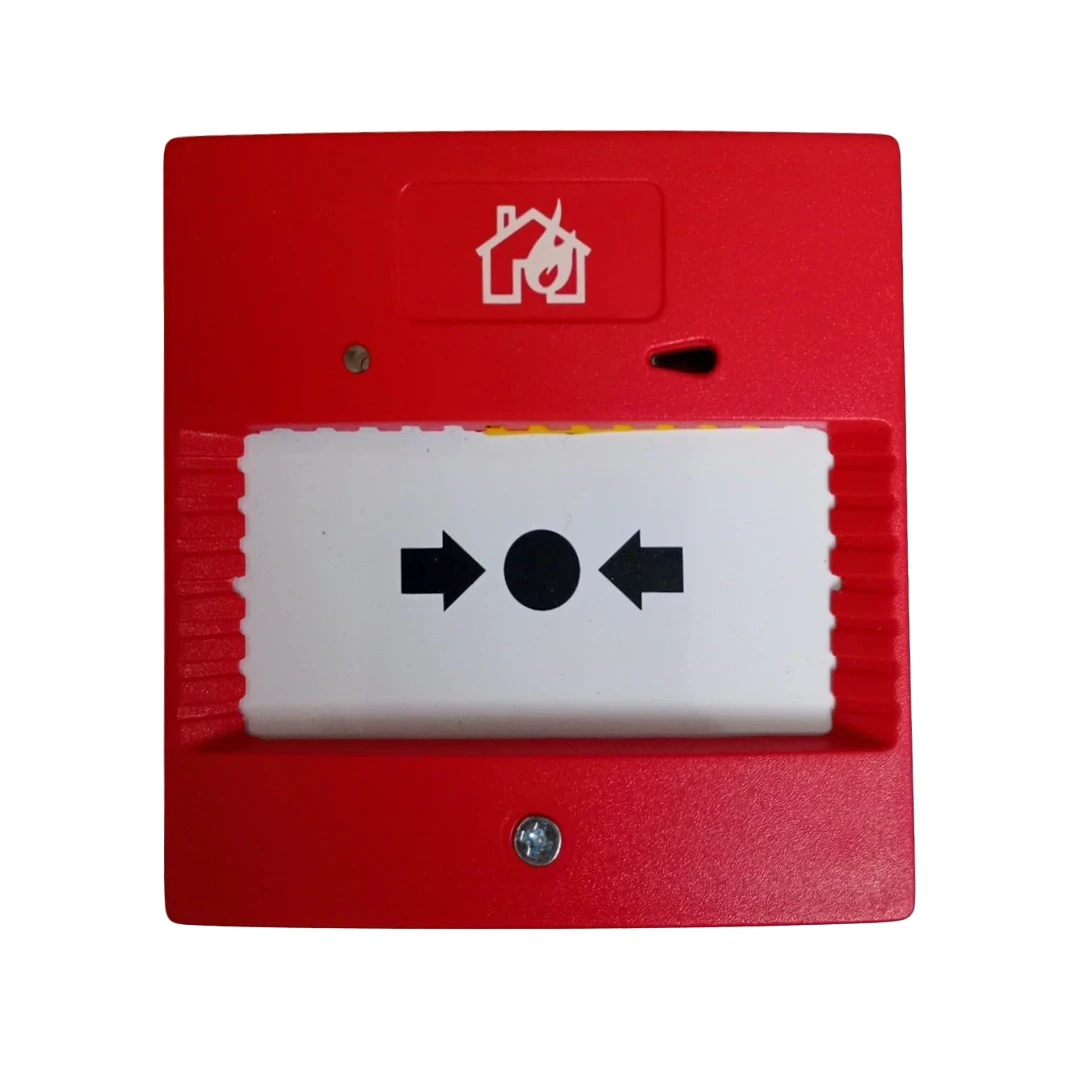

The Fike 402-0006 Twinflex Manual Call Point is designed for use with the Twinflex Pro 2-wire fire alarm system, providing a reliable and efficient way to manually activate an alarm in an emergency.
This call point is engineered for ease of use, ensuring quick activation when pressed. It features LED indication with a 0.5-second activation interval and a 5-second End of Line indication interval, providing clear status feedback.
The device operates within a voltage range of 20 to 35V DC and is compatible with Twinflex systems from V1 onwards.
With a compact design measuring 88mm x 88mm and a standard installation depth of 52mm (or 25mm when flush mounted), the Fike 402-0006 is adaptable for various installation environments.
It has a low quiescent current of 50μA and an active current of 16mA, making it an energy-efficient choice.
The Twinflex Pro system itself is renowned for its cost-effectiveness, adaptability, and state-of-the-art technology, allowing multiple fire alarm devices to be installed on a single cable run.
The Fike 402-0006 seamlessly integrates into this system, ensuring reliable manual alarm activation in commercial and industrial settings.
Fike 402-0006
Compatible with Twinflex alarm panels
Resettable element.
Complies with EN54 Parts 3 and 11
Reset key provided
LED indication of "end of line"
Supplied complete with back box and protective cover
Feature | Specification |
---|---|
Dimensions | |
Width x Height | 88mm x 88mm |
Depth (Standard incl. base) | 52mm |
Depth (Flush mounted) | 25mm |
Operating Temperature | -10°C to +50°C |
Voltage Range | 20 to 35V DC |
LED Indication | |
Activated | 0.5-second interval |
End of Line | 5-second interval |
System Compatibility | |
Twinflex | V1 onwards |
TwinflexPro | V1 onwards |
Zone Current @ 24VDC | |
Quiescent | 50uA |
Active | 16mA |
SLU Rating | 3 |
DLU Rating | 16 |
The Fike 402-0006 Twinflex Manual Call Point is designed for use with the Twinflex Pro 2-wire fire alarm system, providing a reliable and efficient way to manually activate an alarm in an emergency.
This call point is engineered for ease of use, ensuring quick activation when pressed. It features LED indication with a 0.5-second activation interval and a 5-second End of Line indication interval, providing clear status feedback.
The device operates within a voltage range of 20 to 35V DC and is compatible with Twinflex systems from V1 onwards.
With a compact design measuring 88mm x 88mm and a standard installation depth of 52mm (or 25mm when flush mounted), the Fike 402-0006 is adaptable for various installation environments.
It has a low quiescent current of 50μA and an active current of 16mA, making it an energy-efficient choice.
The Twinflex Pro system itself is renowned for its cost-effectiveness, adaptability, and state-of-the-art technology, allowing multiple fire alarm devices to be installed on a single cable run.
The Fike 402-0006 seamlessly integrates into this system, ensuring reliable manual alarm activation in commercial and industrial settings.
Fike 402-0006
Compatible with Twinflex alarm panels
Resettable element.
Complies with EN54 Parts 3 and 11
Reset key provided
LED indication of "end of line"
Supplied complete with back box and protective cover
Feature | Specification |
---|---|
Dimensions | |
Width x Height | 88mm x 88mm |
Depth (Standard incl. base) | 52mm |
Depth (Flush mounted) | 25mm |
Operating Temperature | -10°C to +50°C |
Voltage Range | 20 to 35V DC |
LED Indication | |
Activated | 0.5-second interval |
End of Line | 5-second interval |
System Compatibility | |
Twinflex | V1 onwards |
TwinflexPro | V1 onwards |
Zone Current @ 24VDC | |
Quiescent | 50uA |
Active | 16mA |
SLU Rating | 3 |
DLU Rating | 16 |
