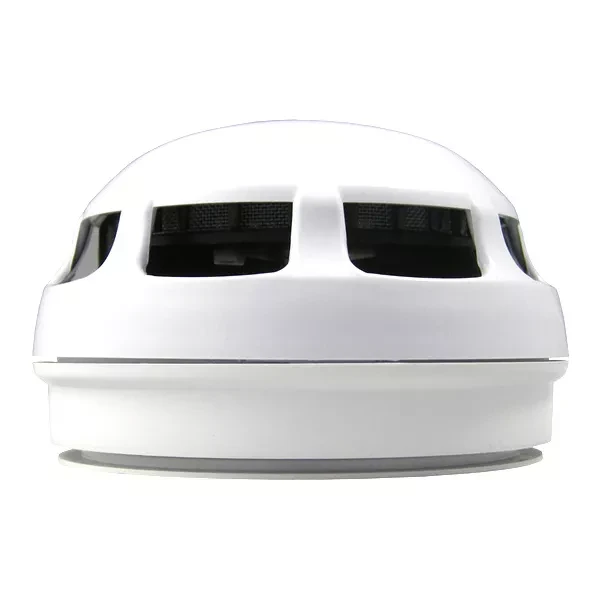

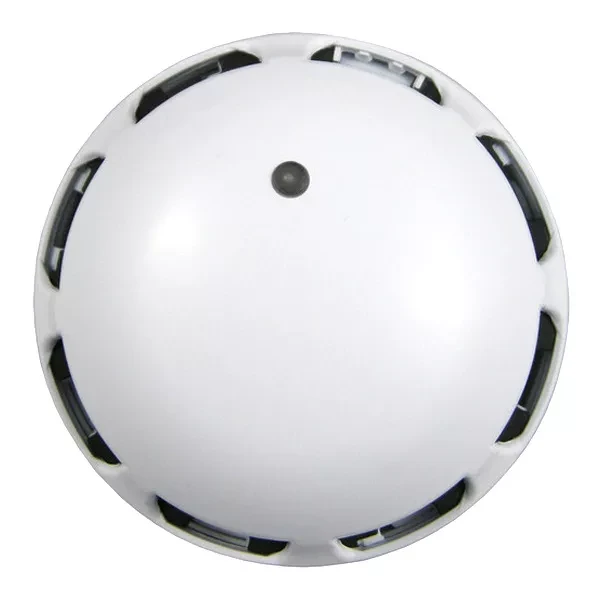

Fike 205-0001 Sita Addressable ASD Detector With Sounder

Name: Fike 205-0001 Sita Addressable ASD Detector With Sounder
Brand: Fike
Price: 48.66 GBP
Availability: InStock

Code: FDS332/015

£48.66

INC VAT

Code: FDS332/015

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

Fike 205-0001 Sita Addressable ASD Detector with Sounder is a multifunction smoke and heat detector with 3 smoke detection modes and 3 heat detection modes.

The Multipoint ASD is a plug-in type smoke detector that utilises a photo-electric sensing chamber to make a measurement corresponding to smoke density.

The device also incorporates a thermistor sensing circuit to allow for accurate heat measurement. These elements allow the device to be configured to a smoke, heat or combined setting.

Digital communication technology to the control panel is implemented allowing for accurate data transfer at high transmission speeds.

This device is only compatible with the Sita200plus, Duonet and Quadnet ranges of control panels and is complete with an inbuilt sounder featuring seven sound patterns and three volume levels.

Short circuit isolator
Multiple combinations of smoke & heat detection modes
Multi stage alarms - pre alarm feature
7 sound patterns - plus off, 3 different volume settings - if using Sita
Multipoint with integral sounder

Specification	Details
Brand	Fike
Manufacturer Part No.	205-0001
Product Range / Series	SITA
Primary Power Source	24V DC
System Type	Addressable
Protocol Compatibility	Fike SITA
Sensor Type	Combined Optical and Thermistor
Detectable Medium	Smoke, Heat
Colour	White
Dimensions
Diameter	107mm
Depth (Standard inc base)	67mm
Depth (Beacon inc base)	75mm
Operating Temperature	-10°C to +50°C
Voltage Range (Loop)	24 to 42V DC
Beacon Operation
Flash Duration	5ms
Flash Interval	1s
LED Indication
Normal	50ms on / 20s interval
Fault	0.1ms on / 5s interval
Fire	50ms on / 400ms interval
IP Rating	IP21C
System Compatibility
MPS	Sita200plus V2.00 onwards
MP	Sita200plus V2.30 onwards
Duonet and Quadnet	V1 onwards

Fike 205-0001 Sita ASD Detector With Sounder Installation Guide

Click here to download

Overview

Features

Technical Data

Specification	Details
Brand	Fike
Manufacturer Part No.	205-0001
Product Range / Series	SITA
Primary Power Source	24V DC
System Type	Addressable
Protocol Compatibility	Fike SITA
Sensor Type	Combined Optical and Thermistor
Detectable Medium	Smoke, Heat
Colour	White
Dimensions
Diameter	107mm
Depth (Standard inc base)	67mm
Depth (Beacon inc base)	75mm
Operating Temperature	-10°C to +50°C
Voltage Range (Loop)	24 to 42V DC
Beacon Operation
Flash Duration	5ms
Flash Interval	1s
LED Indication
Normal	50ms on / 20s interval
Fault	0.1ms on / 5s interval
Fire	50ms on / 400ms interval
IP Rating	IP21C
System Compatibility
MPS	Sita200plus V2.00 onwards
MP	Sita200plus V2.30 onwards
Duonet and Quadnet	V1 onwards
